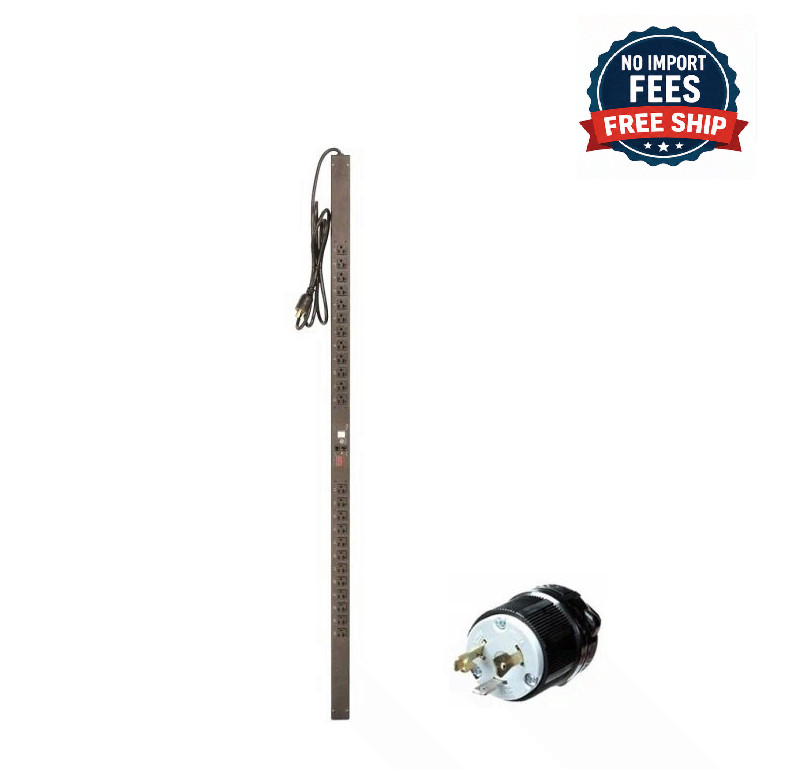

Manufacturer: APCModel Description: APC Metered Rack PDU, Zero U, 20A, 120V, (24) NEMA 5-20RCondition: Refurbished PDUPart Number: AP7830PDU Type: MeteredForm Factor: Zero U Vertical RackmountInput Voltage: 100V / 120VInput Connection: NEMA L5-20P, 20AOutput Voltage: 120VOutput Connections: (24) NEMA 5-20RLoad Capacity: 1920VANetwork Management: Built-in Ethernet – Web, Telnet, SSH & SNMPWarranty: 1 Year Full Replacement Warranty
Description: The APC AP7830 is a Metered Zero U Rack PDU featuring a 20A NEMA L5-20P input, 120V output, and (24) NEMA 5-20R outlets with 1920VA capacity. It provides real-time current monitoring through its digital display and built-in Ethernet management with Web, SNMP, SSH, and Telnet remote access. Its vertical Zero U design saves rack space, making it ideal for servers, networking equipment, and data center applications. Refurbished PDU with a 1 Year Full Replacement Warranty.
AP7830 - APC Metered Rack PDU, Zero U Specifications:
General Manufacturer APCModel AP7830Product Type Metered Rack PDUPDU Type MeteredForm Factor Vertical Rackmount / Zero UPhase Single PhaseLoad Capacity 1920VANominal Input Voltage 100V / 120VNominal Output Voltage 120VMaximum Input Current 20ARegulatory Derated Current 16ATotal Output Receptacles 24Network Management Built-inRemote Monitoring YesColor BlackCondition Refurbished PDUWarranty 1 Year Full Replacement Warranty Input Input Connection NEMA L5-20PNominal Input Voltage 100V / 120VInput Frequency 50/60 HzMaximum Input Current 20ARegulatory Derated Input Current 16ANumber of Power Cords 1Load Capacity 1920VAInput Phase Single Phase Output Nominal Output Voltage 120VOutput Connections (24) NEMA 5-20RTotal Number of Outlets 24Maximum Total Current Draw 16AMaximum Load Capacity 1920VAOutlet Type NEMA 5-20ROutlet-Level Switching NoOverload Protection No Metering & Load Monitoring Integrated Current Meter YesDigital Current Display YesAggregate Current Monitoring YesReal-Time Load Monitoring YesCurrent Measurement Amps (A)Local Load Monitoring YesRemote Load Monitoring YesHigh Load Threshold User ConfigurableLow Load Threshold User ConfigurableOverload Alarm YesLoad Warning YesStatus Indicators Green / Yellow / RedDisplay Orientation ReversibleReset Switch YesReset Switch Effect Does Not Interrupt Power to Outlets Communications & Management Network Interface Built-in Ethernet PortEthernet Interface 10/100 EthernetNetwork Management Built-inRemote Monitoring YesRemote Management YesWeb Interface YesRemote Access Web UI, SNMP, Telnet, SSHSupported Protocols HTTP, HTTPS, SNMP, SSH, TelnetHTTP SupportedHTTPS / SSL SupportedSNMP SupportedSNMP Management PowerNet MIBTelnet SupportedSSH SupportedCommand-Line Management YesControl Console YesLocal Serial Configuration YesSerial Port RJ-11 Configuration PortSerial Configuration Cable APC 940-0144TCP/IP Configuration SupportedManual IP Configuration SupportedDHCP SupportedBOOTP SupportedIP Address Configuration YesSubnet Mask Configuration YesDefault Gateway Configuration YesDNS Name Access Supported When ConfiguredFTP SupportedSCP SupportedEvent Log YesData Log YesFirmware Upgrades SupportedFirmware Transfer FTP / SCPNetwork Status LED YesEthernet Link / Activity LED YesUser Authentication Username / PasswordSecure Web Management HTTPS / SSLSecure Console Management SSHInfraStruXure Manager Support Yes User Interface & Controls Local Display Digital LED Current DisplayCurrent Display Aggregate Load CurrentStatus LEDs YesNormal Status Indicator GreenWarning Status Indicator YellowAlarm Status Indicator RedNetwork Status LED YesEthernet Link / Activity Indicator YesUser-Configurable Alarm Thresholds YesLocal Serial Console Yes Physical Rack Form Factor Zero UMounting Type Vertical RackmountMounting Orientation VerticalHeight 63.74 in (1619 mm / 161.9 cm)Width 2.20 in (56 mm / 5.6 cm)Depth 1.73 in (44 mm / 4.4 cm)Net Weight 15.04 lb (6.82 kg)Shipping Weight 17.04 lb (7.73 kg)Shipping Height 84.02 in (2134 mm / 213.4 cm)Shipping Width 5.98 in (152 mm / 15.2 cm)Shipping Depth 5.00 in (127 mm / 12.7 cm)Color BlackToolless Mounting SupportedMounting Brackets Supported Environmental Operating Temperature 23°F to 113°F (-5°C to 45°C)Operating Relative Humidity 0–95%Operating Elevation 0–10,000 ft (0–3048 m)Storage Temperature -13°F to 149°F (-25°C to 65°C)Storage Relative Humidity 0–95%Storage Elevation 0–50,000 ft (0–15,240 m) Condition & Warranty Condition Refurbished PDUWarranty 1 Year Full Replacement Warranty
