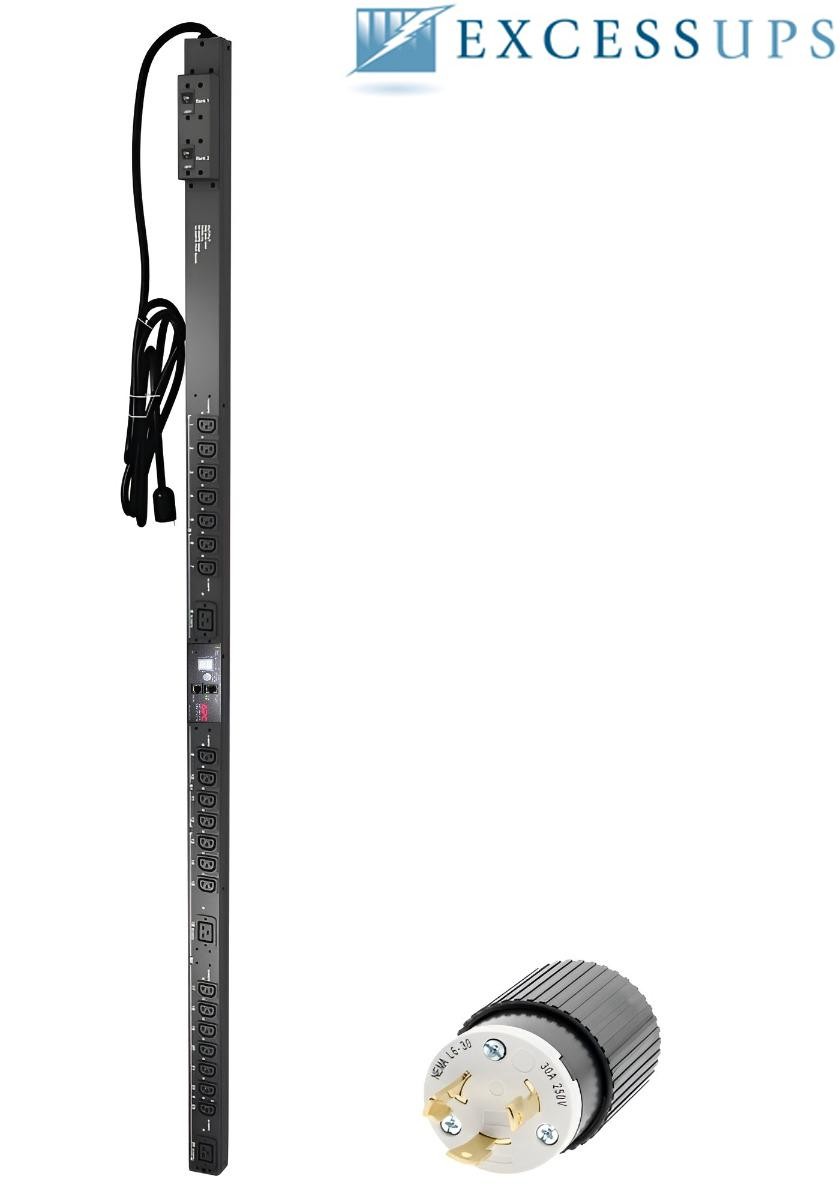

Manufacturer: APC
Model: AP7941
Description: Rack PDU, Switched, ZeroU, 30A, 200-240V, (21) C13 & (3) C19
Input: NEMA L6-30P - 200V, 208V, 230V - 30A
Output: (3) IEC 60320 C19 & (21) IEC 60320 C13
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Description: APC AP7941 Switched Rack PDU, ZeroU, 30A, 200-240V. Features a NEMA L6-30P input connection with (21) IEC C13 and (3) IEC C19 outlets for high-density rack power distribution. Provides remote individual outlet control and reboot capability through built-in network management via Web, SNMP, SSH, Telnet, and CLI interfaces. Supports real-time load monitoring, user-configurable alarms, and remote power management for servers, switches, and network equipment. Vertical 0U rackmount design saves valuable rack space while delivering up to 4992VA capacity. Professional refurbished unit backed by a 1-Year Full Replacement Warranty.
APC AP7941 Switched Rack PDU, Zero U - User Manual
AP7941 - APC Rack PDU, Switched Specifications:
Key Features
Rack Height
Toolless 0U Vertical Mounting
PDU Type
Switched
Input Phase
Single-Phase
Load Capacity
4992VA
Remote Outlet Control
Yes
Remote Reboot Capability
Yes
Network Management
Web, SNMP, SSH, Telnet, CLI
Circuit Breaker Protection
Yes
Mounting Position
Vertical Output Voltage
200V, 208V, 230V, 240V
Overload Protection
Yes
Maximum Total Current Draw
30A
Output Connections
(3) IEC 320 C19
(21) IEC 320 C13
Input
Nominal Input Voltage
200V, 208V, 230V
Input frequency
50/60 Hz
Input Connections
NEMA L6-30P
Cord Length
9.8 ft (3 m)
Acceptable Input Voltage
200-240VAC
Number of Power Cords
1
Load Capacity
4992VA
Maximum Input Current
30A
Regulatory Derated Input Current (North & Management:
Network Interface
Built-in Ethernet Port
Remote Access
Web UI, SNMP, SSH, Telnet, CLI
Outlet Management
Individual Outlet Switching & Reboot
Load Monitoring
Real-time Current Monitoring
User Alarms
Configurable Overload Notifications
Security Features
Password Protection & Secure Remote Access
Firmware Updates
Supported via Network Interface
Local Display
LED Load Status Height
70 in (1778 mm)
Maximum Width
2.2 in (56 mm)
Maximum Depth
1.7 in (44 mm)
Net Weight
16.25 lbs. (7.39 Temperature
23 - 113 °F (-5 - 45 °C)
Operating Relative Humidity
5 - 95 %
Operating Elevation
0-15000ft (0-4500meters)
Storage Temperature
-13–149°F (-25–65°C)
Storage Relative Humidity
5 - 95 %
Storage Elevation
0-50000ft & Listed, CSA, cUL, VCCI, PSE
Standards
UL 60950, FCC Part 15 Class A, ICES-003
