Manufacturer: APC

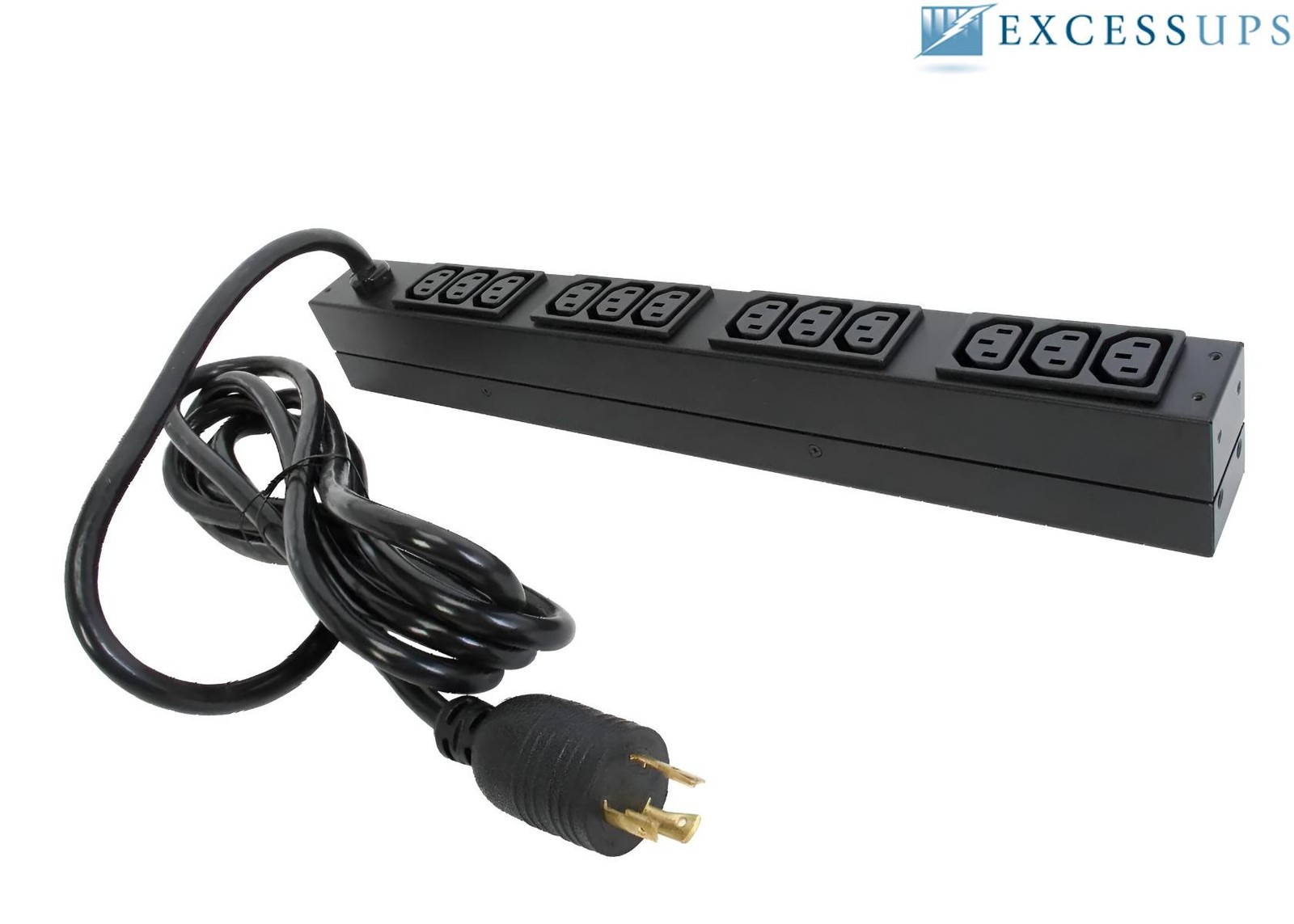

Model Description:APC Basic Rack PDU, 1U, 16A 208V, (12)C13
Condition: Refurbished
Part Number: AP9566
Output Voltage: 208V
Input Voltage:200V, 208V, 230V
Warranty:1 Year Full Replacement Warranty
AP9566 Specifications:
Key Features:
Rack Height
1U
Output Connections
(12) IEC 60320 C13
Nominal Output Voltage
208V
Nominal Input Voltage
200V, 208V, 230V
Input Connections
NEMA L6-20P
Cord Length
12.01ft (3.7 meters)
Output:
Maximum Total Current Draw
16
Input:
Input frequency
50/60 Hz
Number of Power Cords
1
Load Capacity
3328VA
Maximum Input Current
20A
Regulatory Derated Input Current (North America)
16A
Physical:
Maximum Height
1.73 inches (44mm, 4.4cm)
Maximum Width
17.6 inches (447mm, 44.7cm)
Maximum Depth
2.24 inches (57mm, 5.7cm)
Net Weight
5.51 lbs. (2.5kg)
Shipping Weight
8.02 lbs. (3.64kg)
Shipping Height
2.76 inches (70mm, 7.0cm)
Shipping Width
18.27 inches (464mm, 46.4cm)
Shipping Depth
9.02 inches (229mm, 22.9cm)
Color
Black
Environmental:
Operating Temperature
32 - 113°F (-0 - 45°C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0 - 10000ft (0 - 3048 meters)
Storage Temperature
-25 - 65°C
Storage Relative Humidity
0 - 95%
Storage Elevation
0 - 50000ft (0 - 15240 meters)
