Manufacturer: APC

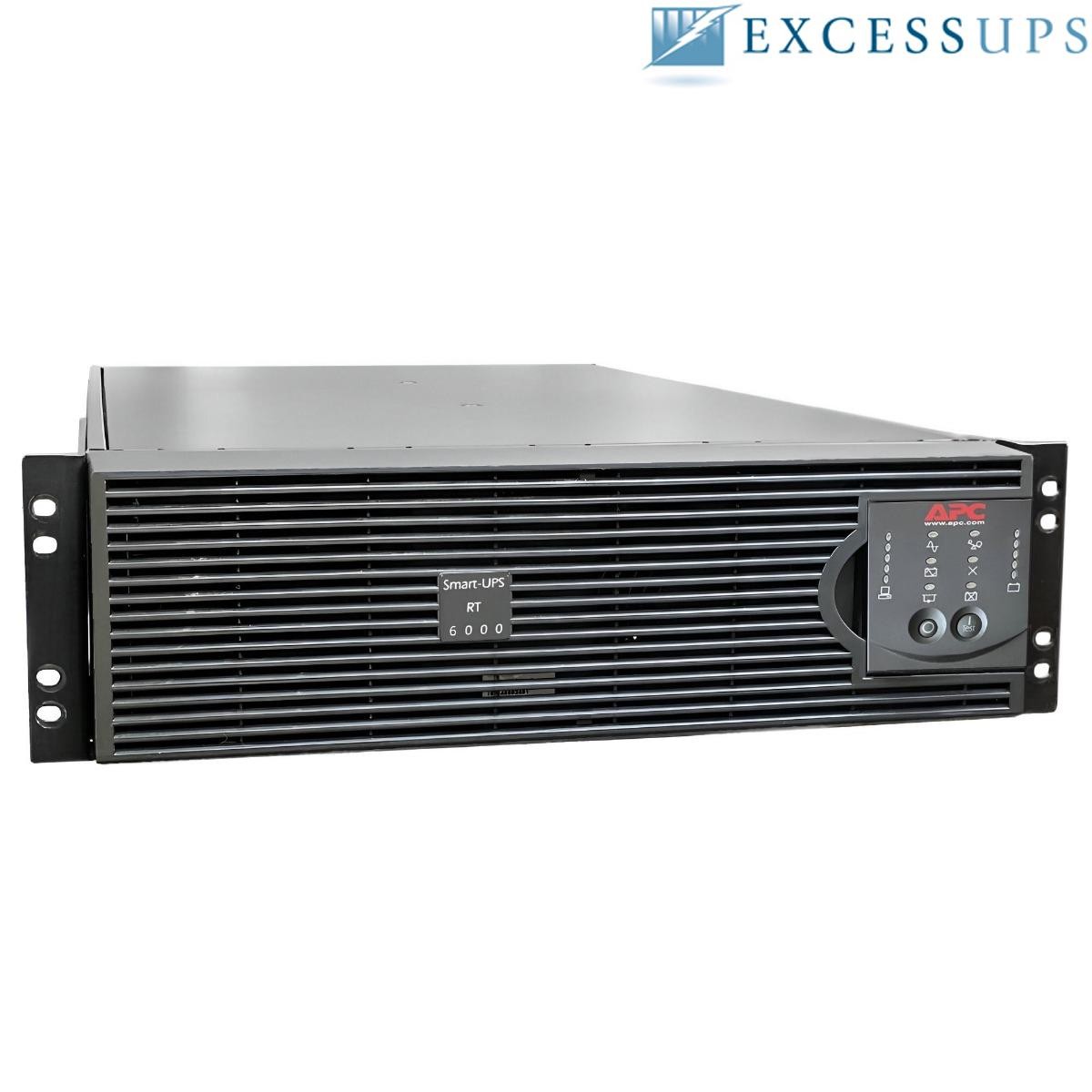

Model: APC Smart-UPS RT 6000VA 4200W, 30A, RM 3U, 200-240V, AP9619, New Batteries
Condition: New batteries, refurbished UPS
Part Number: SURT6000XLIX547
Maximum output: 4200W / 6000VA
Typical backup time at half load: 14.1 minutes (2100 Watts)
Typical backup time at full load: 4.4 minutes (4200 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 6000VA 4200W RM 3U SURT6000XLIX547 User's Manual
SURT6000XLIX547 - APC Smart-UPS RT 6000VA Specifications:Output:
Output power capacity
4.2kW / 6.0kVA
Max Configurable Power (Watts)
4.2kW / 6.0kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 Nominal Output Voltage
Efficiency at Full Load
90.0%
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(2) IEC 320 C19
(8) IEC 320 C13
Bypass
Internal Bypass (Automatic and Manual)
Input:
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
NEMA L6-30P
Cord Length
10ft
Input voltage range for main operations
160 - 280V
Input voltage range for main operations
100 - 280
Other Input Voltages
220, 240
Batteries and Runtime:
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.5hour(s)
Replacement Battery
APCRBC140
RBC Quantity
1
Runtime (full load)
4.4 min.
Runtime (half load)
14.1 min.
Physical:
Maximum Height
5.1 inches (129.54)
Maximum Width
17 inches (432 mm)
Maximum Depth
26 inches (660.4)
Rack Height
3U
Net Weight
127.73 style="line-height: 150%;">Communications & Management:
Emergency power off
Yes
Free slots
0
Pre-Install Network Card device
Network management card AP9619 with environmental monitoring
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone
alarm
Surge Protection and Filtering:
Surge energy rate
555 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping
response time : meets UL 1449
