Manufacturer: APC

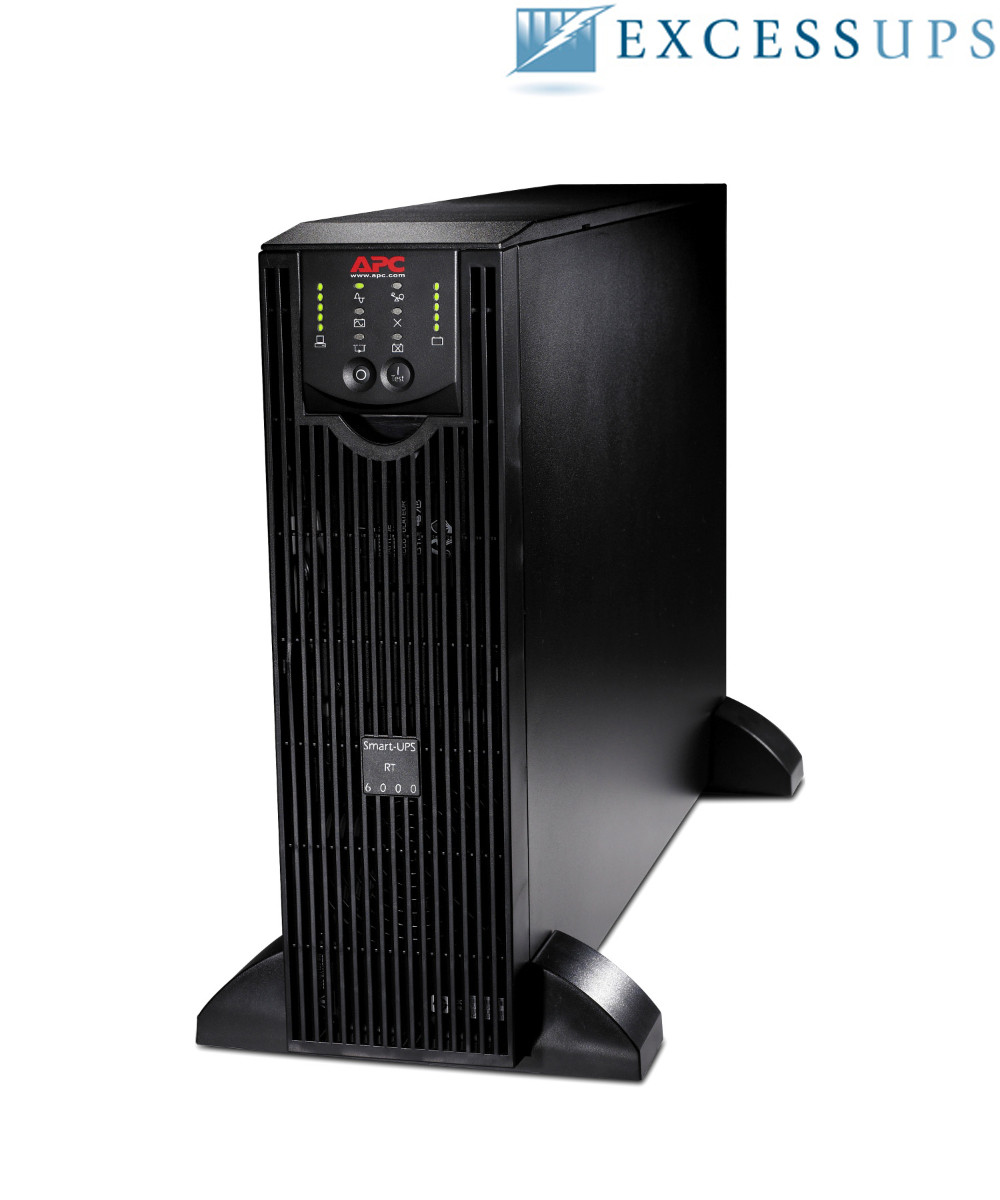

Model:APC Smart-UPS RT 6000VA 4200W Tower 220-240V
Condition: New batteries, refurbished UPS
Part Number: SURT6000XLI
Maximum output: 4200W/6000VA
Typical backup time at half load: 15.5 minutes (2100 Watts)
Typical backup time at full load: 5.1minutes (4200 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 6000VA 4200W Tower 230V SURT6000XLI Manual
SURT6000XLI - APC Smart-UPS RT 6000VA Specifications:
Main:
Main Input Voltage
230V
Other Input Voltage
220V
240V
Main Output Voltage
230V
Other Output Voltage
220V
240V
Rated Power in W
4200W
Rated Power in VA
6000VA
Output Connection Type
(8) IEC C13
(2) IEC C19
(4) IEC Jumpers
Number of Rack Unit
3U
Battery Type
Lead-acid Battery
General:
Number of Power Module Free Slots
0
Number of Power Module Filled Slots
0
Redundant
No
Physical:
Colour
Black
Height
43.2 cm
Width
13 cm
Depth
66 cm
Net Weight
54.43 kg
Mounting Location
Front
Mounting Preference
Lower
Mounting Mode
Not rack-mountable
Two Post Mountable
0
USB Compatible
No
Input:
Network Frequency
50/60 Hz +/- 5 Hz auto-sensing
Number of Input Connectors
1 hard wire 3-wire
Input Voltage Limits
160- 280V
Output:
Maximum Configurable Power in W
4200W
Harmonic Distortion
Less than 3%
Output Frequency
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Crest Factor
3:1
UPS Type
Double Conversion Online
Wave Type
Sine wave
Bypass Type
Internal Bypass (Automatic and Manual)
Maximum Configurable Power in VA
6000VA
Conformance:
Product Certifications
C-Tick
CE
CSA
GOST
UL listed
VDE
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental:
Ambient Air Temperature for Operation
0- 40°C
Relative Humidity
0- 95% non-condensing
Operating Altitude
0- 10000 ft
Ambient Air Temperature for Storage
-15- 45°C
Storage Relative Humidity
0- 95% non-condensing
Storage Altitude
0.00- 15240.00 m
Acoustic Level
55 dBA
Heat Dissipation
1221 Btu/h
IP Degree of Protection
IP20
Batteries & Runtime:
Number of Battery Filled Slots
2
Battery Recharge Time
2.5 h
Number of Battery Replacement Quantity
1
Additional Information
Configurable for 220: 230 or 240 Nominal Output Voltage
Battery Charger Power
421 W rated
Battery Power in VAH
1056 VAh Runtime
Battery Life
3- 5 year(s)
Replacement Battery
APCRBC140
SRT192BP2US
SRT192RMBPUS
SURT10000XLIX710
SURT192XLBP-IN
Battery Option
SURT192XLBP 1 2304 VAh
SURT192XLBP 2 3880 VAh
SURT192XLBP 3 5472 VAh
SURT192XLBP 4 7056 VAh
SURT192XLBP 5 8640 VAh
SURT192XLBP 6 10714 VAh
SURT192XLBP 8 14861 VAh
SURT192XLBP 10 19008 VAh
Extended Runtime
1
Communications & Management:
Free Slots
0
Preinstalled Device
Network Management Card 3 with Environmental Monitoring
Alarm
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Emergency Power Off
Yes
Surge Protection and Filtering:
Surge Energy Rate
555 J
Noise Suppression
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449
