Manufacturer: APC

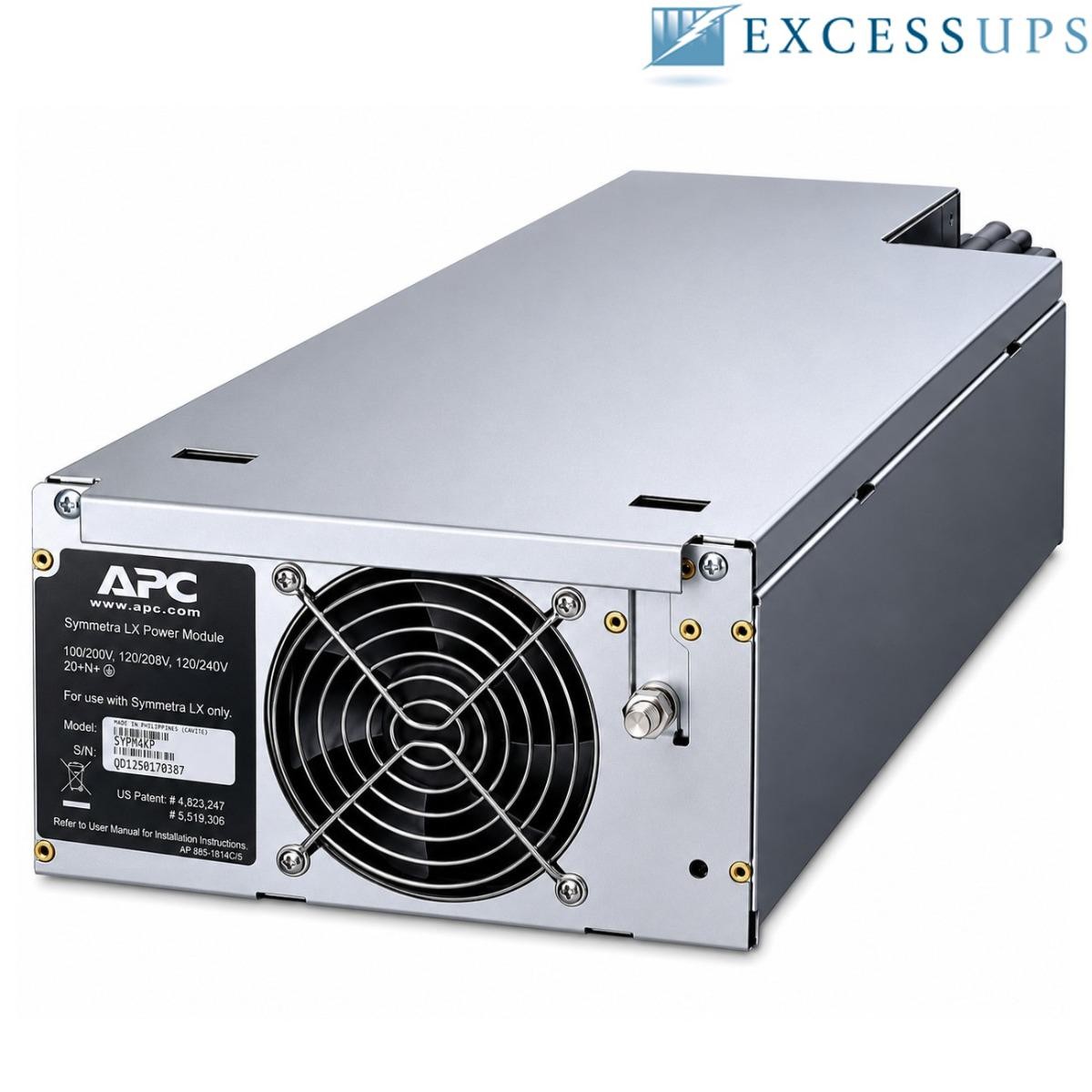

Model: APC Symmetra LX 4kVA Power Module - SYPM4KP
Condition: Refurbished with a 1 year replacement warranty
Part Number: SYPM4KP
Warranty: 1 Year Full Replacement Warranty
Includes: SYPM4KP 4kVA Power Module
APC Symmetra SYPM4KP Power Module 200/208V User Manual
Specifications for APC Symmetra SYPM4KP Power Module:
Main:
Main Input Voltage
200V
208V
Other Input Voltage
240V
Main Output Voltage
Other Output Voltage
240V
Kw Rating
3200W
Rated Power in VA
4000VA
Output Connector Type
Hard Wire 4-wire (2PH+N+G) 1
Number of Rack Unit
0U
Number of Cables
1
Batteries & Runtime:
Included Battery Modules
0
Battery Slots Empty
0
Additional Information
Configurable for 120/208 or 120/240 output in (15 cm)
Width
9.84 in (25 cm)
Depth
22.24 in (56.5 cm)
Net Weight
33.07 lb(US) (15 kg)
Mounting Preference
No Preference
Mounting Mode
Not rack-mountable
USB Compatible
45...65 Hz auto-sensing
Efficiency at Full Load
155...276V
Input Power Factor at Full Load
3200W
Harmonic Distortion
Less than 5 % at full load
Output Frequency (sync to mains)
47...63 Hz sync to mains
50 Hz +/- 0.1 % for 50 Hz nominal not synced
60 Hz +/- 0.1 % for 60 Hz nominal not synced
Crest Factor
Up to 5 : 1
Topology
Double Conversion Online
Waveform Type
Sine Part 15 class A
UL Air Temperature for Operation
32…104 °F (0…40 °C)
32…104 °F (0…40 °C) Relative Humidity
0…95%
Operating Altitude
0...10000 ft
Ambient Air Temperature for Storage
5…113 °F (-15…45 °C)
Storage Relative Humidity
0…95%
Storage Altitude
0…15000 ft (0.00…4572.00 m)
Acoustic Level
62 dBA
