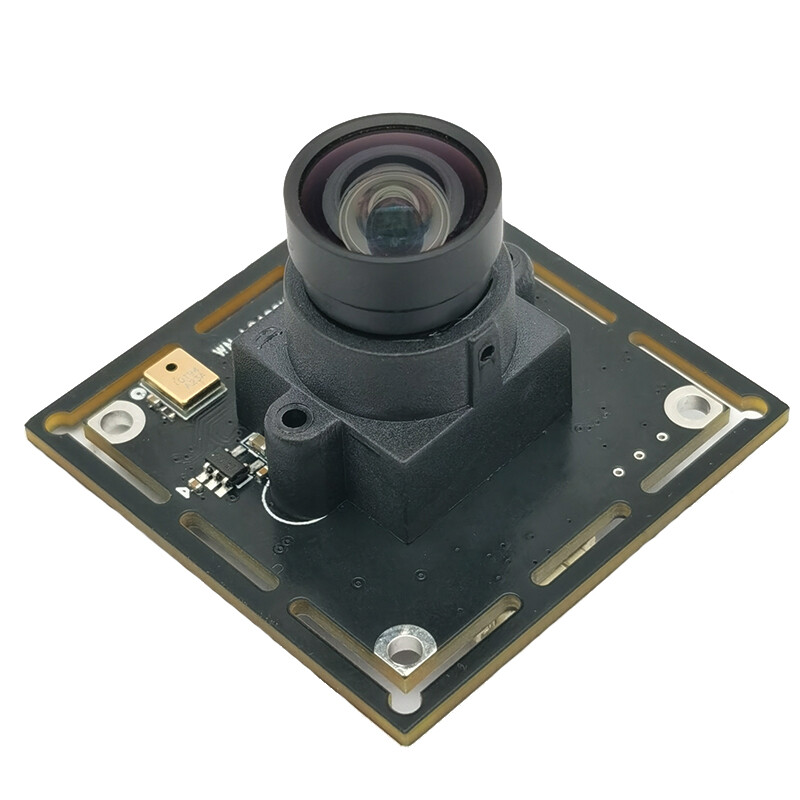

AR0234 Sensor 2MP HD Global Shutter 1080P Fixed Focus USB Camera Module
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
AR0234 Sensor 2MP HD Global Shutter 1080P Fixed Focus USB Camera Module
Price: CN $79.99
2MP1080P USB2.0Camera Modulethis 2MP USB camera module adopts the 1/2.6-inch CMOS image sensor with maximum resolution of 1920H×1080Vat 90fps frame rate. Mini size, 94.8° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters

Product Name

2MP 1080P USB2.0 Camera Module

Product Code

WN-L2406K397L

Module Size

38*38mm

Image Sensor

1/2.6-Inch CMOS Sensor

Max. Resolution

1920 H x 1080 V

Pixel Size

3*3μm

Output Format

MJPEG, YUY2

Field of View

94.8°

Lens

EFL:3.24 F/NO:2.7, 4G2P+650NM IR

Focus Mode

Fixed Focus/ Manual Focus

Shutter Mode

Global Shutter

Output & Power Supply

High Speed USB2.0

Interface

5PIN 1.25mm Connector

Controllable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

Supported OS

UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.

Connection Cable

Default1.0 Meter USB Cable

Supported Resolutions and Frame Rates

Formats

Resolutions

Frame Rates

MJPEG

1920x1080

90FPS

1280x720

160FPS

640x480

160FPS

YUY2

1920x1080

5FPS

1280x720

7FPS

640X480

30FPS

Working Conditions

Working Voltage

DC 5V

Working Current

180mA

Working Temperature

-20°C ~ 60°C

Storage Temperature

-20°C ~ 85°C

Humidity

80 ~85%
