Dear customers:
This is Anny's shop, welcome to purchase our items, we will provide excellent products and professional service to you.
We promised all the motherboards are carefully tested, 100% working, No DEFECT, NO FAULT, NO DOA, and shipped in a safe package.
If any problem please contact us, because of the time difference, we may reply you late for hours, please be patient to wait, we must reply you in 12 hours, and give you safisfied solution.
Warranty:
Our item warranty is 90 days, if any problem, we can replace, exchange or refund. But please make sure the item was from me, because our items have warranty mark.
Warm notes:
1. Please DO NOT use fake memory, because most of genuine band motherboards can't support that.
2. Please DO NOT use single-side memory, because some motherboards can't support that.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

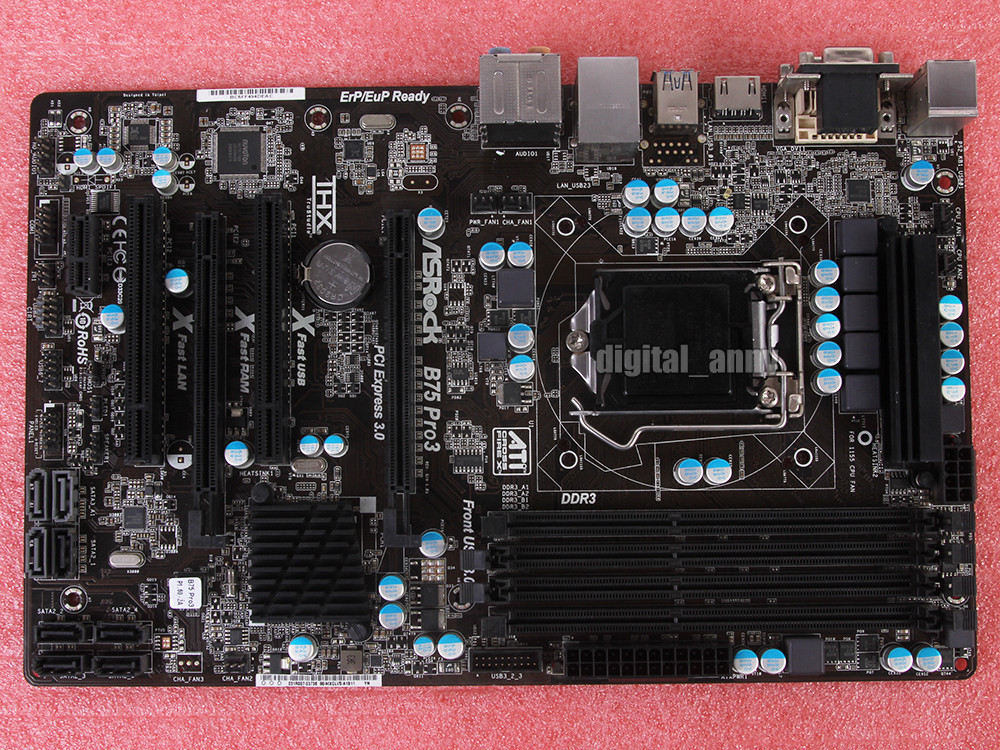

Official specification:

CPU

- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
- 4 + 1 Power Phase Design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Hyper-Threading Technology

Chipset

- Intel® B75
- Supports Intel® Small Business Advantage
- Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU

*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

Memory

- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.

BIOS

- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment

Graphics

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU
- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Slots

- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
- 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports AMD Quad CrossFireX™ and CrossFireX™

*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.

SATA3

- 1 x SATA3 6.0 Gb/s connector by Intel® B75, supports NCQ, AHCI and Hot Plug functions
- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions

USB 3.0

- 2 x Rear USB 3.1 Gen1 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector

- 5 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 3 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

Rear Panel I/O

I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature

- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock On/Off Play Technology
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock Dehumidifier Function
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- ATX Form Factor: 12.0-in x 7.6-in, 30.5 cm x 19.3 cm
- All Solid Capacitor design

OS

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit

*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.

Certifications

- FCC, CE
- ErP/EuP Ready (ErP/EuP ready power supply is required)

Accessories:
1 x motherboard
2 x SATA cables
Shipping & Handling:
1. Usually we need 1-2 days to process the items and prepare to ship it. According to your country, we will use the DHL, EMS, UPS, TNT, DPEX expedited shipping, the tracking number can be offered and tracked.
2. The shipping fees have included the local handing and packaging cost. We will send your item base on your address showed on order page. If your address is P.O.BOX, please give us physical address.
3. We can not mark item as "gift", because the custom office and international government regulations prohibit such behavior, thank you for your understanding.
Custom tax:
1. Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
2. Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer service:
Dear buyers, we sincerely do business with you. If you satisfy with our service and products, please leave us a good response. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 12 hours, and do our best to help you solve any problems.
Return policy:
Dear buyer, every item is very valuable to us, please know that we won't send bad products, but in case you need replace, exchange or refund, please read folloing policy.
1. Refund. Please send back the item in original package with all the accessories. When you shipped back, please give us tracking number. We'll refund all your money, as soon as got the returned package.
Please note if the package was loss, we only can refund you the shipping cost you paid. If the accessories was not complete, we need the compensation of the lost parts. If the mobo returned with wilful damage, we need the compensation.
2. Replace. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
Please note if the package was loss, we don't resend you any more, then refund you the shipping cost you paid. If the mobo returned with wilful damage, we need the compensation.
Thank you for viewing
