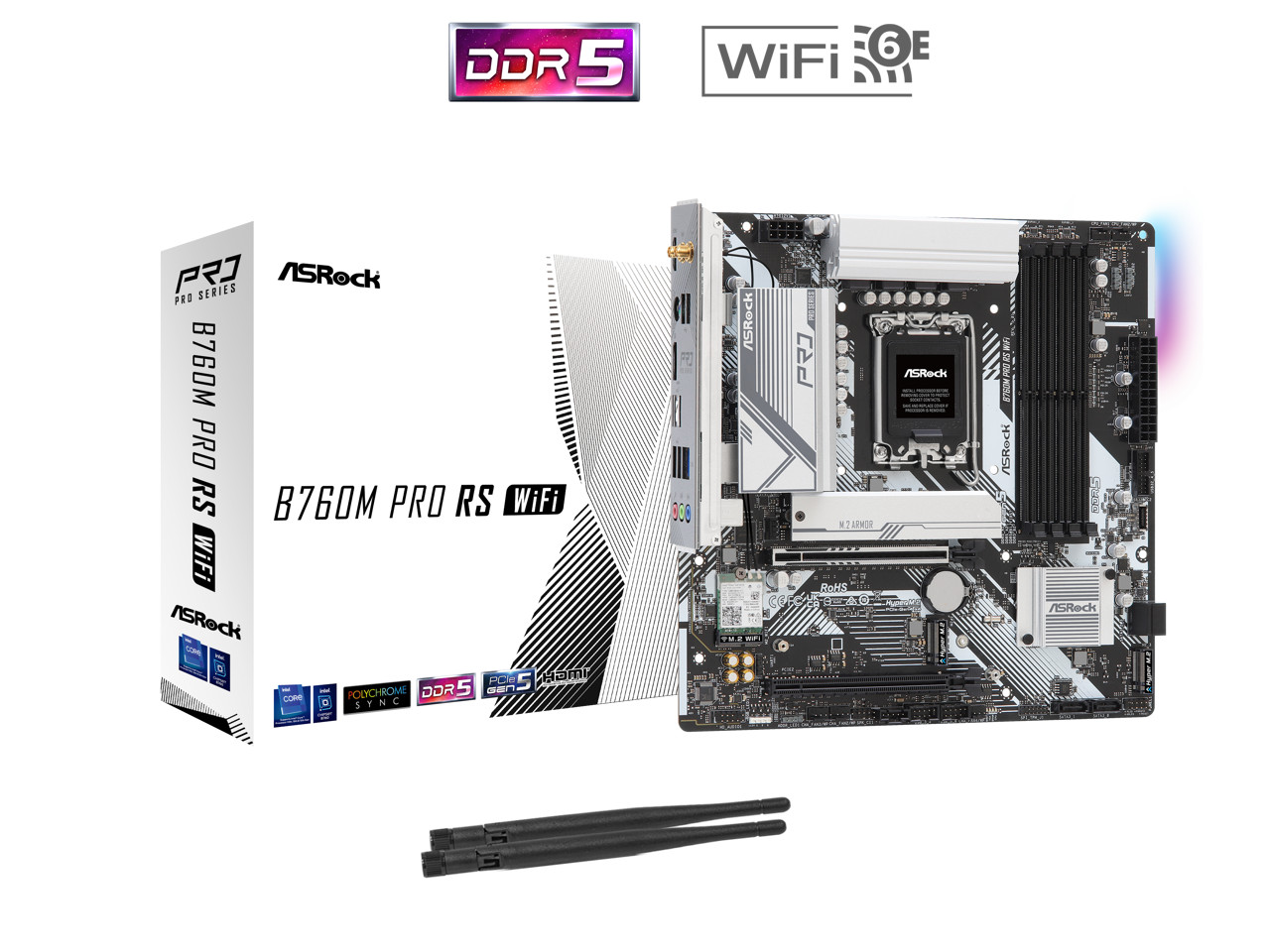

Learn more about ASRock B760M PRO RS WiFiModelBrandASRockModelB760M PRO RS WiFiSupported CPUCPU Socket TypeLGA 1700CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)ChipsetsChipsetIntel B760MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardUp to 7200+(OC)Maximum Memory Supported256GBChannel SupportedDual ChannelMemory FeatureSupports DDR5 non-ECC, un-buffered memory up to 7200+(OC)**1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.Expansion SlotsPCI Express 5.0 x161 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*PCI Express 3.0 x161 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode** Supports NVMe SSD as boot disksStorage DevicesSerial ATA (SATA)4 x SATA 6Gb/sM.2CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode** Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disksSATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1 ChannelsOnboard LANMax LAN Speed2.5GbpsWireless LANWi-Fi 802.11 axBluetoothBluetooth 5.3Rear Panel PortsBack I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 HeaderOther Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.Software FeatureBIOS Feature128Mb AMI UEFI Legal BIOS with GUI supportSoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- Killer Control Center
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID InstallerPhysical SpecForm FactorMicro ATXDimensions (W x L)9.6" x 9.6"Power Pin24 PinFeaturesFeaturesSuperb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, Killer 802.11axe Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status CheckerPackagingPackage Contents1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 SocketShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
