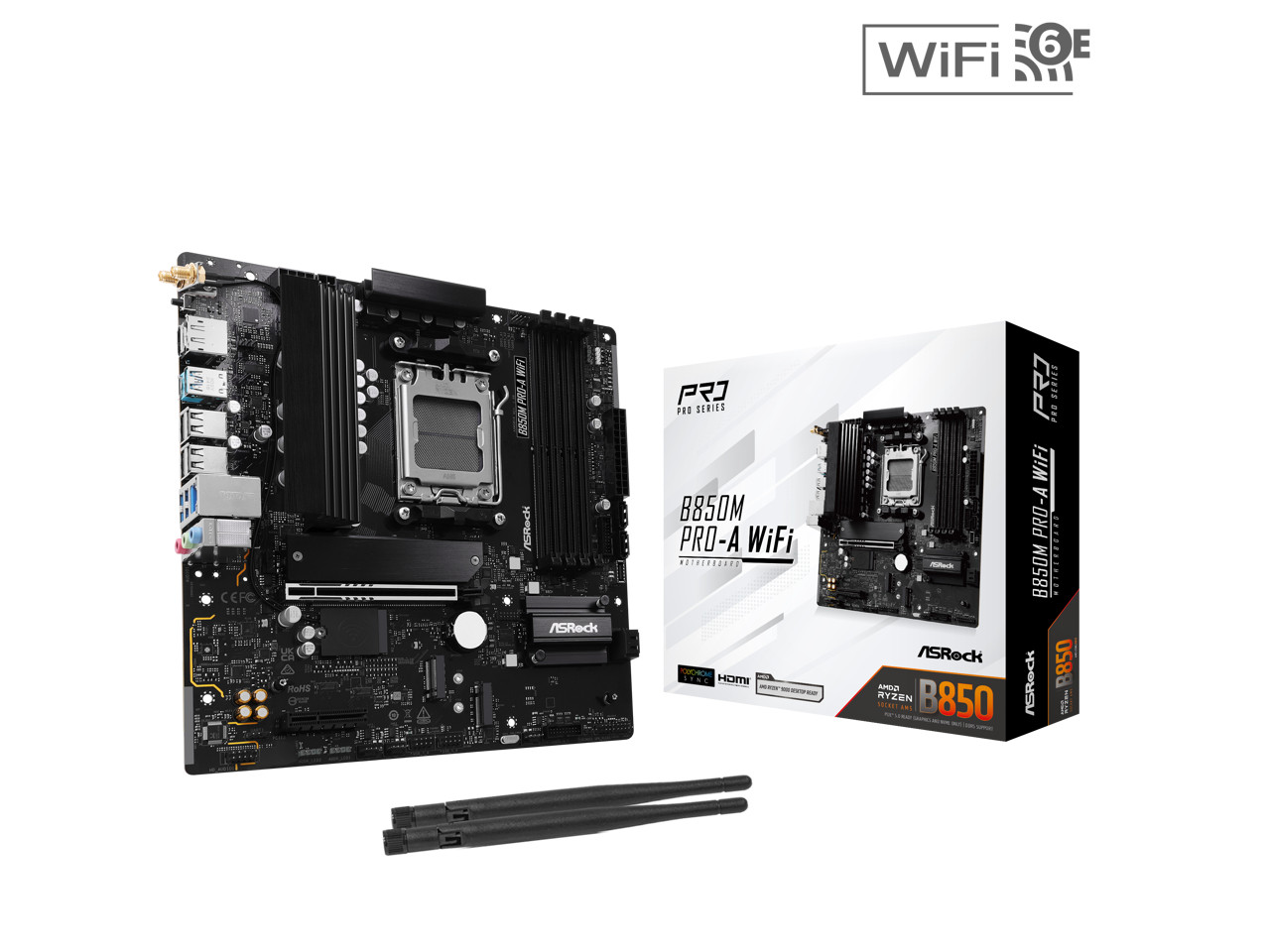

Learn more about ASRock B850M PRO-A WIFIModelBrandASRockModelB850M PRO-A WIFISupported CPUCPU Socket TypeAM5CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 SeriesChipsetsChipsetAMD B850MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardUp to 8000+(OC)Maximum Memory Supported256GBChannel SupportedDual ChannelECC SupportedYesBuffer SupportedUn-bufferedExpansion SlotsPCI Express 5.0 x161 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode** PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
* If M2_3 is occupied, PCIE2 will be disabled.
* Supports NVMe SSD as boot disks
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)PCI Express 4.0 x161 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*Storage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode** Supports NVMe SSD as boot disks
* M2_1 is the first priority for M.2 installation.
* M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
* M2_3 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
* If M2_3 is occupied, PCIE2 will be disabled.SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10Onboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1 ChannelsOnboard LANLAN ChipsetDragon RTL8125BGMax LAN Speed2.5GbpsWireless LANWi-Fi 802.11 axBluetoothBluetooth 5.2Rear Panel PortsBack I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 HeaderOther Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
*** CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.Physical SpecForm FactorMicro ATXDimensions (W x L)9.6" x 9.6"Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)Software FeatureBIOS Feature256Mb AMI UEFI Legal BIOS with GUI supportSoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant FlashWindows 11Windows OS 10 64-bit / 11 64-bitFeaturesFeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status CheckerPackagingPackage Contents1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz AntennasShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
