Motherboard Description:

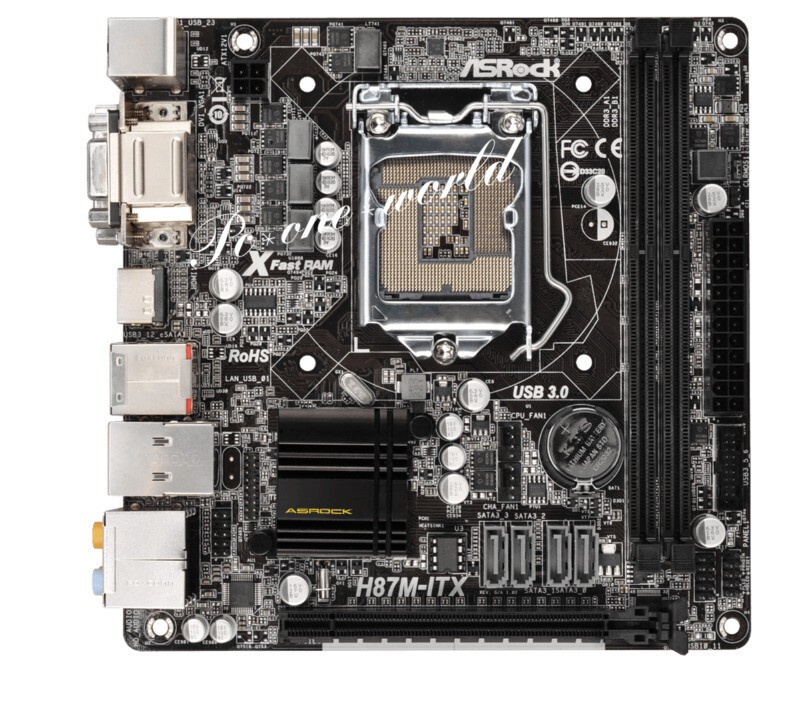

ASRock H87M-ITX Motherboard Intel H87 LGA 1150 DDR3 DIMM USB3.0 HDMI Please DO NOT use fake memory, because the motherboard maybe can't support.

Please DO NOT use single-side memory, because some motherboards can't support.

Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.

Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package Included:

1 * motherboard

2 * sata cable

1 x I/O back panel

Product information

CPU

- Supports New 4th Generation and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)

- 4-phase power supply design

- Supports Intel® Turbo Boost 2.0 Technology

Chipset

-Intel® H87

- Supports Intel® Small Business Tongrui 2.0

RAM

- Dual channel DDR3/DDR3L memory technology

- 2 x DDR3/DDR3L memory slots

- Supports DDR3/DDR3L 1600/1333/1066 (non-ECC), un-buffered memory

- Maximum system memory capacity: 16GB*

- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 technology

*Due to operating system limitations, the actual memory that can be used under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this limitation.

BIOS

- Multilingual 64Mb AMI UEFI Legal BIOS with GUI support

- Compliant with ACPI 1.1, supports Wake Up Events

- Support SMBIOS 2.3.1

- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multifunction Regulator

Onboard graphics card

- Supports Intel® HD Graphics built-in visual technologies: Intel® High Speed Sync Video Technology (AVC, MVC (S3D) and MPEG-2 Full HW Encode1), Intel® InTru™ 3D, Intel® Clear Video Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600

- Pixel Shader 5.0, DirectX 11.1

- Maximum shared display memory 512MB*

- Three display output options: D-Sub, DVI-D and HDMI

- Supports simultaneous output of three monitors

- Support HDMI technology, maximum resolution up to 1920x1200 @ 60Hz

- Support DVI-D, maximum resolution up to 1920x1200 @ 60Hz

- Supports D-Sub, up to 1920x1200 @ 60Hz

- Supports HDMI port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (Requires HDMI Compatible Display)

- Supports HDCP function via DVI-D and HDMI ports

- Supports 1080p Blu-ray Disc (BD) HD playback via DVI-D and HDMI ports

*The size of shared display memory depends on the operating system.

**Only processors with built-in GPU can support Intel® HD Graphics built-in visual technology and display output.

***Due to chipset limitations, Blu-ray playback with Intel® HD Graphics only supports Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D only supports Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Sound effect

- 7.1 channel high definition audio with content protection function (Realtek ALC892 audio codec)

- Support high quality Blu-ray sound

local area network

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Qualcomm® Atheros® AR8171

- Supports Qualcomm® Atheros® Secure Wake-on-Internet Technology

- Support Wake-On-LAN function

- Supports Energy Efficient Ethernet 802.3az

- Support PXE

Expansion slot

- 1 x PCI Express 3.0 x16 slot

Storage

- 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

- 1 x eSATA port, support NCQ, AHCI and hot plug

Onboard interface

- 1 x Chassis open warning function header

- 1 x TPM header

- 1 x CPU Fan Connector ((4-pin))

- 1 x Chassis Fan Connector ((4-pin))

- 1 x 24-pin ATX power connector

- 1 x 4-pin 12V power connector

- 1 x front panel audio jack

- 1 x USB 2.0 header (supports 2 USB 2.0 ports)

- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

I/O port on the rear panel

I/O panel

- 1 x PS/2 keyboard/mouse port

- 1 x D-Sub connector

- 1 x DVI-D port

- 1 x HDMI port

- 1 x Optical SPDIF digital audio output port

- 1 x eSATA port

- 2 x USB 2.0 ports

- 4 x USB 3.1 Gen1 ports

- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)

- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic

Exclusive features

- ASRock App Market

- ASRock A-Tuning

- ASRock Instant Flash

- ASRock APP Charger

- ASRock Extreme Speed USB

- ASRock Extreme Internet

- ASRock Extreme Memory

- ASRock Crashless BIOS

- ASRock Network Goalkeeper (OMG)

- ASRock Cloud Upgrade

- ASRock System Browser

- ASRock Cloud Hospital

- ASRock whole machine intelligent dehumidification

- ASRock Simple Array

- ASRock Cloud Drive

- ASRock Bright UEFI

- ASRock Flash Start

- ASRock reboot to UEFI

- ASRock Full Time Play Technology

- ASRock U-Pass

- ASRock Inverter Fan

- Peace of mind overclocking technology (Hybrid Booster):

- ASRock Universal CPU Overheating Protection Technology

- B.F.G., Boot Failure Recovery Technology

- Good night indicator

Form Factor
