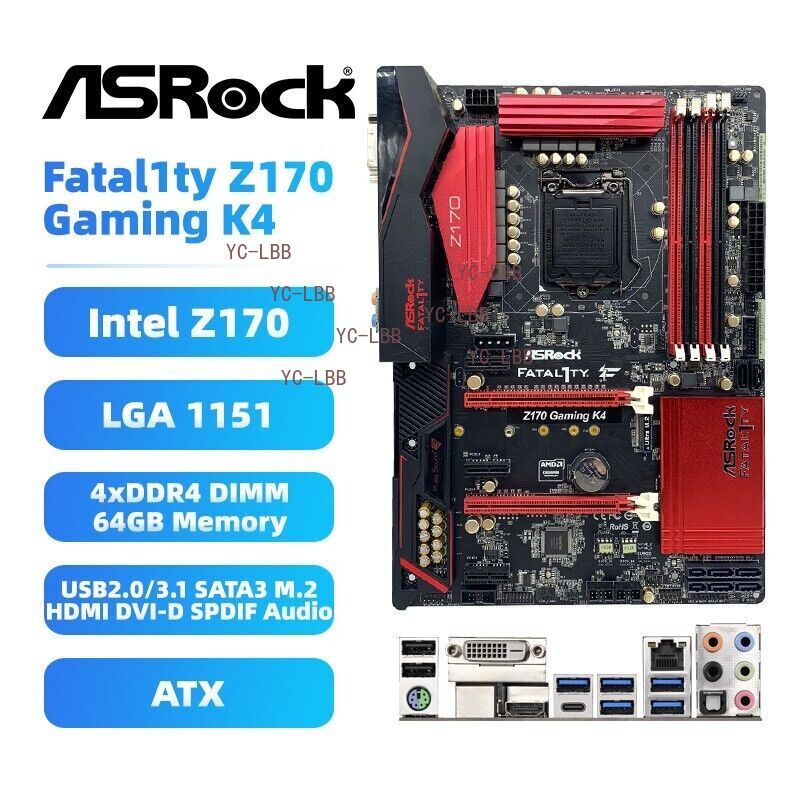

ASRock LGA1151 Motherboard Fatal1ty Z170 Gaming K4 Intel Z170 DDR4 for 6/7th Intel Core CPU
Note: The models of ASRock brand Intel chipsets sold in the store are: Intel H110/Intel J3710/Intel X99/Intel Z97/Intel D1520/Intel B85/Intel J3160/Intel J2900/Intel J1900/Intel Z87/Intel H170/Intel Z390/Intel Z170/Intel Z270/Intel B150/Intel Z370/Intel H61/Intel H77/Intel H97/Intel B75/Intel H81/Intel B365/Intel N3050/Intel J3455/Intel J4205/Intel X299/Intel B360/Intel H67/Intel H270/Intel C232/Intel Z590/Intel J4005/Intel N3150/Intel H310/Intel B560/Intel H570/Intel B460/Intel H410/Intel Z490/Intel H470/Intel J4105/Intel H510/Intel G41/Intel B660/Intel J1800/Intel H370/Intel W480/Intel 1900/Intel J3060. All kinds of mid-range, high-end and low-end motherboards and server motherboards are sold, and the models are constantly being updated. Some models are in large stock, and everyone is welcome to buy. If you need a large quantity, please contact customer service for a discount.
Compatible Model:
ASROCK Fatal1ty Z170 GAMING K4 Features: - Original quality not include retail box or parts. - 100% tested working before shipping. - updated the newest BIOS. - Without CMOS battery for safe sending. - Please check and confirm the model of your device before purchase. - We provide 90 days warranty, the buyer pays the postage of the returned package.
CPU - Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151) - Digi Power design - 10 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking
Chipset - Intel® Z170
Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. Please refer to Memory Support List on ASRock's website for more information. 3866+(OC) memory frequency can only be achieved when a single memory module is installed (Single channel memory).
BIOS - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment
Graphics - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1024MB* - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *The size of maximum shared memory may vary from different operating systems. **Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Supports Purity Sound™ 3 - Nichicon Fine Gold Series Audio Caps - 115dB SNR DAC with differential amplifier - TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Supports DTS Connect
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Killer™ E2400 Series - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Slots - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ - 15μ Gold Contact in VGA PCIe Slot (PCIE2) *Supports NVMe SSD as boot disks
Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug - 2 x SATA Express 10 Gb/s Connectors* - 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled. Support to be announced **Supports ASRock U.2 Kit Supports NVMe SSD as boot disks
Connector - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x PCIe Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) *CPU_FAN1 and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) - 5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, XSplit, Killer Network Manager
Hardware Monitor - CPU, Chassis temperature sensing - CPU, Chassis Fan Tachometer - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU, Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA
Form Factor - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
OS - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions. For the updated Windows® 10 driver, please visit ASRock's website for details.
