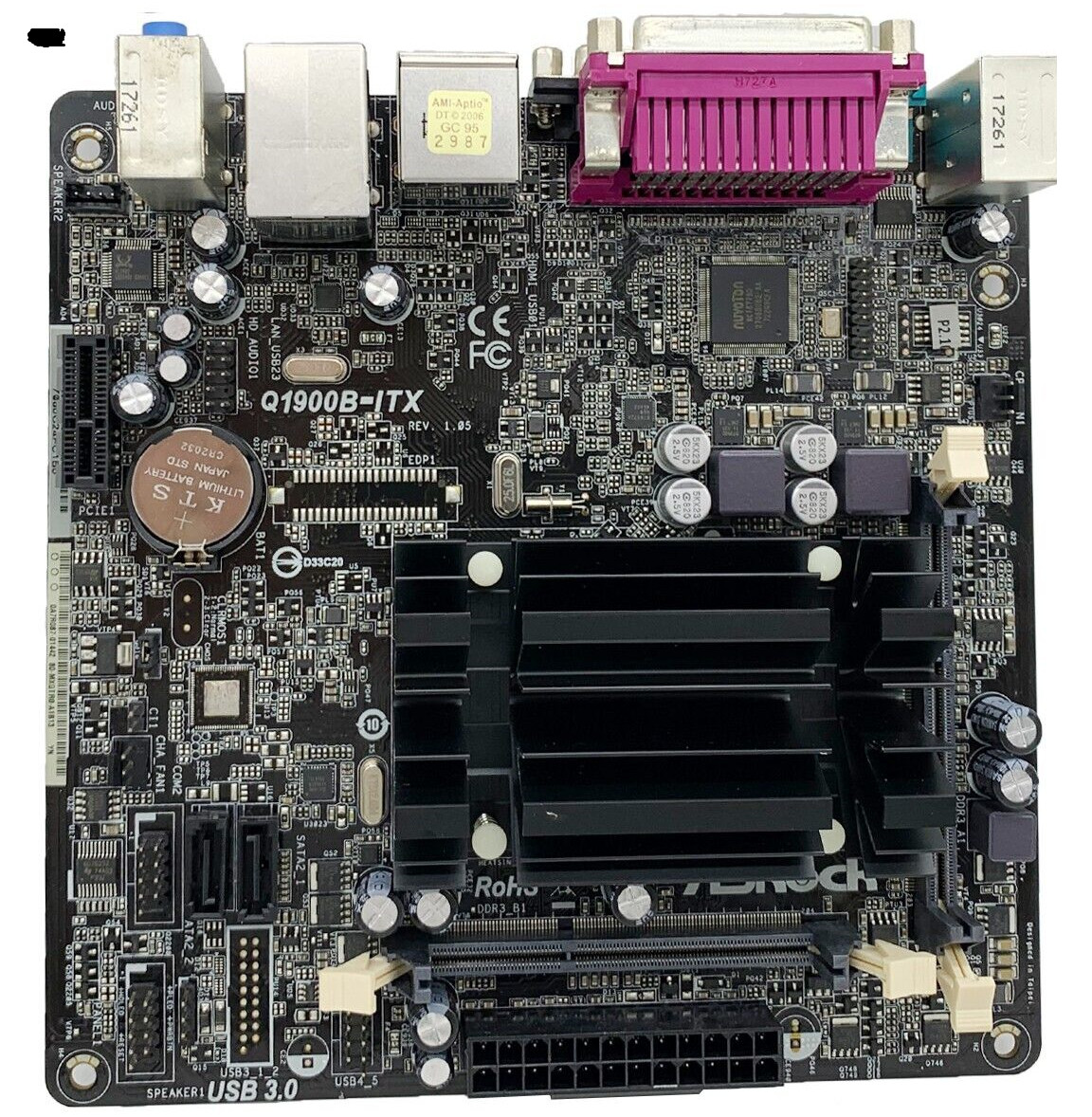

ASRock Q1900B-ITX Motherboard Mini-ITX Intel J1900 SATA2 HDMI Audio
Set up new office, never used, See Pictures!!!sale for Mainboard ONLY. If need CASE and RAM, pls let me know.Shipping 10-30 business days to United States
ASRock Q1900B-ITX Motherboard Mini-ITX Intel J1900 SATA2 HDMI Audio
Note:If the product is damaged in transportation or has quality problems and needs to be returned, the freight shall be borne by the seller. If the product is damaged by the buyer, the buyer will bear the expenses incurred when it needs to be returned or replaced.
CompatibleModel:ASRock Q1900B-ITXFeatures:- Original quality not include retail box or parts.- NEW other, set up new system BUT NEVER USED.- Free OEM I/O shield as a gift, updated the newest BIOS.- Without CMOS battery for safe sending.- Please check and confirm the model of your device before purchase.- We provide 90 days warranty, the buyer pays the postage of the returned package.Memory- Dual Channel DDR3/DDR3L Memory Technology- 2 x DDR3/DDR3L SO-DIMM Slots- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory- Max. capacity of system memory: 16GB**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.**If only one SO-DIMM module is installed, please install it into DDR3_A1.
BIOS- 64Mb AMI UEFI Legal BIOS with GUI support- Supports Plug and Play- ACPI 5.0 Compliant wake up events- Supports jumperfree- SMBIOS 2.7 Support
Graphics- Intel 7th generation (Gen 7) graphics- DirectX 11.0, Pixel Shader 5.0- Dual graphics output: Support HDMI and D-Sub ports by independent display controllers- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with HDMI Port- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)- Supports Surge Protection (ASRock Full Spike Protection)
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111GR- Supports Wake-On-WAN- Supports Wake-On-LAN- Supports Lightning/ESD Protection (ASRock Full Spike Protection)- Supports LAN Cable Detection- Supports Energy Efficient Ethernet 802.3az- Supports PXE
Slots- 1 x PCI Express 2.0 x1 Slot
Storage- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector- 1 x 3W Audio AMP Output Wafer Header- 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion Header- 1 x CPU Fan Connector (3-pin)- 1 x Chassis Fan Connector (3-pin)- 1 x 24 pin ATX Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O- 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x Parallel Port (ECP/EPP Support)- 1 x Serial Port: COM1- 1 x D-Sub Port- 1 x HDMI Port- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))- 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Hardware Monitor- CPU, Chassis temperature sensing- CPU, Chassis Fan Tachometer- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU, Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor- Mini-ITX Form Factor- Solid Capacitor for CPU power- High Density Glass Fabric PCB
OS- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Package Included:
1PCSASRock Q1900B-ITX Motherboard Mini-ITX
