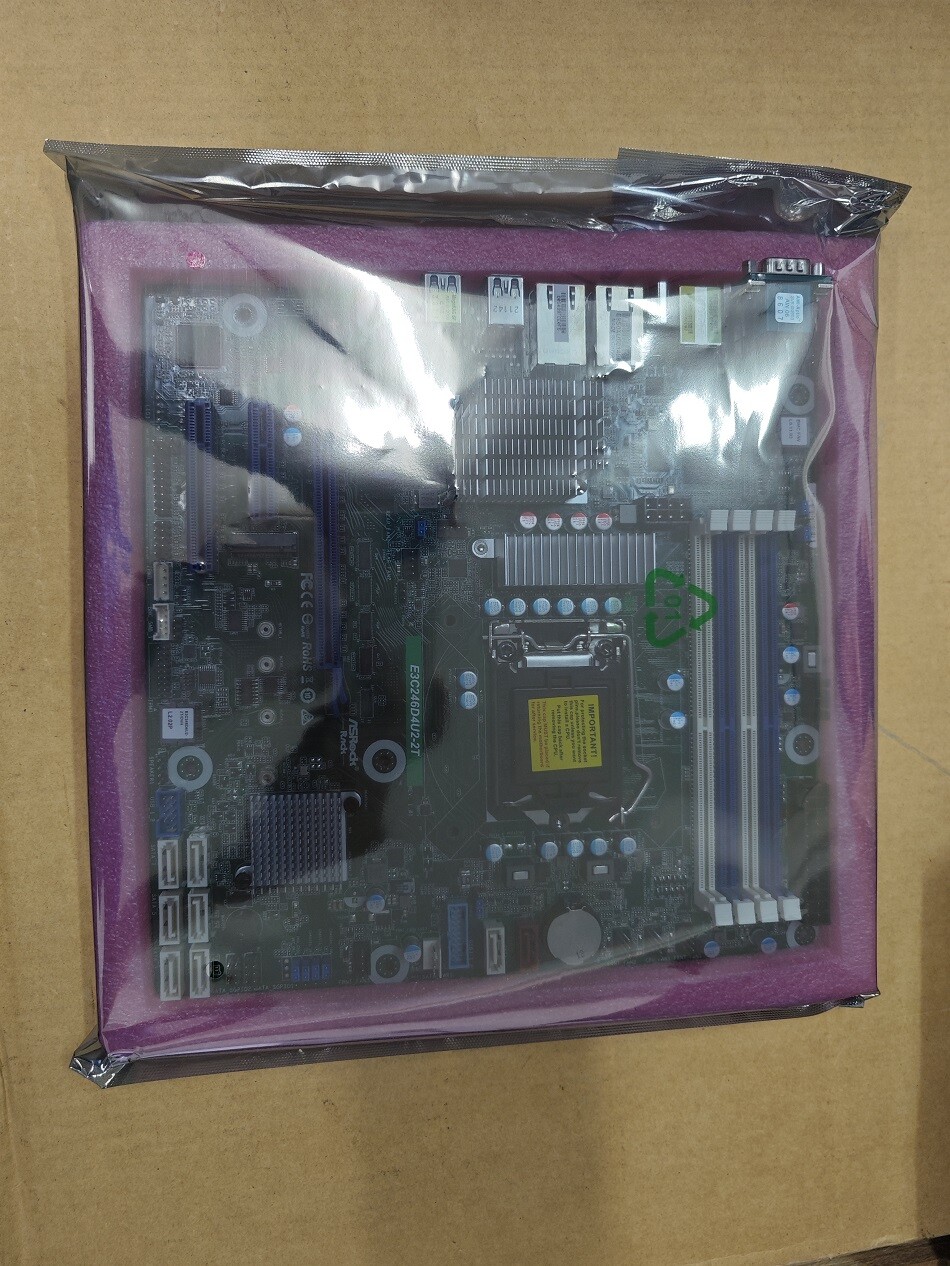

SpecificationsPhysical StatusForm FactormATXDimensions9.6'' x 9.6'' (244 mm x244 mm)Processor SystemCPUSupports Intel®Xeon®E-2100/E-2200 Series ProcessorsSocketSingle Socket LGA 1151Thermal Design PowerMax. 95WChipsetIntel®C246System MemorySupported DIMM Quantity4 DIMM slotsSupported TypeDual Channel memory technology
DDR4 288-pin ECC/non-ECC UDIMMMax. Capacity per DIMM32GBMax. DIMM FrequencyECC/Non-ECC UDIMM: 2666/2400/2133 MHzVoltage1.2VPCIe Expansion Slots (SLOT7 close to CPU)PCIe x 16- SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU]PCIe x 8- SLOT4: PCIe3.0 x8 [CPU]PCIe x 4- SLOT5: PCIe3.0 x4 [PCH]**Only supported for E3C246D4U2-2L2TPCIe x 1- SLOT7: PCIe3.0 x1 [PCH]Other PCIe Expansion ConnectorsM.2 slot- (2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3)SATA/SAS StoragePCH Built-in Storage- 8 x SATA3 6Gb/s (SATA0-7, SATA_0 supports SATA DOM)
- 7 x SATA3 6Gb/s (SATA1-7) and 1 x M.2 SSD SATA connected*

*The M.2 slot (M2_1) is shared with the SATA_0 connector. When M2_1 is populated with a M.2 SATA3 module, the Pin 7 of SATA_0 is disabled.EthernetInterface- 10000/1000 /100 MbpsAdditional GbE Controller- 2 x RJ45 10G base-T by Intel®X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSIServer ManagementBMC Controller- ASPEED AST2500IPMI Dedicated GLAN- 1 x Realtek RTL8211E for dedicated management GLANFeatures- Watch Dog
- NMIGraphicsController- ASPEED AST2500VRAM- DDR4 256MB (128MBx16)Rear I/OUID Button/LED- 1VGA Port- 1 x D-SubSerial Port- 1USB 3.2 Gen1 Port- 2USB 3.2 Gen2 Port- 2RJ45- 2x RJ45: 2x 10GbE by Intel®X550-AT2
- 1x IPMI dedicated LAN
- LAN Ports with LED (ACT/LINK LED and SPEED LED)HDMI- 1Internal Connector/HeadersPower Connector- 1x (24-pin) + 1x (8-pin)Auxiliary Panel Header- 1 (includes chassis intrusion, location button & LED, and front LAN LED)System Panel- 1 (RST, PWRBTN, HDDLED, PWRLED)Buzzer- 1Fan Header- 6(1CPU/3Front/2Rear)Thermal Sensor Header- 1 TR1TPM Header- 1SGPIO Header- 2SMBus header- 1PMBus header- 1IPMB Header- 1Clear CMOS- 1 (header and short pin)ME/SPS Recovery- 1USB 3.2 (Gen1) Header- 1 (supports 2 USB 3.1 Gen1 ports)USB 2.0 Header- 1 (supports 2 USB 2.0 ports)LED Indicators80 Debug Port LED- 1Fan Fail LED- 6 (Header)System BIOSBIOS Type- 256 Mb AMI UEFI Legal BIOS
BIOS Features- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant FlashHardware MonitorTemperature- CPU/PCH/DDR/LAN/Storage Temperature Sensing
- MB/Card side/TR1 Temperature SensingFan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed ControlVoltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSBSupported OSOSMicrosoft®Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.4 (64 bit)
- SUSE Enterprise Linux Server 12 SP1 (64 bit) /
12 SP3 (64 bit)
- Ubuntu 15.10 (64 bit) / 16.04 (64 bit)EnvironmentTemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°CHumidity- Non operation humidity: 20% ~ 90% ( Non condensing)Return Terms
