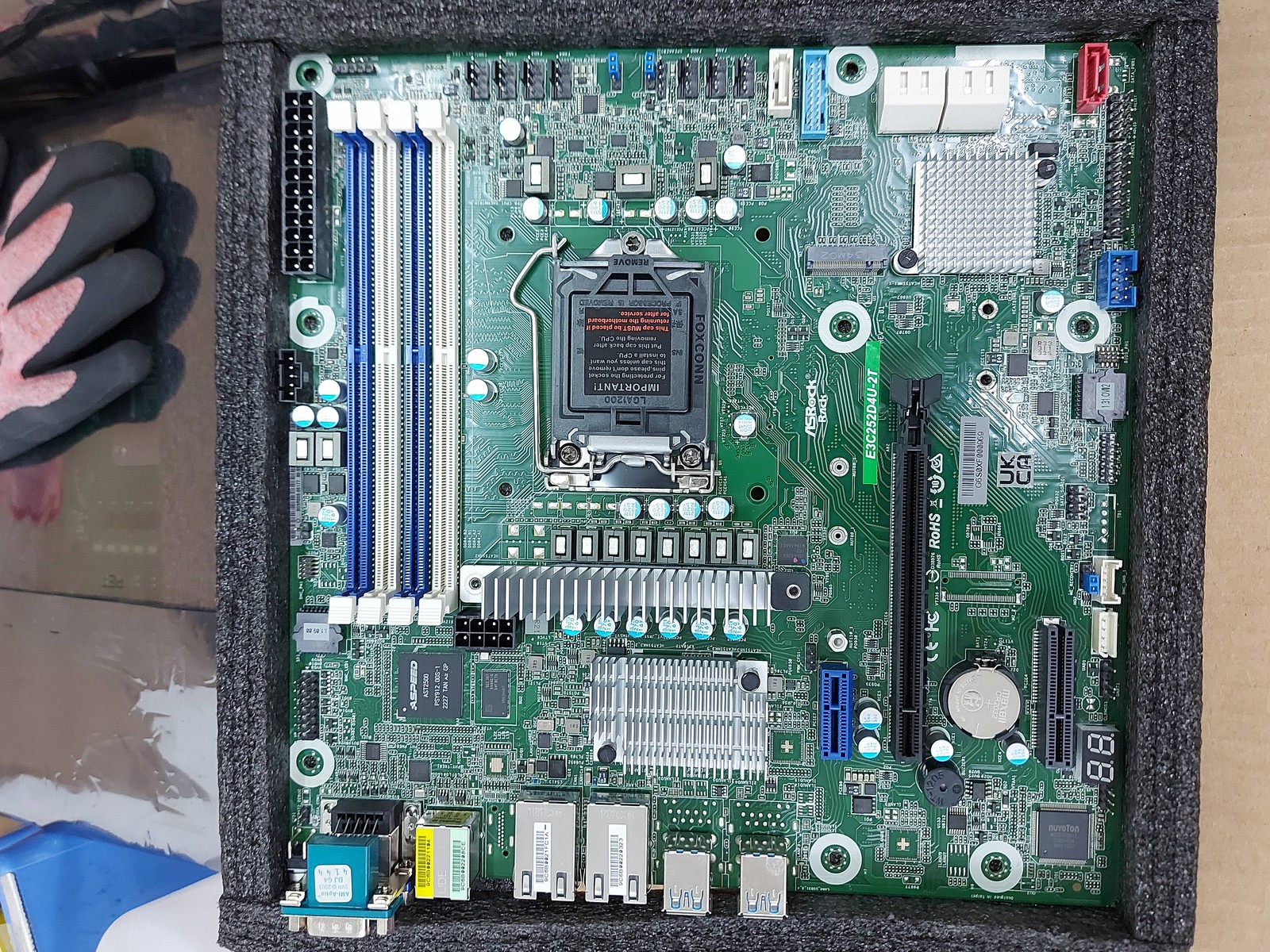

Note: Buyer is responsible for customs duties. Rack E3C252D4U‑2T C252 Chipset, Supports E‑23XX CPUs AST2500 BMC
Product FactorMicro-ATXDimensions9.6'' x 9.6'' (244 mm x 244 mm)Supported CPUSupports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processorsCPU SocketSingle Socket H5 (LGA1200)ChipsetIntel® C252Memory Slots4 DDR4 DIMM slots (2DPC)Maximum Memory CapacityUp to 128GB (up to 32GB per DIMM)Supported Memory SpecificationDDR4 288-pin ECC/non-ECC UDIMM, max 3200MHz; max 2666MHz when configured with 10th Gen Intel® Pentium® processorsPCIe Expansion Slots1PCIe 4.0 x16 slot, 1PCIe 4.0 x4 slot, 1*PCIe 3.0 x1 slot; the x16 slot only supports PCIe 3.0 and the x4 slot is disabled when configured with 10th Gen Intel® Pentium® processorsStorage Interfaces6SATA 6Gb/s ports (supports RAID 0/1/5/10); 1M.2 M-key slot (supports PCIe 3.0 x2 / SATA 6Gb/s, compatible with 22110/2280/2260 form factors; SATA0 port is disabled when a SATA M.2 device is installed)Ethernet Interface2*10GbE RJ45 ports, controlled by Intel® X710-AT2BMC ControllerASPEED AST2500Dedicated Management Network Port1*GbE RJ45 port, controlled by Realtek RTL8211EGraphics ControllerASPEED AST2500, integrated 256MB DDR4 video memoryRear I/O Ports1VGA (DB15) port, 4USB 3.2 Gen1 Type-A ports, 210GbE RJ45 ports, 1serial port (DB9), 1*UID button with LEDPower Connectors124-pin ATX main power connector, 18-pin ATX 12V power connectorBIOS TypeAMI UEFI BIOS, 32MB (256Mb) SPI Flash ROMSupported Operating SystemsWindows Server 2019 (64-bit), Windows Server 2022 (64-bit); SUSE Enterprise Linux Server 15 SP2 (64-bit), Ubuntu 21.04 (64-bit); VMWare® ESXi 7.0U2a / vSphere 7.0U2b; supports UEFI boot onlyOperating Temperature10°C ~ 35°CNon-operating Temperature-40°C ~ 70°C
Buying Notes:
1. All orders are shipped from China
2. orders will be shipped within 5 days after we receive full payment (excluding holidays or weekends).
3. All parcels will be provided with a tracking number for your tracking:
① Standard SpeedPAK Shipping: 8-12 business days to the US and most countries.
② If you choose expedited shipping, the package will be shipped by FedEx, DHL or UPS.
③ If you have any problems with customs clearance (invoice, declared value, etc.), please feel free to contact us and we will reply as soon as possible.
④ If you need to change the address, please cancel the order first and then place the order with the correct address.
4.About Returns and Exchanges:
If you receive the goods and find faults or damage problems, please keep the goods as they are and then contact us to provide you with after-sale solutions;
If you need to return or exchange the goods for personal reasons, the return shipping costs need to be borne by you.
If you have any questions, our customer service staff will be happy to assist you. However, due to the large number of emails we receive each day and the time difference, we may not be able to respond to your email immediately. Please allow us to respond to your message immediately after business hours.
