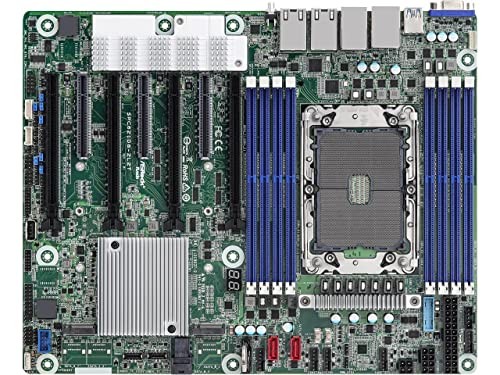

ASRock SPC621D82L2T SPC621D8 2L2T ATX Server Motherboard ASRock SPC621D82L2T SPC621D8 2L2T ATX Server Motherboard

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

ATX (12" x 9.6")

Supports 3rd Gen Intel Xeon Scalable Processors

8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory

4 PCIe4.0 x16, 3 PCIe4.0 x8

Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)

8 SATA 6Gb/s (including 2 ports from M.2)

2 RJ45 (10GbE) by Intel X710-AT2, 2 RJ45 (1GbE) by Intel i210

Remote management (IPMI) Form Factor
ATX Processor System
CPU
Supports 3rd Gen Intel Xeon Scalable processors
Socket
Single Socket P+ (LGA 4189)
Chipset
Intel C621A System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel OptaneTM Persistent Memory 200 series
Max. Capacity per DIMM
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
DIMM Frequency
max. 3200MHz
Voltage
1.2V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT3: PCIe4.0 x16
SLOT1: PCIe4.0 x16
Note: SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied
PCIe x 8
SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8 Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor SATA/SAS Storage
PCH Built-in Storage
Intel C621A (8 SATA 6Gb/s RAID 0/1/5/10):
1 Mini-SAS HD, 2 SATA DOM, 2 M.2 Ethernet
Additional GbE Controller
Intel X710-AT2: 2 RJ45 (10 GbE)
Intel i210: 2 RJ45 (1GbE) Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN Graphics
Controller
ASPEED AST2500
VRAM
DDR4 16MB Rear I/O
UID Button/LED
1
VGA Port
1 DB15
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE), 2 RJ45 (1GbE)
Dedicate LAN
1 dedicated IPMI Internal Connector/Headers
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header
1 Video output
1 Speaker Header
1 Buzzer
1 Fan Header
5 (6-pin) Thermal Sensor Header
1 TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI) VROC header
1 SpecificationOnboard InterfacesNumber of SATA Interfaces8Total Number of Onboard USB Ports7Number of Onboard USB 3.2 Ports4Number of M.2 Interfaces2Number of Onboard USB 2.0 Ports3Physical CharacteristicsForm FactorATXWidth12"Depth9.6"I/O ExpansionsTotal Number of Expansion Slots7Number of PCI Express x8 Slots3Number of PCI Express x16 Slots4Total Number of PCI Express Slots7Interfaces/PortsVGAYesTotal Number of USB Ports4Number of USB 3.2 Gen 1 Ports4Number of Network (RJ-45) Ports4MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots8Memory Speed Supported3200 MHzMemory Form Factor
