Item description

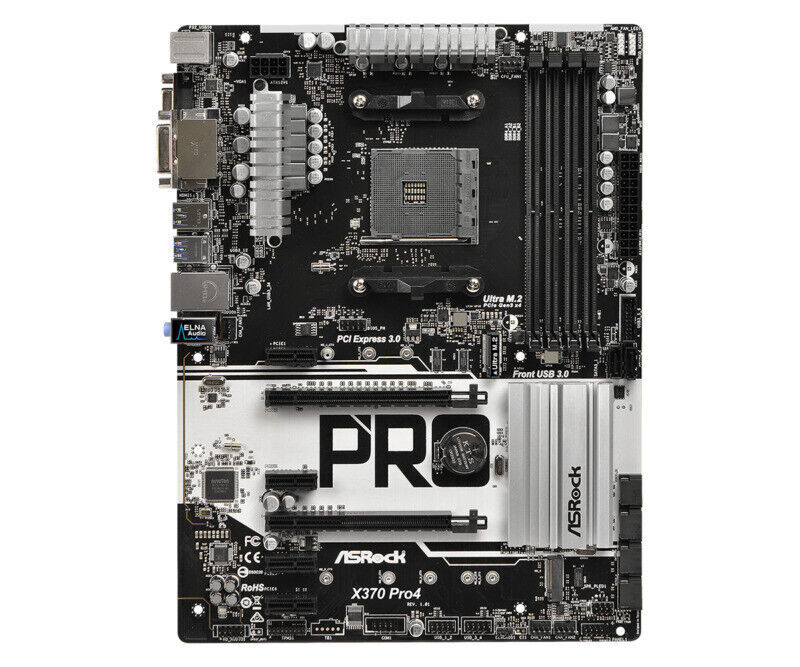

ASRock X370 Pro4 Motherboard AMD X370 Socket AM4 4 x DDR4 M.2 ATX D-Sub DVI-D
CPU
-Supports AMD AM4 socket A series APU (Bristol Ridge) and Ryzen processors (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
-Digital power supply
-9-phase power supply design
Chipset
-AMD Promontory X370
RAM
-Dual channel DDR4 memory technology
-4 x DDR4 memory slots
-AMD Ryzen series processors (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & (non-ECC), un-buffered memory*
-AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & (non-ECC), un-buffered memory*
-AMD Ryzen series processors (Picasso) support DDR4 2933/2667/2400/2133 (non-ECC), un-buffered memory*
-AMD Ryzen series processors (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & (non-ECC), un-buffered memory*
-AMD Ryzen series processors (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 (non-ECC), un-buffered memory*
-AMD 7th generation A series APU supports DDR4 2400/2133 ECC & (non-ECC), un-buffered memory*
-Maximum capacity of system memory: 64GB**
-DIMM socket uses 15μ gold-plated contacts
BIOS
-Multilingual 128Mb AMI UEFI Legal BIOS supporting graphical interface
-Support "Plug and Play"
-Compliant with ACPI 5.1, support wake up and automatic boot (Wake Up Events)
-Support jumper-free
-Support SMBIOS 2.3
-DRAM voltage multi-function regulator
Onboard graphics
-Ryzen series APU integrates AMD Radeon™ HD Vega series graphics core*
-Integrated AMD Radeon™ HD R series graphics core on A series APU*
-DirectX 12, Pixel Shading Engine 5.0
-The default shared memory is 2GB. Supports up to 16GB of shared memory. **
-Three graphics output options: D-Sub, DVI-D and HDMI
-Supports simultaneous output of three displays
-Support HDMI, maximum resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
-Support DVI-D, maximum resolution up to 1920x1200 @ 60Hz
-Support D-Sub, maximum resolution up to 1920x1200 @ 60Hz
-Support HDMI port automatic sound and picture synchronization, deep color (12bpc), xvYCC and HBR (high bit rate audio) (requires HDMI compatible display)
-Support HDCP 1.4 through DVI-D and HDMI ports
-Support 1080p Blu-ray Disc (BD) HD playback through DVI-D and HDMI ports
*The actual support level depends on the CPU
**To get up to 16GB of shared memory, you need to install 32GB of system memory.
Sound effect
-7.1 channel high-fidelity audio, support content protection function (Realtek ALC892 audio codec)
-Support high-quality Blu-ray sound effects
-Support anti-surge
-ELNA professional audio capacitor
local area network
-PCIE x1 Gigabit Ethernet 10/100/1000 Mb/s
-Realtek RTL8111GR
-Support Wake-On-LAN (Wake-On-LAN)
-Support lightning protection / ESD protection
-Support network cable detection
-Support Energy Efficient Ethernet 802.3az
-Support PXE
Expansion slot
AMD Ryzen series processors (Matisse, Summit Ridge and Pinnacle Ridge)
-2 x PCI Express 3.0 x16 slots (single slot x16 (PCIE2); dual slot x16 (PCIE2) / x4 (PCIE4))*
AMD 7th Generation A Series APU
-2 x PCI Express 3.0 x16 slots (single slot x8 (PCIE2); dual slots x8 (PCIE2) / x2 (PCIE4))*
AMD Ryzen series processors (Picasso, Raven Ridge)
-2 x PCI Express 3.0 x16 slots (single slot x8 (PCIE2); dual slot x8 (PCIE2) / x4 (PCIE4))*
AMD Athlon series processors
-2 x PCI Express 3.0 x16 slots (single slot x4 (PCIE2); dual x4 (PCIE2) / x2 (PCIE4))*
-4 x PCI Express 2.0 x1 slots
-Supports AMD Quad CrossFireX™ and CrossFireX™**
*Support NVMe SSD boot
If the M2_1 slot is occupied, PCIE4 will be disabled.
**This function only supports Ryzen series processors (Matisse, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge).
Storage
-4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and hot plug*
-2 x SATA3 6.0Gb/s ports supported by ASMedia ASM1061, support NCQ, AHCI and hot plug
-1 x Super M.2 port (M2_1), supports M Key 2242/2260/2280 M.2 PCIe module to Gen3 x4 (32 Gb/s) (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (A series APU and Athlon series APU)**
-1 x M.2 port (M2_2), support M Key 2230/2242/2260/2280/22110 type M.2 SATA3 6.0 Gb/s module
*M2_2 shares the channel with SATA3_3. If one of them is used, the other will be deactivated.
**If the M2_1 slot is occupied, PCIE4 will be disabled.
Support NVMe SSD boot
Support ASRock U.2 package
Onboard interface
-1 x COM port header
-1 x TPM header
-1 x Power LED and speaker header
-1 x RGB LED header*
-1 x AMD fan LED header**
-1 x CPU fan connector ((4-pin))***
-3 x Chassis Fan Connector ((4-pin)) (Smart Fan Speed Control)****
-1 x 24-pin ATX power connector
-1 x 8-pin 12V power connector
-1 x front panel audio interface
-2 x USB 2.0 pin connectors (support 4 USB 2.0 ports) (support ESD protection)
-1 x USB 3.1 Gen1 header (support 2 USB 3.1 Gen1 ports) (support ESD protection)
*Support up to 12V/3A, 36W LED strip
**The AMD fan LED connector can support up to 12V/3A (36W) and RGB LED strips up to 2.5 meters long.
***The CPU fan interface supports a maximum 1A (12W) power supply.
****CHA_FAN2 and CHA_FAN3 can automatically detect 3-pin or 4-pin fans.
Rear panel output / input interface
-1 x PS/2 keyboard/mouse port
-1 x D-Sub port
-1 x DVI-D port
-1 x HDMI port
-2 x USB 2.0 ports (support ESD protection)
-1 x USB 3.1 Gen1 Type C interface interface (supports ESD protection)
-5 x USB 3.1 Gen1 ports (support ESD protection)
-1 x RJ-45 network interface with indicator light (action/connection indicator and speed indicator)
-HD audio jack: line input / front / microphone
Software and UEFI
software
-ASRock A-Tuning
-ASRock RGB LED
-ASRock Extreme Speed Network
UEFI
-ASRock Full HD UEFI
-ASRock Instant Flash
-ASRock Simple Array
*These applications can be downloaded from ASRock App Market.
Form Factor
-ATX specifications: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
Included
1 x motherboard.
2 x SATA II cables.
1 x I/O shield.
