Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..
Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.
Instructions
1. Please DO NOT use fake memory, because the motherboard maybe can't support.
2. Please DO NOT use single-side memory, because some motherboards can't support.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some Can't boot problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.
Package included:
Please note only the following accessories come with the mobo:
1 x motherboard
2 x SATA cables
1 x I/O back panel

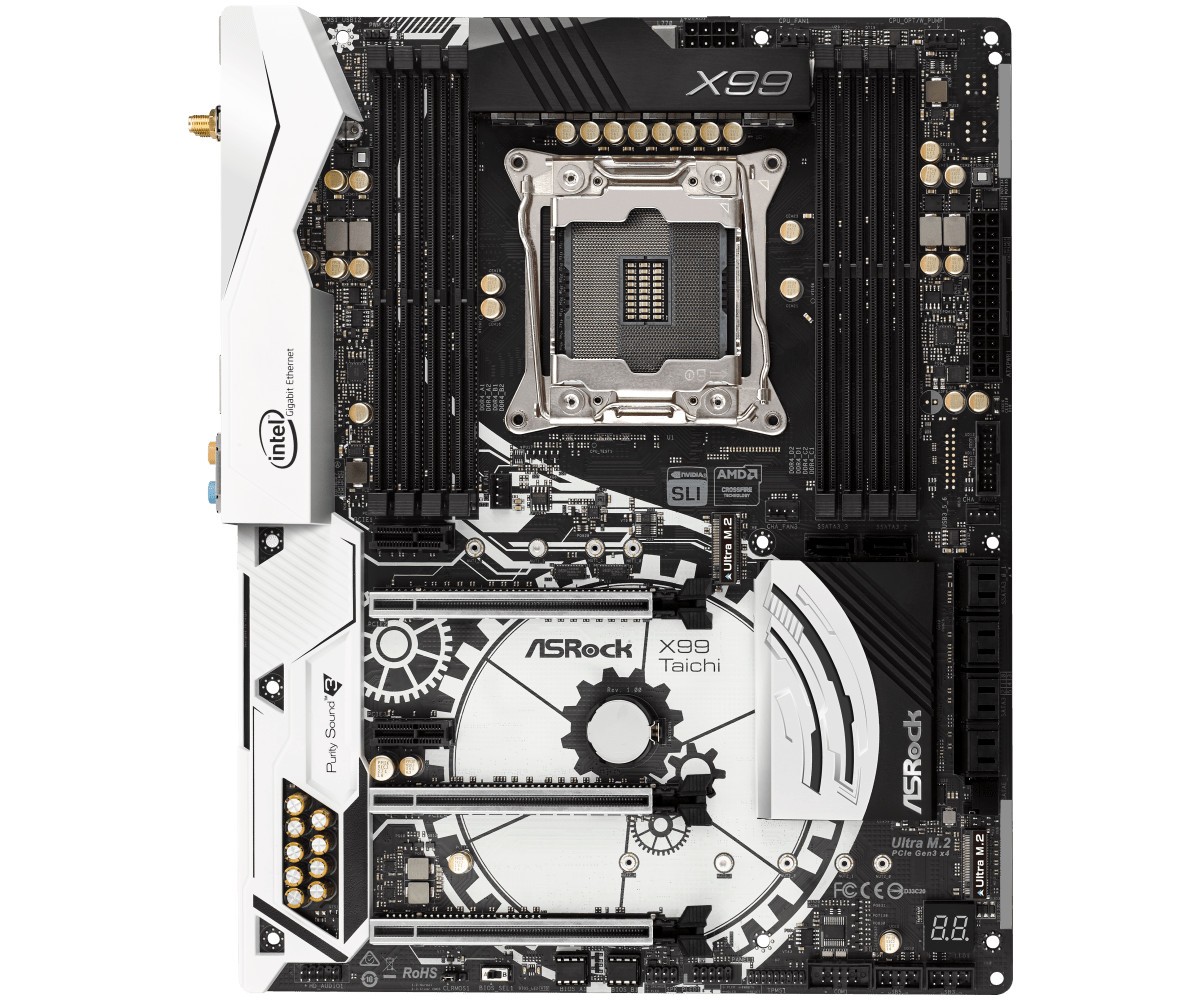

itemintroduction
processor
- Supports Intel® Core™ i7 and Xeon® 22-core processor families in LGA 2011-3 form factor sockets
- Digitally powered
- Supports Intel® Turbo Boost Max 3.0 Technology*
- Support free overclocking technology
*Intel® Core™ i7-59xx/58xx processors only support Intel® Turbo Boost Max 2.0 X99
RAM
- Quad channel DDR4 memory technology
- 8 x DDR4 memory slots
- Support DDR4 (non-ECC), un-buffered memory
- Support (non-ECC) RDIMM (Registered DIMM)
- Intel® Xeon® E5 series processors in LGA 2011-3 form factor sockets support DDR4 ECC, un-buffered memory modules/RDIMM memory modules
- Maximum system memory: 128GB (with Core™ i7 Broadwell-E CPU) or 64GB (with Core™ i7 Haswell-E CPU) or 256GB (with Xeon® CPU)*
- Supports Intel® Extreme Memory Profile (XMP) 2.0 technology
- DIMM sockets feature 15µ gold plated headers
*Due to operating system limitations, the actual memory that can be used under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this 2 x Multilingual 128Mb AMI UEFI Legal BIOS with GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports secure backup UEFI technology
- Compliant with ACPI 5.0, supports Wake Up Events
- Support SMBIOS 2.7
- CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multifunction Regulator
Sound effect
- 7.1 channel high definition audio with content protection function (Realtek ALC1150 audio codec)
- Support high quality Blu-ray sound
- Support anti-surge (ASRock full protection)
- Support Hi-Fi three generations
- Nichicon Fine Gold Professional Audio Capacitor
- 115dB SNR D/A converter with differential amplifier
- TI® NE5532 Premium Headphone Amp (supports headphones up to 600 ohms)
- Pure power
- Direct drive technology
- PCB isolation shield
- Support DTS connection
local area network
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel® I218V, 1 x GigaLAN Intel® I211AT
- Support Wake-On-LAN function
- Support anti-lightning / anti-ESD static electricity (ASRock full protection)
- Dual NICs with Teaming support*
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
*Windows® 10 does not support this feature
Wireless network card
- Support IEEE 802.11a/b/g/n/ac
- Supports Dual Band (2.4/5 GHz)
- Supports high-speed wireless connection up to 433Mbps
- Supports Bluetooth 4.0 / 3.0 + high speed class II
Expansion slot
- 3 x PCI Express 3.0 x16 slots (PCIE2 x16 mode; PCIE4 x16 mode; PCIE5 @ x0 mode) (PCIE2 x16 mode; PCIE4 x8 mode; PCIE5 x8 mode)*
- 2 x PCI Express 2.0 x1 slots
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™
- 1 x vertical M.2 slot (Key E), supports type 2230 WiFi / BT module
- VGA PCIe slot with 15µ gold plated headers (PCIE2 and PCIE4)
*If you install a 28-line processor, the PCIE2/PCIE4/PCIE5 slot will operate in x16/x0/x8 or x8/x8/x8 mode.
Support NVMe SSD boot.
Storage
- 10 x SATA3 6.0 Gb/s ports, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13), NCQ, AHCI, Hot Plug*
- 1 x SATA Express 10 Gb/s connector (shared with SATA3_4 / SATA3_5 slot)**
- 1 x Super M.2 connector (M2_2), supports M Key 2230/2242/2260/2280/22110 type M.2 SATA3 6.0 Gb/s and M.2 PCIe module to Gen3 x4 (32 Gb/s)** *
- 1 x Ultra M.2 connector (M2_1), supports M Key 2230/2242/2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe module to Gen3 x4 (32 Gb/s)***
*SSATA3_3 port shares resources with M2_1; SSATA3_2 port shares resources with M2_2.
Only SATA3_0 ~ SATA3_5 connectors support RAID settings.
** Whether it is supported depends on the actual announcement.
***If you install a 28-wire processor, M2_1 only supports SATA type M.2 module.
Support NVMe SSD boot.
Support ASRock U.2 kit.
Onboard interface
- 1 x COM port header
- 1 x TPM header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector ((4-pin)) (Smart Fan Speed Control)*
- 1 x CPU Option / Water Pump Fan Connector ((4-pin))**
- 3 x Chassis Fan Connectors ((4-pin))***
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V Power Connector (High Density Power Connector)
- 1 x front panel audio jack
- 2 x USB 2.0 pin headers (supports 4 USB 2.0 ports) (supports ESD protection (ASRock full protection))
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection (ASRock full protection))
- 1 x Dr. Debug with LED
- 1 x BIOS selector switch
*CPU fan connector supports up to 1A (12W) power supply.
**CPU option / water pump fan supports water cooling fan up to 1.5A (18W).
***CHA_FAN1 and CHA_FAN2 can auto detect 3-pin or 4-pin fan.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 1 x Optical SPDIF digital audio output port
- 3 x USB 2.0 ports (supports ESD protection (ASRock full protection))
- 1 x USB 3.1 Gen2 Type A Connector (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Protection))
- 1 x USB 3.1 Gen2 Type-C Connector (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Protection))
- 3 x USB 3.1 Gen1 ports (Intel® X99) (supports ESD protection (ASRock Full Protection))
- 2 x RJ-45 LAN connector LED indicators (ACT/LINK LED and SPEED LED)
- 1 x CMOS data clear switch
- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic
Dimension
- ATX; 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Operating system
- Supports Microsoft® Windows 10 64-bit / 8.1 64-bit / 8 64-bit / 7 32-bit / 7 64-bit
