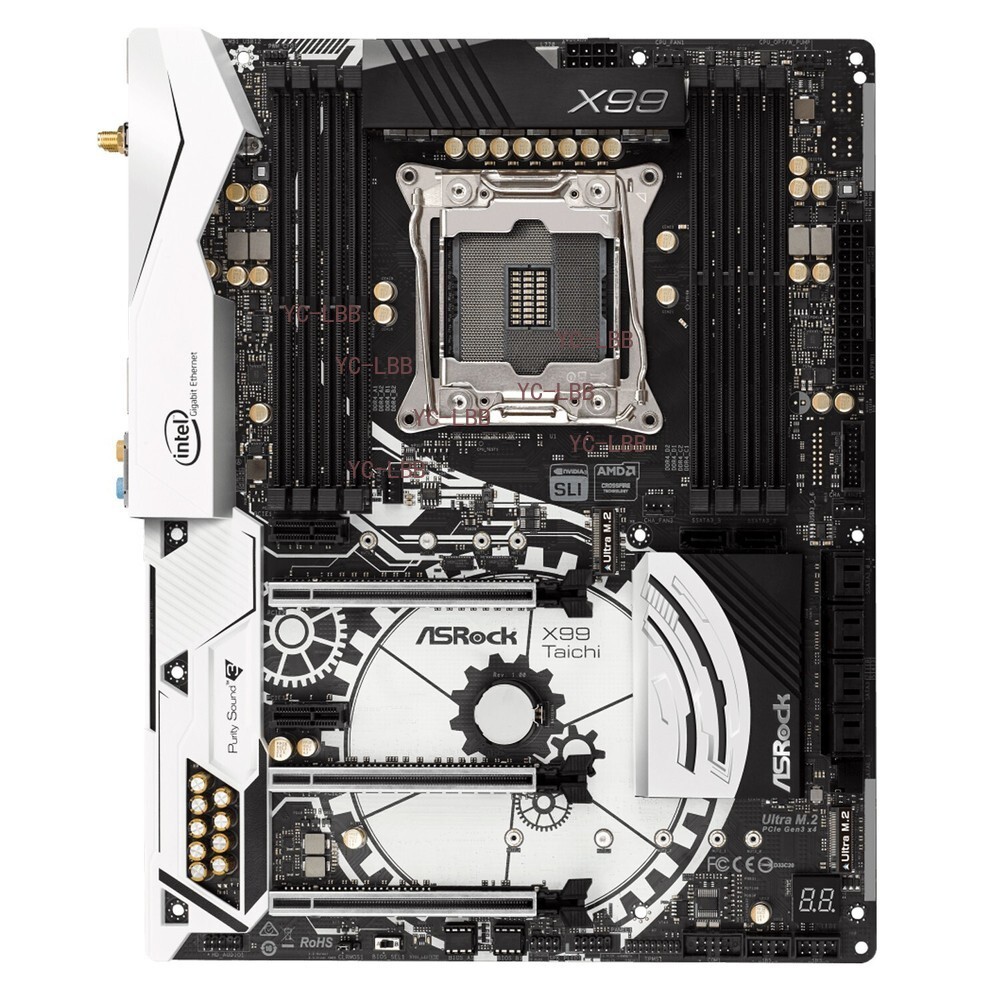

Intel X99 Motherboard ASRock X99 Taichi LGA 2011-3 DDR4 for Intel Xeon /Core i7
Note: The models of ASRock brand Intel chipsets sold in the store are: Intel H110/Intel J3710/Intel X99/Intel Z97/Intel D1520/Intel B85/Intel J3160/Intel J2900/Intel J1900/Intel Z87/Intel H170/Intel Z390/Intel Z170/Intel Z270/Intel B150/Intel Z370/Intel H61/Intel H77/Intel H97/Intel B75/Intel H81/Intel B365/Intel N3050/Intel J3455/Intel J4205/Intel X299/Intel B360/Intel H67/Intel H270/Intel C232/Intel Z590/Intel J4005/Intel N3150/Intel H310/Intel B560/Intel H570/Intel B460/Intel H410/Intel Z490/Intel H470/Intel J4105/Intel H510/Intel G41/Intel B660/Intel J1800/Intel H370/Intel W480/Intel 1900/Intel J3060. All kinds of mid-range, high-end and low-end motherboards and server motherboards are sold, and the models are constantly being updated. Some models are in large stock, and everyone is welcome to buy. If you need a large quantity, please contact customer service for a discount.
Compatible Model:
ASRock X99 Taichi
Features: - Original quality not include retail box or parts. - 100% tested working before shipping. - Free OEM I/O shield as a gift, updated the newest BIOS. - Without CMOS battery for safe sending. - Please check and confirm the model of your device before purchase. - We provide 90 days warranty, the buyer pays the postage of the returned package.
CPU - Supports Intel Core i7 and Xeon 22-Core Processors Family for the LGA 2011-3 Socket - Digi Power design - 12 Power Phase design - Supports Intel Turbo Boost Max Technology 3.0* - Supports Untied Overclocking Technology
Chipset - Intel X99
Memory - Quad Channel DDR4 Memory Technology - 8 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory - Supports non-ECC RDIMM (Registered DIMM) - Supports DDR4 ECC, un-buffered memory/RDIMM with Intel Xeon processors E5 series in the LGA 2011-3 Socket - Max. capacity of system memory: 128GB (with Core i7 CPU Broadwell-E) or 64GB (with Core i7 CPU Haswell-E) or 256GB (With Xeon CPU)* - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
BIOS - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment
Graphics - n/a
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Supports Purity Sound 3 - Nichicon Fine Gold Series Audio Caps - 115dB SNR DAC with differential amplifier - TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Supports DTS Connect
LAN - Gigabit LAN 10/100/1000 Mb/s - 1 x Giga PHY Intel® I218V, 1 x GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.0 / 3.0 + High speed class II
Slots - 3 x PCI Express 3.0 x16 Slots (PCIE2 @ x16 mode; PCIE4 @ x16 mode; PCIE5 @ x0 mode) (PCIE2 @ x16 mode; PCIE4 @ x8 mode; PCIE5 @ x8 mode)* - 2 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX - Supports NVIDIA Quad SLI, 3-Way SLI and SLI - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT module - 15μ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE4)
Storage - 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13), NCQ, AHCI, Hot Plug* - 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)** - 1 x Ultra M.2 Socket (M2_2), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*** - 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***
Connector - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* - 1 x CPU Optional/Water Pump Fan Connector (4-pin)** - 3 x Chassis Fan Connectors (4-pin)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Headers (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x Dr. Debug with LED - 1 x BIOS Selection Switch
Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x Optical SPDIF Out Port - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) - 3 x USB 3.1 Gen1 Ports (Intel® X99) (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Hardware Monitor - CPU, Chassis, CPU Optional/Water Pump temperature sensing - CPU, Chassis, CPU Optional/Water Pump Fan Tachometer - CPU, Chassis, CPU Optional/Water Pump Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU, Chassis, CPU Optional/Water Pump Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 4 x 2oz Copper
OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 8 64-bit / 7 32-bit / 7 64-bit Wehavealargeamountofstock, and manyproducts have not been released yet. You can give us your hairstyle number andwecanhelpyou find them. If you need more, please contact us to get abetter price. We will reply your message in 24hours during
