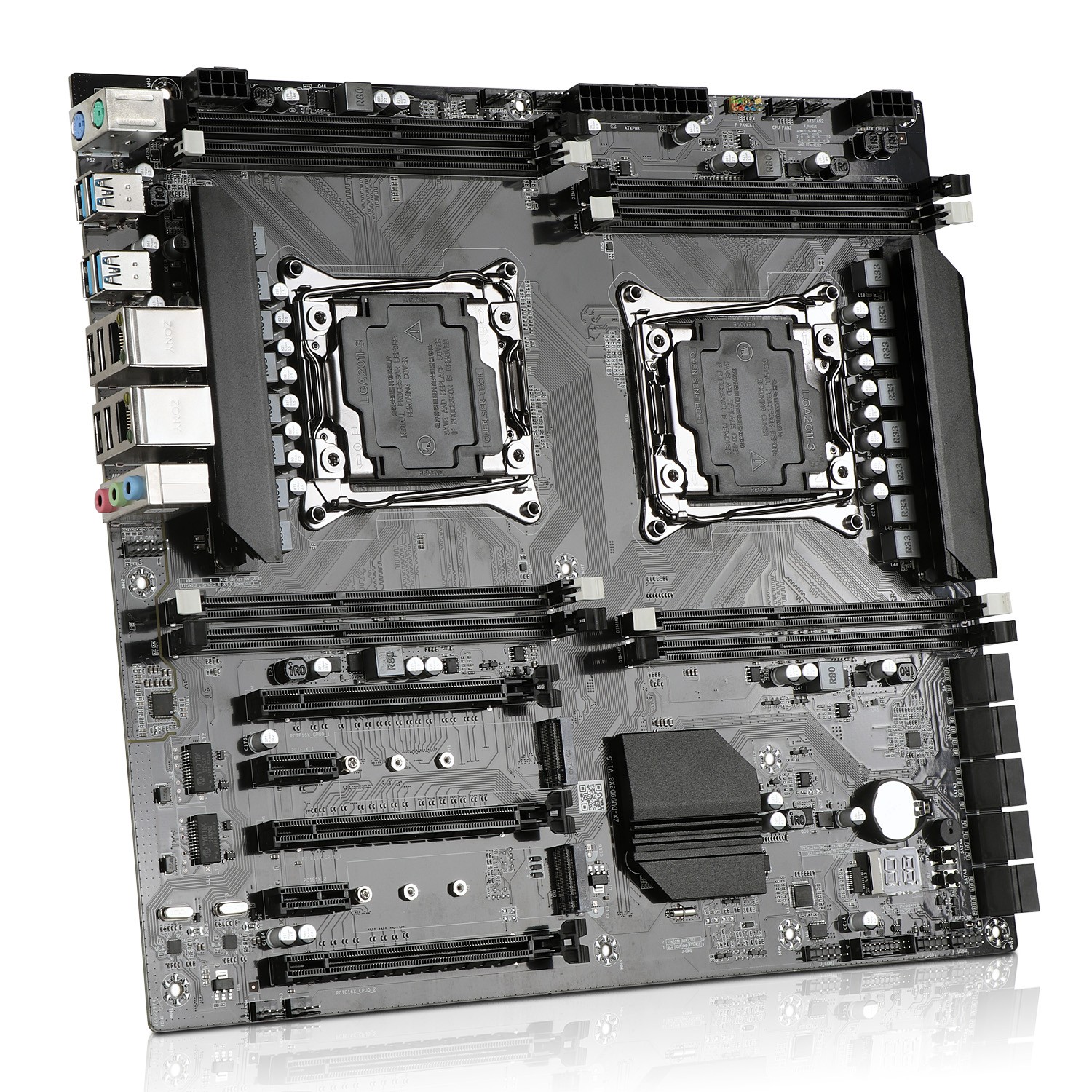

Brand new X99D3 dual-channel dual Gigabit 8 DD3 memory slot motherboard

Motherboardmodel:TF-X99D3 dual-channel motherboard

chipset :IntelC612 series

CPU pin supports:IntelLGA 2011-3 pin processor (supports v3/E5-2678 3/E5-26963/E5-2666 3/E5-2686v4/E5-2696v4)

Memory slots: 8 DDR3 memory slots, supporting server memory memory standards. Supporting four-channel DDR3 1866/1600/1333MHz

specifications. The maximum memory size is 128GB(16g*8)

Storage interface:10 SATA hard disk interfaces

Expansion slots: 3 PCl Express 3.0x16 slots

Expansion interface :2 M.22280NVMEPCIEX43.0 32Gbps

Onboard sound card :5.1 channel sound card

Onboard network card:Dual Gigabit network card

Power interface :24PIN+8PIN+8PIN

Fan pins: 2 CPUFAN pins, 4 SYSFAN pins

Number of power supply phases: 8+8 phase power supply

Motherboard specifications: 300*330MM E-ATX board type

Rear panel interface: 4 USB2.0 interfaces, 4 USB3.0

interfaces, 2 network interfaces, 1 3-hole audio interface

Front panel interface: 2 sets of USB2.0 pins, 1 set of USB3.0 pins, 1 set of front audio pins, 1 set of COM pins, 1 motherboard buzzer, 1 motherboard diagnostic card

Support system:Windows7 Windows10 Windows11

BIOS:AMI UEFI BIOS

Packing list:1 motherboard, 1 SATA hard drive data cable, 1 1/0 baffle
