Model

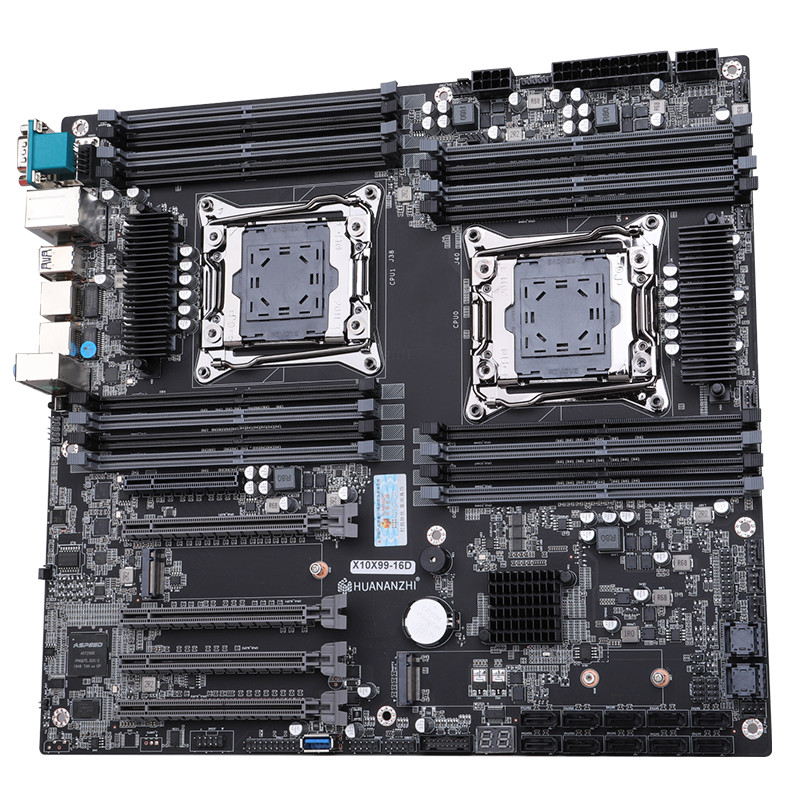

HUANANZHI X10X99-16D Socket
Support LGA2011-3 Processors
Memory Slot
16 x DDR4 Memory Slot，Support Server Memory (gray for main slot/black for secondary slot)
Memory Standard
Supportfourchannels Interface
6xSATA 3.0 6Gb/s，4xSATA 3.0 6Gb/s，SupportRAID 0/1/5/10
Expansion Interface
1xM.2 NVME PCIe3.0x4，1xM.2 2280 NVME PCIe3.0x4，2xSFF-8643 to SFF-8639U2 Cable
Sound Track
Realtek High Definition Audio ALC662
NetworkCard
2xIntel i225-V Gigabit Network Card, 1xIPMI Dedicated IPMI LAN port by RTL8211E
Power PIN
2xCPU_FAN PIN，8xSYS_FAN PIN
Power Supply
6+6 Phase Power Supply，IC ISL6376
PCB Layers
12-layer PCB
Dimension
305*330MM E-ATX
Rear Panel Card Audio PIN，1xUSB3.0 PIN，1xUSB3.0Interface，1xFront Audio PIN，1xCOMPIN，1xPower On/Restart Standard
1xUIDLED(blue light):for fault detection,classification; 1xBMCLED(green light)：blinking indicates BMC initiation status
Management Headquarters
ASPEED AST2500 Baseboard Management Controller(BMC) support IPMI 2.0,1xIPMI LAN at rear panel interface
Support System
Windows operating system
BIOS
AMI UEFI BIOS
Packing List
1xMotherboard，2xSATA Cable，1xIO PANEL
