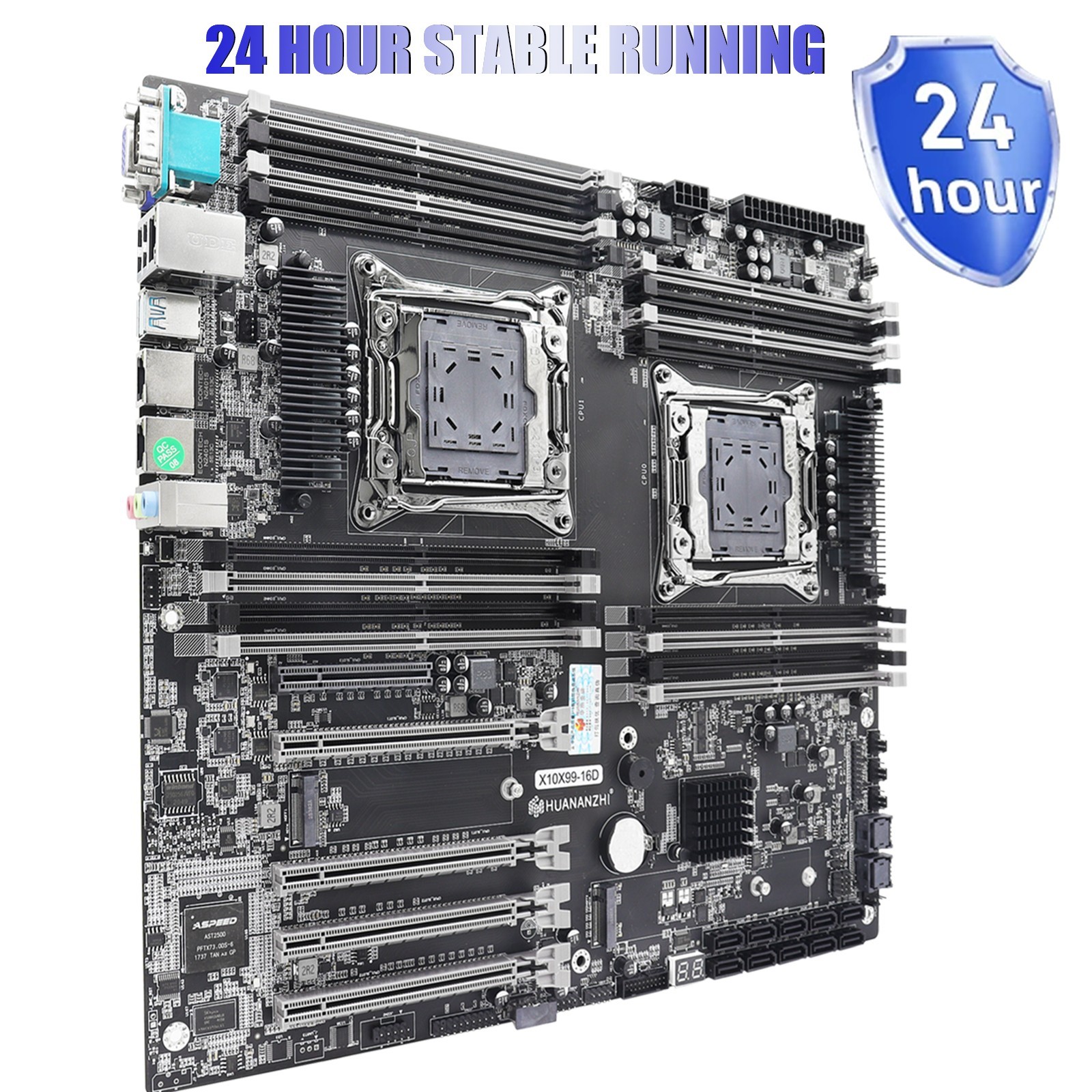

X10X99-16D V2.0 E-ATX Server/Workstation Motherboard | LGA2011-3 | 16x DDR4 | IPMI | 2.5G LANProduct Overview: The Ultimate Platform for Extreme Memory & StorageUnlock unparalleled multi-core processing power and massive expansion capabilities with the X10X99-16D V2.0 motherboard. Designed on the robust Intel C612 chipset for the LGA2011-3 socket, this E-ATX powerhouse is engineered for high-end workstations, rendering farms, virtualization servers, and enthusiasts who demand maximum performance. With support for 16 DDR4 memory slots (up to a staggering 1TB RAM), dual 2.5G Ethernet, IPMI remote management, and extensive PCIe & storage connectivity, this board is built to handle the most demanding professional and creative workloads.Massive Memory Capacity: 16x DDR4 DIMM slots supporting Registered ECC or LRDIMM server memory. Achieve up to 1024GB (1TB) of RAM with 64GB modules, enabling extreme virtualization, large in-memory databases, and seamless 4K/8K video editing.Professional-Grade Platform: Supports Intel® Xeon® E5-2600 v3/v4 family processors (LGA2011-3) for exceptional multi-threaded performance. Perfect for CPU-intensive tasks like 3D rendering, scientific computing, and server applications.Extensive Storage & Expansion: **10x SATA Ports:** 6x Standard SATA 3.0 + 4x **SAS/SATA** (SFF-8643) ports supporting RAID 0,1,5,10 for flexible and fast storage arrays. **High-Speed NVMe Support:** 2x M.2 NVMe PCIe 3.0 x4 slots and **2x SFF-8639 (U.2) ports** via included SFF-8643 cables, allowing for multiple ultra-fast NVMe SSDs. **5x PCIe Slots:** 3x PCIe 3.0 x16 + 2x PCIe 3.0 x8 slots for multiple GPUs, compute accelerators, or high-speed network/storage cards.**Advanced Remote Management:** Integrated **ASPEEED AST2500 BMC** with dedicated IPMI 2.0 LAN port. Remotely monitor, control, and troubleshoot your system via a web interface—ideal for headless servers or remote installations.**Dual High-Speed Networking:** Features two **Intel I225-V/I226-V 2.5 Gigabit Ethernet ports** for fast network transfers and reduced latency, perfect for network-attached storage (NAS) or clustered workstations.**Robust Power & Build:** 12-layer PCB with a **6+6 phase power design** (ISL6376 PWM) and dual 8-pin CPU power connectors for stable operation under heavy, sustained loads.Detailed Specifications:**Form Factor:** E-ATX, 305mm x 330mm (Requires a compatible large chassis).**Processor:*** **Socket:** LGA 2011-3* **Compatibility:** Intel® Xeon® E5-2600 v3/v4 Series Processors. *Note: Consumer Core i7 CPUs (e.g., 58xxK) are NOT supported.***Memory:*** **Slots:** 16x DDR4 DIMM (8x Grey Primary, 8x Black Secondary)* **Types:** Supports Registered (RDIMM) and Load Reduced (LRDIMM) ECC Memory.* **Speed:** DDR4 2400/2133/1866 MHz* **Max Capacity:** 1024GB (using 64GB modules)**Storage & Internal I/O:*** **SATA:** 6x SATA 3.0 (6Gb/s) ports* **SAS/SATA (via SFF-8643):** 4x SATA 3.0 ports (Supports RAID 0/1/5/10)* **M.2:** 1x M.2 NVMe (PCIe 3.0 x4), 1x M.2 2280 NVMe (PCIe 3.0 x4)* **U.2:** 2x SFF-8643 connectors (cables included) for SFF-8639 (U.2) NVMe drives.* **Internal Headers:** USB 3.0, USB 2.0, Front Panel Audio, COM, TPM, System Fan headers, etc.**Expansion Slots:*** **PCIe Slots:** 3x PCI Express 3.0 x16, 2x PCI Express 3.0 x8* (Note: Lane distribution depends on installed CPU).**Rear I/O Panel:*** **Network:** 2x 2.5G RJ45 LAN (Intel), 1x IPMI Management LAN (Realtek)* **USB:** 2x USB 3.0, 2x USB 2.0* **Video:** 1x VGA (primarily for BMC/IPMI)* **Audio:** 3x Audio Jacks (Line-In, Line-Out, Mic-In)* **Other:** 1x COM Port**Management & Monitoring:*** **BMC:** ASPEED AST2500 with IPMI 2.0 support* **Diagnostic Aids:** Onboard diagnostic card reader, beeper, and status LEDs (UID, BMC).**Power Connectors:** 24-pin ATX + 8-pin EPS + 8-pin EPS**Audio:** Realtek ALC662 HD Audio Codec**BIOS:** AMI UEFI BIOS---What's in the Box:* 1x X10X99-16D V2.0 Motherboard* 1x I/O Shield* 2x SATA Data Cables* *(Note: Processors, RAM, coolers, and drives are NOT included.)*Important Notes for Buyers – Please Read Before Purchasing!✅ This is a professional/workstation motherboard. It is designed for Intel Xeon E5-26xx v3/v4 CPUs and DDR4 Registered ECC (RDIMM) or LRDIMM memory. Standard desktop DDR4 (UDIMM) and consumer Intel Core i7 CPUs WILL NOT WORK.✅ Requires a large case that supports E-ATX (305mm x 330mm) form factor and a powerful power supply with dual 8-pin CPU power connectors.✅ IPMI remote management is a key feature. Ensure you understand its setup to take full advantage of remote control.✅ Sold as-is/Tested.Please verify your CPU, memory, and chassis compatibility prior to purchase. We are not responsible for incompatibility issues.Ideal For: Professional Workstations, Home Servers (NAS/Plex), Virtualization Hosts (VMware/Proxmox), Rendering Nodes, Data Science Labs, and Advanced PC Enthusiasts.Order today and build the high-capacity, professional-grade system you need!
