Item description

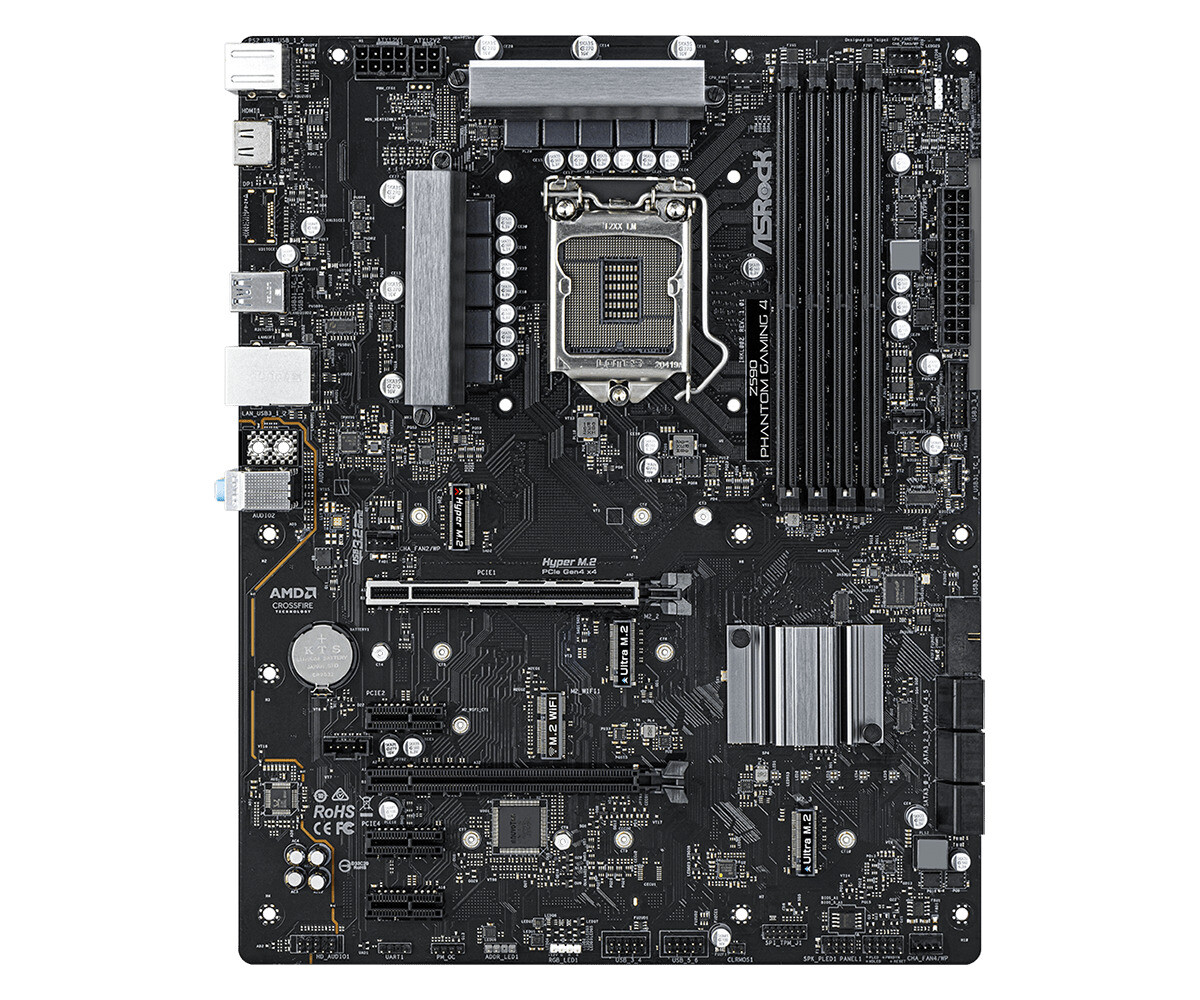

ASRock Z590 Phantom Gaming 4 Motherboard Intel Z590 LGA 1200 DDR4 ATX M.2 Core
CPU
- Supports 10th and 11th Generation Intel® Core™ processors (socket 1200)
- Digitally powered
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® K-series unlocked multiplier Z590
RAM
- Dual channel DDR4 memory technology
- 4 x DDR4 memory slots
- 11th Gen Intel® Core™ processor supports DDR4 (non-ECC), un-buffered memory up to 4800+(OC)*
- 10th Gen Intel® Core™ processor supports DDR4 (non-ECC), un-buffered memory up to 4666+(OC)*
- Supports ECC UDIMM memory modules (operating in non-ECC mode)
- Maximum system memory capacity: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0 technology
*11th Gen Intel® Core™ (i9/i7/i5) natively supports DDR4 3200; Core™ (i3), Pentium and Celeron® natively support up to DDR4 2666. .
10th Gen Intel® Core™ (i9/i7) natively supports DDR4 2933; Core™ (i5/i3), Pentium and Celeron® natively support DDR4 2666.
**Due to operating system limitations, the actual memory available under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this Multilingual 128Mb AMI UEFI Legal BIOS with GUI support
- Compliant with ACPI 6.0 Compliant Wake Events
- Support SMBIOS 2.7
- CPU Core/Cache, CPU GT, DRAM, VCCIO, VCCSA, VCCST, VCCIN AUX, VPPM Voltage Multifunction Regulator
Onboard graphics card
- 11th Generation Intel® Core™ processors support Intel® Xe Graphics Architecture (Gen 12). 10th Generation Intel® Core™ processors support Gen 9 Graphics
- Supports HDMI 2.0, up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ processor
- Supports HDMI 1.4 technology, up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ processor
- Supports HDMI 2.0 port Auto Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (Requires HDMI Compatible Display)
- Supports HDCP 2.2 with HDMI port (HDCP 2.3 ready with 11th Gen Intel® Core™ processor)
*Only processors with built-in GPU can support Intel® UHD graphics chip built-in visual technology and display output.
Graphics specifications may vary between CPU types.
Sound effect
- 7.1 channel high definition audio (Realtek ALC897 audio codec)
- Support anti-surge
- Nahimic Audio
local area network
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Expansion slot
11th Generation Intel® Core™ Processors
- 2 x PCI Express x16 slots (PCIE1/PCIE3: single slot Gen4x16 (PCIE1); dual slot Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Generation Intel® Core™ Processors
- 2 x PCI Express x16 slots (PCIE1/PCIE3: single slot Gen3x16 (PCIE1); dual slot Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*
- 3 x PCI Express 3.0 x1 slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 connector (Key E), supports Type 2230 WiFi/Bluetooth PCIe WiFi Module and Intel® CNVi (Integrated WiFi/BT)
*Support NVMe SSD boot
Storage
- 6 x SATA3 6.0 Gb/s connectors*
- 1 x Super M.2 port (M2_1), supports M Key 2260/2280 type M.2 PCIe module to Gen4x4 (64 Gb/s) (slot M2_1 is only for 11th Gen Intel® Core™ processors)* *
- 1 x Ultra M.2 connector (M2_2), supports M Key 2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe modules to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 connector (M2_3), supports M Key 2260/2280/22110 type M.2 SATA3 6.0 Gb/s and M.2 PCIe module to Gen3 x4 (32 Gb/s)**
*If the M2_2 slot is occupied by a SATA type M.2 device, SATA3_1 will be turned off.
If M2_2 is occupied by a PCIE-type M.2 device, SATA3_0 will be disabled.
If M2_3 is occupied by a SATA-type M.2 device, SATA3_2 will be disabled.
***Supports Intel® Optane™ Technology
Support NVMe SSD boot
Support ASRock U.2 kit
Redundant Array of Independent Disks (RAID)
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1* for M.2 NVMe storage devices
*RAID function of PCIe mode SSD in M2_1 is only available when Intel SSD is installed.
Onboard interface
- 1 x SPI TPM header
- 1 x Power LED and Speaker Header
- 2 x RGB LED headers*
- 2 x Programmable LED Header**
- 1 x CPU Fan Connector ((4-pin))***
- 1 x CPU / Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors ((4-pin)) (Smart Fan Speed Control)*****
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V Power Connector (High Density Power Connector)
- 1 x 4-pin 12V Power Connector (High Density Power Connector)
- 1 x front panel audio jack
- 1 x Thunderbolt™ Header (5-pin) (Support ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 pin headers (supports 4 USB 2.0 ports) (supports ESD protection)
- 2 x USB 3.2 Gen1 headers (supports 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (supports ESD protection)
- 1 x Front Type-C USB 3.2 Gen2x2 header (20 Gb/s) (supports ESD protection)
*Support up to 12V/3A, 36W LED strip
**Supports up to 5V/3A, 15W LED strip
***CPU fan connector supports up to 1A (12W) power supply.
****CPU / water pump fan supports up to 2A (24W) water cooling fan.
*****Chassis/Water Pump Fan supports up to 2A (24W) water cooling fan.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can automatically detect 3-pin or 4-pin fans.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port
- 1 x USB 3.2 Gen2 Type A Connector (10 Gb/s) (ReDriver) (Supports ESD protection)
- 1 x USB 3.2 Gen2 Type-C port (10 Gb/s) (ReDriver) (supports ESD protection)
- 2 x USB 3.2 Gen1 ports (supports ESD protection)
- 2 x USB 2.0 ports (supports ESD protection)
- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)
- HD Audio Jack: Line In / Front / Mic
Dimensions
- ATX; 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Operating system
- Supports Microsoft® Windows 10 64-bit / 11 64-bit
