Motherboard Description:

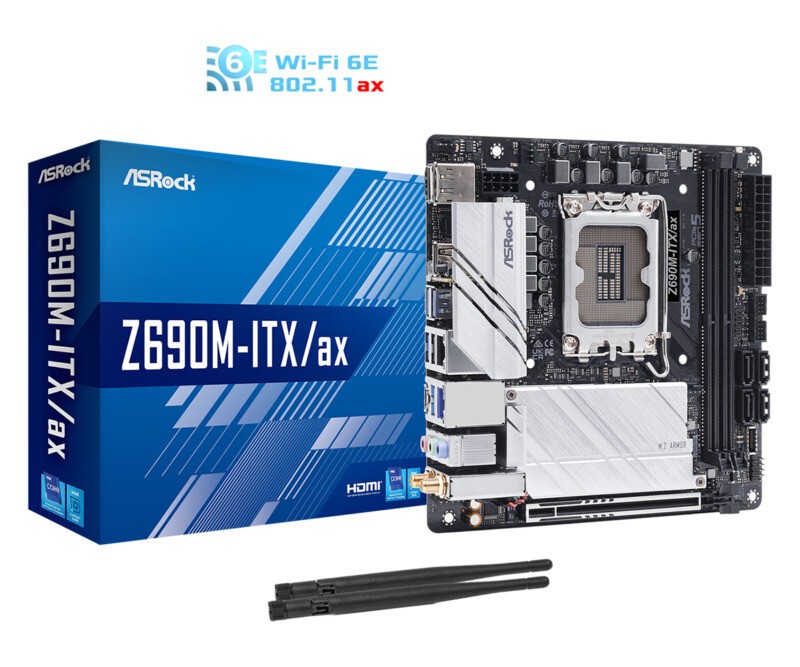

ASRock Z690M-ITX/ax Motherboard Intel Z690 LGA 1700 2 x DDR4 Mini-ITX M.2 HDMI
Instructions:
Please DO NOT use fake memory, because the motherboard maybe can't support.
Please DO NOT use single-side memory, because some motherboards can't support.
Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.
Package Included:
1 X Motherboard,Original accessories in the box.
Product information
Exclusive features
ASRock USB 3.2 Gen2
- ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s)
- ASRock USB 3.2 Gen2x2 Type-C Interface (20 Gb/s)
- ASRock USB 3.2 Gen2 Type A Port (10 Gb/s)
ASRock Super Alloy
- Advanced Inductance
- 50A Dr.MOS
- Nichicon 12k Black Capacitor (Original Japanese High Quality High Conductive Solid Capacitor)
- Gem Black PCB
- High density moisture proof fiber circuit board
- 8-layer PCB
2.5 Gigabit LAN
802.11ax Wi-Fi 6E
ASRock Auto Driver Installer
ASRock Alloy Socket
ASRock M.2 Thermal Armor
ASRock Ultra M.2 (PCIe Gen4x4)
ASRock Full Protection (supports all USB, audio, network interfaces)
ASRock Instant Update & App Market
CPU
- Supports 12th Gen Intel® Core™ processor (LGA1700)
- Digitally powered
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
-Intel® Z690
RAM
- Dual channel DDR4 memory technology
- 2 x DDR4 memory slots
- Supports DDR4 (non-ECC), un-buffered memory up to 5000+(OC)*
- Supports ECC UDIMM memory modules (operating in non-ECC mode)
- Maximum system memory capacity: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0 technology
*Native support for DDR4 3200.
BIOS
- Multilingual 256Mb AMI UEFI Legal BIOS with GUI support
- Compliant with ACPI 6.0 Compliant Wake Events
- Support SMBIOS 2.7
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multifunction Regulator
Onboard graphics card
-Intel® Xe Graphics Architecture (Gen 12)
- Dual display output option: HDMI and DisplayPort 1.4 interfaces supported via separate display controller
- Supports HDMI 2.1 TMDS compatible resolutions up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DCS (compression technology) up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- HDMI 2.1 port supporting HDCP 2.3 Compatible with TMDS and DisplayPort 1.4 ports
*Only processors with built-in GPU can support Intel® UHD graphics chip built-in visual technology and display output.
Sound effect
- 7.1 channel high definition audio (Realtek ALC897 audio codec)
- Support anti-surge
- Nahimic Audio
local area network
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Support Dragon 2.5 Gigabit LAN software
- Fully intelligent automatic bandwidth optimization
- Visual friendly UI interface
- Visual network usage statistics table
- Bandwidth optimization for built-in games, browsing and streaming modes
- User defined priority control
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Support UEFI PXE
Wireless network card
- 802.11ax Wi-Fi 6E module
- Support IEEE 802.11a/b/g/n/ax
- Supports dual-band 2x2 160MHz and extended 6GHz bands*
- Dual antenna supports 2 (transmit) x 2 (receive) diversity technology
- Support Bluetooth + High speed class II
- Support MU-MIMO
*Microsoft® Windows® 11 supports Wi-Fi 6E (6GHz bandwidth). Availability will depend on the regulations of different countries and regions. Activation is possible via Windows® upgrade and software update (in supported countries).
A 6GHz compatible router is required for 6E functionality.
Expansion slot
- 1 x PCIe Gen5x16 slot*
- 1 x vertical M.2 slot (Key E), supports Type 2230 WiFi/Bluetooth PCIe WiFi Module and Intel® CNVi (Integrated WiFi/BT)
*Support PCIe x16 to two PCIe x8 transfer cables
Support NVMe SSD boot
Storage
- 4 x SATA3 6.0 Gb/s ports
- 1 x Super M.2 port (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Super M.2 connector (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
*Supports Intel® Optane™ Technology
Support for Intel® Volume Management Device (VMD)
Support NVMe SSD boot
Support ASRock U.2 kit
Onboard interface
- 1 x RGB LED header*
- 1 x Programmable LED Header**
- 1 x CPU Fan Connector ((4-pin))***
- 1 x Chassis Fan Connector ((4-pin))****
- 1 x Chassis/Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)*****
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V Power Connector (High Density Power Connector)
- 1 x front panel audio jack
- 1 x USB 2.0 header (supports 2 USB 2.0 ports) (supports ESD protection)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports) (supports ESD protection)
- 1 x Front Type-C USB 3.2 Gen2x2 header (supports ESD protection)
* Actual speed depends on USB devices and extension Cable in the chassis.
*Support up to 12V/3A, 36W LED strip
**Supports up to 5V/3A, 15W LED strip
***CPU fan connector supports up to 1A (12W) power supply.
****The chassis fan connector supports chassis fans up to 1A (12W) fan power.
*****Chassis/Water Pump Fan supports up to 2A (24W) water cooling fan.
CHA_FAN1/WP can automatically detect 3-pin or 4-pin fans.
I/O port on the rear panel
- 2 x Antenna Ports
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 4 x USB 3.2 Gen2 ports (10 Gb/s) (supports ESD protection)
- 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s) (supports ESD protection)
- 2 x USB 2.0 ports (supports ESD protection)
- 2 x RJ-45 LAN connector LED indicators (ACT/LINK LED and SPEED LED)
- 1 x BIOS one-key update button
- HD Audio Jack: Line In / Front / Mic
Dimensions
- Mini-ITX ; 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
