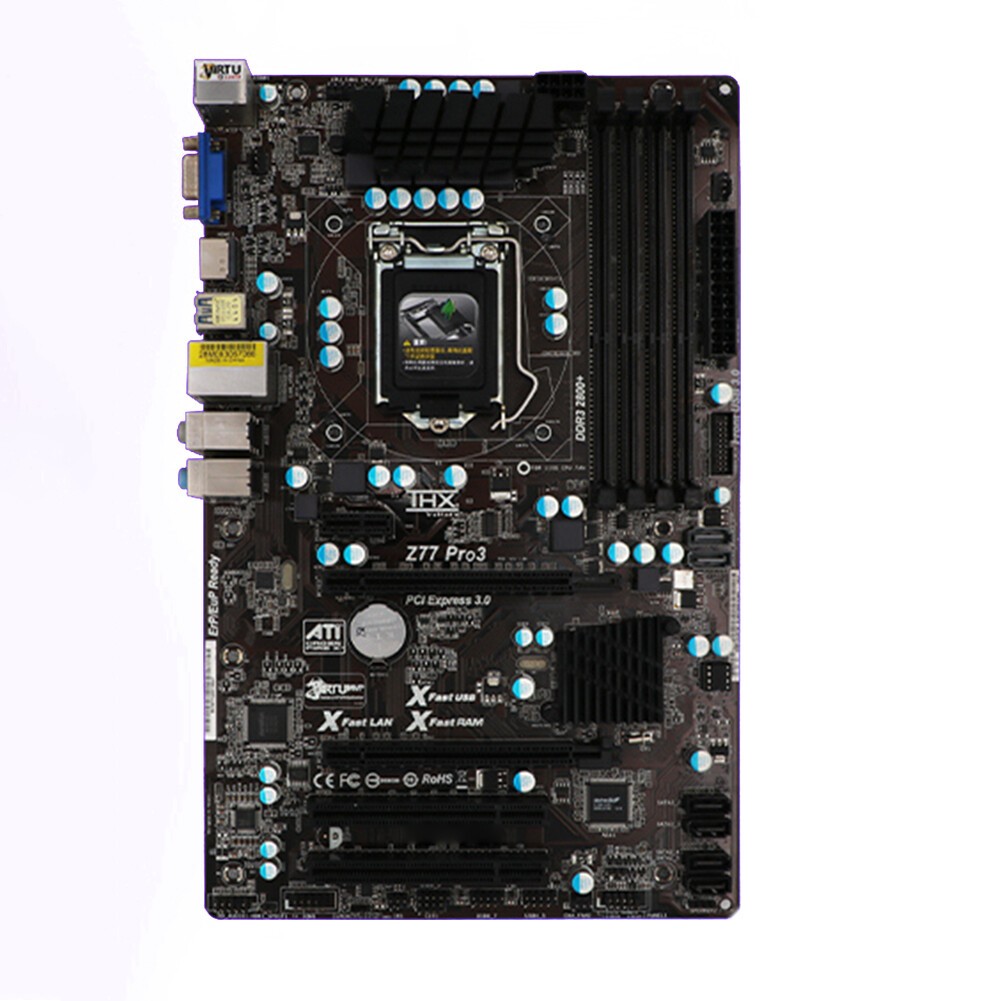

Motherboard Used For ASRock Z77 Pro3 DDR3 LGA 1155 Z77 32GB ATX
Product Features
Motherboard chip
Integrated chip sound card/network card
Main Chipset Intel Z77
Chipset Description Using Intel Z77 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC892 8-channel sound chip
Network card chip Onboard Realtek RTL8111E Gigabit network card
Processor Specifications
CPU type Core i7/i5/i3
CPU socket LGA 1155
CPU Description Support Intel 22/32nm processor
Memory Specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2800 (overclock)/2400 (overclock)/2133 (overclock)/1866 (overclock)/1600/1333/1066MHz memory
Storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot
1×PCI-E X1 slot
PCI slot 2×PCI slot
Storage interface 2 x SATA III interface; 4 x SATA II interface
I/O interface
USB interface 4 × USB3.0 interface (2 built-in + 2 backplane); 10 × USB2.0 interface (6 built-in +4 backplane)
Video interface 1 × VGA interface, 1 × HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface
audio port
plate type
Mainboard form factor ATX form factor
Dimensions 30.5×19.3cm
software management
BIOS performance 64Mb AMI UEFI Legal BIOS with GUI support
Support "Plug and Play"
Compliant with ACPI 1.1, support wake up and automatic power on (Wake Up Events)
Jumper-free support
Support SMBIOS 2.3.1
CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA voltage multi-function regulator
Other parameters
Multi-graphics technology supports AMD CrossFireX hybrid technology
Support AMD Quad-GPU CrossFireX dual-card four-core crossfire technology
Power supply mode 4+1 phase
RAID function Support RAID 0, 1, 5, 10
Hardware monitoring CPU temperature detection
Chassis temperature detection
CPU/Chassis/Power Fan Tachometer
CPU silent fan (can automatically adjust the chassis fan speed according to the processor temperature)
CPU/Case Fan Multi-Speed Control
Voltage real-time monitoring: +12V, +5V, +3.3V, core voltage
Other features Support Turbo Boost2.0 technology
Other parameters Support Microsoft Windows 8/7/7 64-bit/Vista/Vista 64-bit/XP/XP 64-bit operating system
