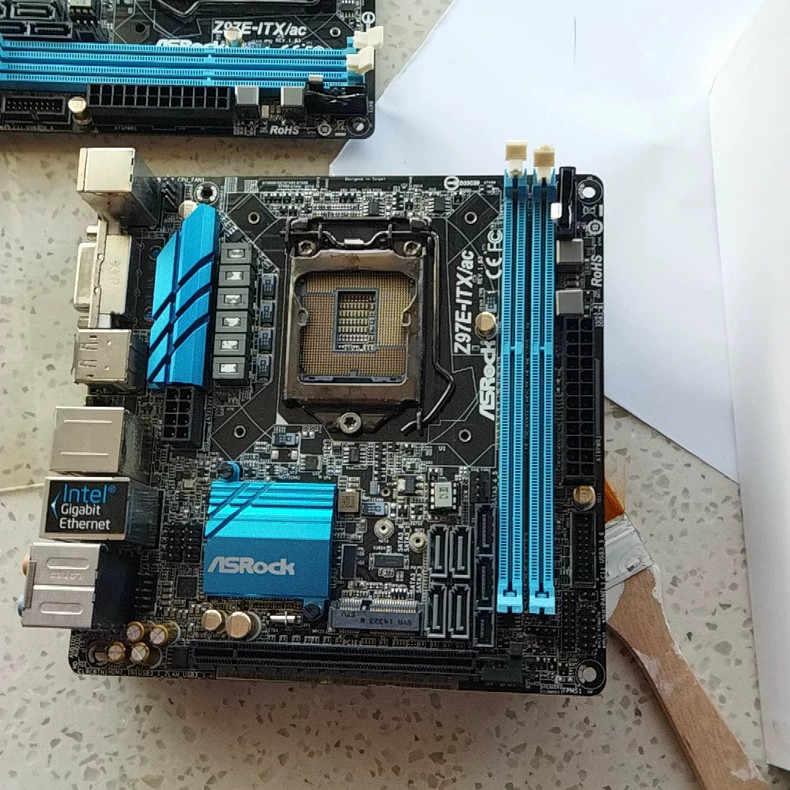

Motherboard Model: ASRock Z97E-ITX/acCPU Socket: LGA 1150Supported CPUs: - 4th / New 4th / 5th Gen Intel Core i7/i5/i3, Pentium, Celeron
- Select Xeon E3-12xx v3/v4 seriesChipset: Intel Z97Form Factor: Mini-ITX (17×17cm)Power Design: 6-phase Digi Power, ASRock Super Alloy (60A choke, DSM, NexFET, Nichicon 12K Platinum caps)
Memory: - Slots: 2×DDR3 DIMM
- Channel: Dual Channel
- Max Capacity: 16GB
- Frequency: DDR3 style="color: #000000; font: 16px / 24px ui-sans-serif, system-ui, sans-serif, 'Apple Color Emoji', 'Segoe UI Emoji', 'Segoe UI Symbol', 'Noto Color Emoji'; font-size: 16px; font-weight: 400; line-height: 24px; text-align: left; white-space: normal; display: list-item; flex: 0 1 auto; flex-direction: row; justify-content: normal; align-items: normal; padding: 0px; margin: 0px; background: rgba(0, 0, 0, 0) none repeat scroll 0% 0% / auto padding-box border-box; background-color: rgba(0, 0, 0, 0);">Features: XMP 1.2/1.3, 15μ gold contacts, DDR3L support
Expansion Slots: - 1×PCIe 3.0 x16 (x16 mode)
- 1×mini-PCIe (WiFi/BT module)
Storage: - 6×SATA III 6Gbps
- 1×SATA Express (shared with SATA3_4/5 and M.2)
- 1×M.2 (SATA/PCIe Gen2 x2, 2230/2242 M-key)
- RAID: 0/1/5/10, Intel RST/Smart Response
Video Output: - DVI-I, HDMI, DisplayPort 1.2
- Max 4K@24Hz, triple monitor, HDMI-In
USB: - Rear: 2×USB3.0, 4×USB2.0
- Headers: 1×USB3.0, 2×USB2.0
Network: - Wired: Intel I218V Gigabit LAN
- Wireless: 802.11ac dual-band WiFi (2.4/5GHz, up to 867Mbps) + Bluetooth 4.0, 2 antennas
Audio: - Realtek ALC1150 7.1CH HD Audio
- TI NE5532 headphone amp (600Ω), Nichicon audio caps, DTS Connect
Rear I/O Panel:PS/2, DVI-I, HDMI, DP, 2×USB3.0, 4×USB2.0, RJ45, WiFi antennas×2, audio jacksExtra Features: UEFI BIOS, full voltage adjustment, HDMI-In, Cloud, APP Shop  |
|
