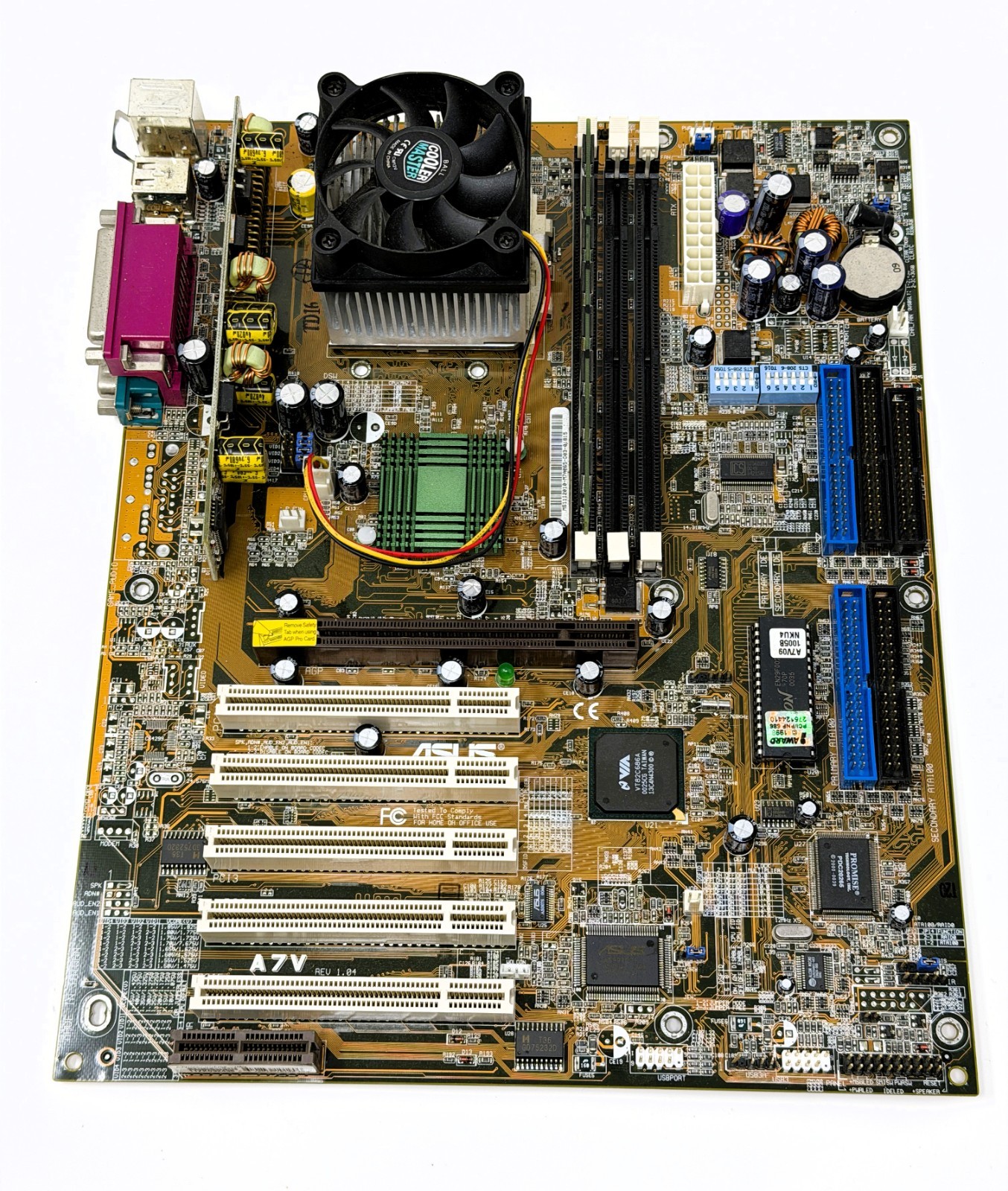

ASUS A7V Rev. 1.04 Socket A Motherboard BundleAMD Athlon 1GHz — 512MB PC133 SDRAM — Cooler Master Heatsink/Fan
Offered here is a classic early Socket A computer platform built around an ASUS A7V Rev. 1.04 ATX motherboard and an installed AMD Athlon 1GHz processor.
The bundle also includes one 512MB PC133 SDRAM DIMM and a period-appropriate Cooler Master aluminum heatsink and ball-bearing cooling fan. This would make an interesting foundation for a late Windows 98 SE, Windows Me, Windows 2000, or other period-correct retro computer project.
This hardware has been stored for an extended period and has not been recently assembled into a complete system or tested.
📋 What Is Included
- ASUS A7V Rev. 1.04 ATX motherboard
- AMD Athlon 1GHz Socket A processor
- One 512MB PC133 SDRAM DIMM
- Cooler Master aluminum CPU heatsink
- Cooler Master ball-bearing cooling fan
- Installed BIOS ROM and CMOS battery shown in the photographs
Only the components specifically listed and shown are included.
🔧 Technical Details
- Manufacturer: ASUS
- Model: A7V
- Board Revision: 1.04
- Form Factor: Standard ATX
- Processor Socket: AMD Socket A / Socket 462
- Installed Processor: AMD Athlon 1GHz
- Processor Family: AMD Athlon “Thunderbird”
- Memory Included: 512MB PC133 SDRAM
- Memory Type: 168-pin SDRAM DIMM
- Memory Slots: Three
- Chipset Family: VIA Apollo KT133
- Southbridge: VIA VT82C686A
- Expansion Slots: One AGP, five PCI, and one AMR
- Primary IDE: VIA chipset IDE controller
- Secondary Storage Controller: Promise PDC20265 UltraATA/100
- IDE Connections: Four 40-pin IDE connectors
- Floppy Connection: Standard floppy-drive header
- Power Connection: 20-pin ATX
- Rear Connections: PS/2 keyboard and mouse, USB, parallel, and serial
- CPU Cooling: Cooler Master heatsink and three-wire fan
No operating system, storage drive, graphics card, sound card, case, power supply, or other system components are included.
⚠️ Testing and Condition
This motherboard bundle has not been recently powered on or POST tested. Sold As-Is.
The following have not been independently verified:
- Motherboard power-up and POST
- BIOS operation and settings
- Processor stability
- Memory detection or diagnostic testing
- Cooler fan operation
- AGP and PCI expansion slots
- IDE and floppy controllers
- USB, serial, parallel, and PS/2 ports
- CMOS battery condition or remaining capacity
Old thermal compound remains on the exposed processor core. It must be carefully cleaned away and replaced with fresh thermal compound before the system is powered on. Socket A processors have exposed cores and require careful heatsink installation to avoid physical damage.
Because its current operating condition is unknown, this bundle is being sold as-is as an untested vintage project, suitable for restoration, experimentation, parts, or collection. Vintage hardware knowledge and compatible supporting components will be required.
The motherboard and components exhibit ordinary cosmetic wear, dust, marks, and evidence of previous installation. Please examine every photograph carefully; the photographs show the exact bundle being offered and form an important part of the description.
📦 Shipping and Packaging
To protect the exposed Socket A processor and motherboard, the heatsink and fan will be removed and packed separately for shipment. The processor will remain secured inside its socket.
The motherboard will be enclosed in anti-static protective material, supported against flexing, and heavily cushioned inside a sturdy outer shipping carton. The RAM and cooler will be individually protected to prevent contact with the motherboard during transit.
Free shipping, tracking, and insurance are included.
🏪 Check Out Our Store!
We sell a wide variety of premium electronics, legacy computer hardware components, and unique vintage collectibles. Please take a look at our store to see what else we have available!
Everything comes from a strictly smoke-free, pet-free home.
❓ Have Questions?
Please contact us before purchasing if you need an additional photograph, visible component marking, or physical measurement. We are happy to clarify anything that can be determined without powering, assembling, or altering the hardware.
