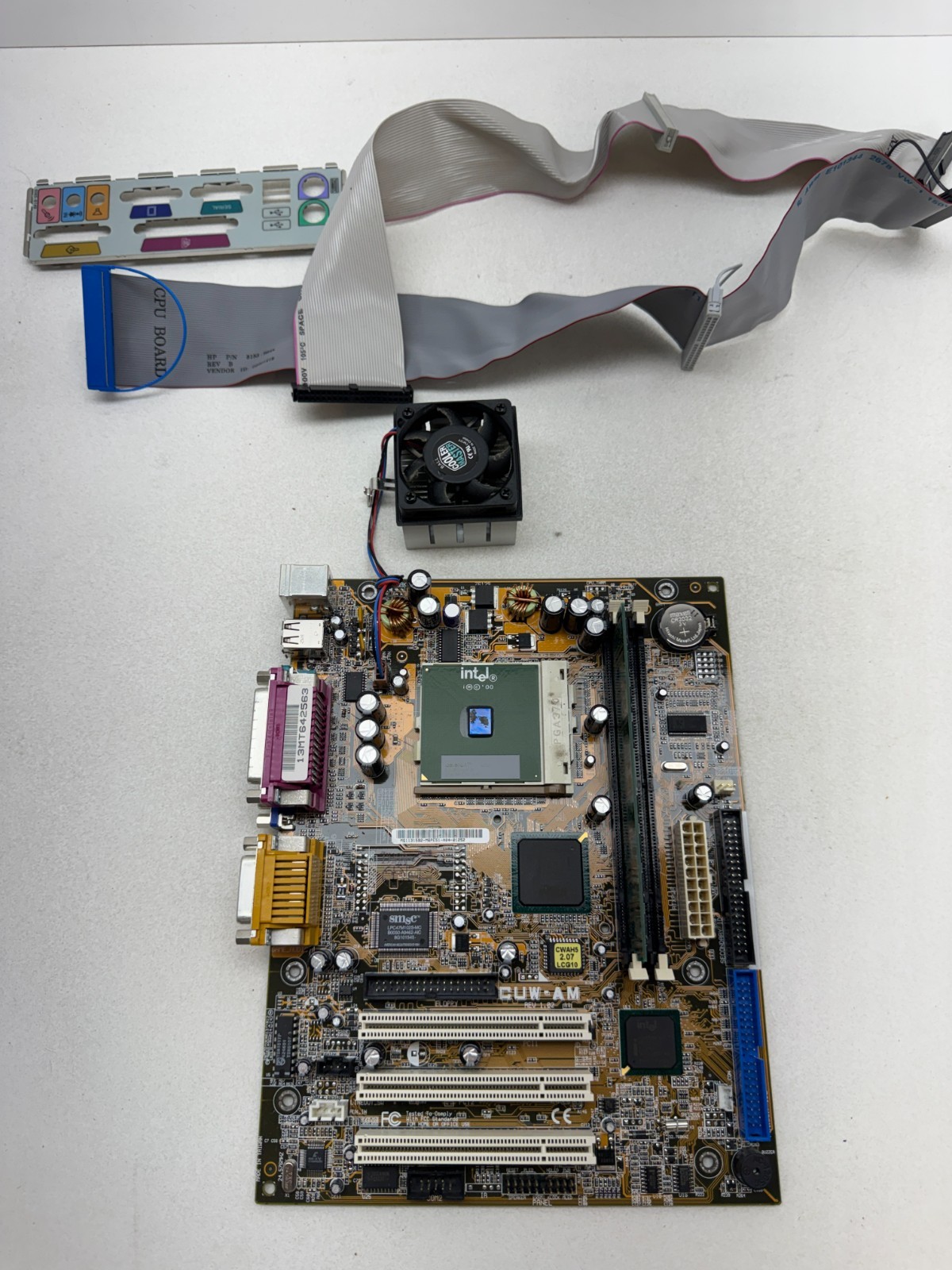

ASUS CUW-AM Socket 370 MicroATX Motherboard Combo - Intel 810 ChipsetIncludes Intel Celeron 766MHz CPU, SDR SDRAM, Cooler Master Cooler, Original I/O Shield & IDE CableIdeal Platform for Retro DOS & Windows 98 PC Builds
Vintage Socket 370 desktop combo built by ASUS for the HP Pavilion series. Based on the Intel 810 chipset with integrated graphics and AC'97 audio. Fully compatible with standard ATX power supplies via a 20-pin power connector. Perfect for retro gaming enthusiasts building a dedicated DOS / Windows 98 / Windows ME system.
Key Highlights for Retro Builds:- Includes the original, rare color-coded metal I/O shield faceplate.- Integrated hardware Gameport / MIDI (DB-15) for vintage joysticks and external synthesizers.- Native Parallel (LPT) and Serial (COM) ports.- 3 x 32-bit PCI slots for dedicated PCI 3D accelerators (e.g., 3dfx Voodoo, Riva TNT) and legacy sound cards.
Technical Specifications:- Motherboard Brand: ASUS for HP Pavilion- Model: CUW-AM REV: 1.02- Socket Type: Socket 370 (PGA370, Coppermine support)- Chipset: Intel 810 (GMCH FW82810 SL3P7 + ICH FW82801AA SL3MZ)- Power Connection: Standard 20-Pin ATX- Form Factor: MicroATX
Processor Specifications:- Model: Intel Celeron 766 MHz (Coppermine-128 architecture)- S-Spec: SL4P6- Base Clock: 766 MHz- Front Side Bus (FSB): 66 MHz- L2 Cache: 128 KB- Voltage: 1.7V
Memory & Storage:- Memory: 2 x 168-pin SDR SDRAM DIMM slots (1 module installed)- Primary & Secondary IDE / PATA connectors (supports up to 4 IDE drives)- 1 x 34-pin Floppy Disk Drive (FDD) header
Rear Panel I/O Ports:- 1 x 15-pin VGA Video Output (Intel 3D Graphics)- 1 x 15-pin Gameport / MIDI Port- 1 x 25-pin Parallel Printer Port (LPT)- 1 x 9-pin Serial Port (RS-232 COM)- 2 x USB 1.1 Ports- 2 x PS/2 Ports (Keyboard & Mouse)- 3 x 3.5mm Audio Jacks (Mic-in, Line-in, Line-out)
untested. The physical condition is exactly as shown in the provided photographs
