graphics card - Black

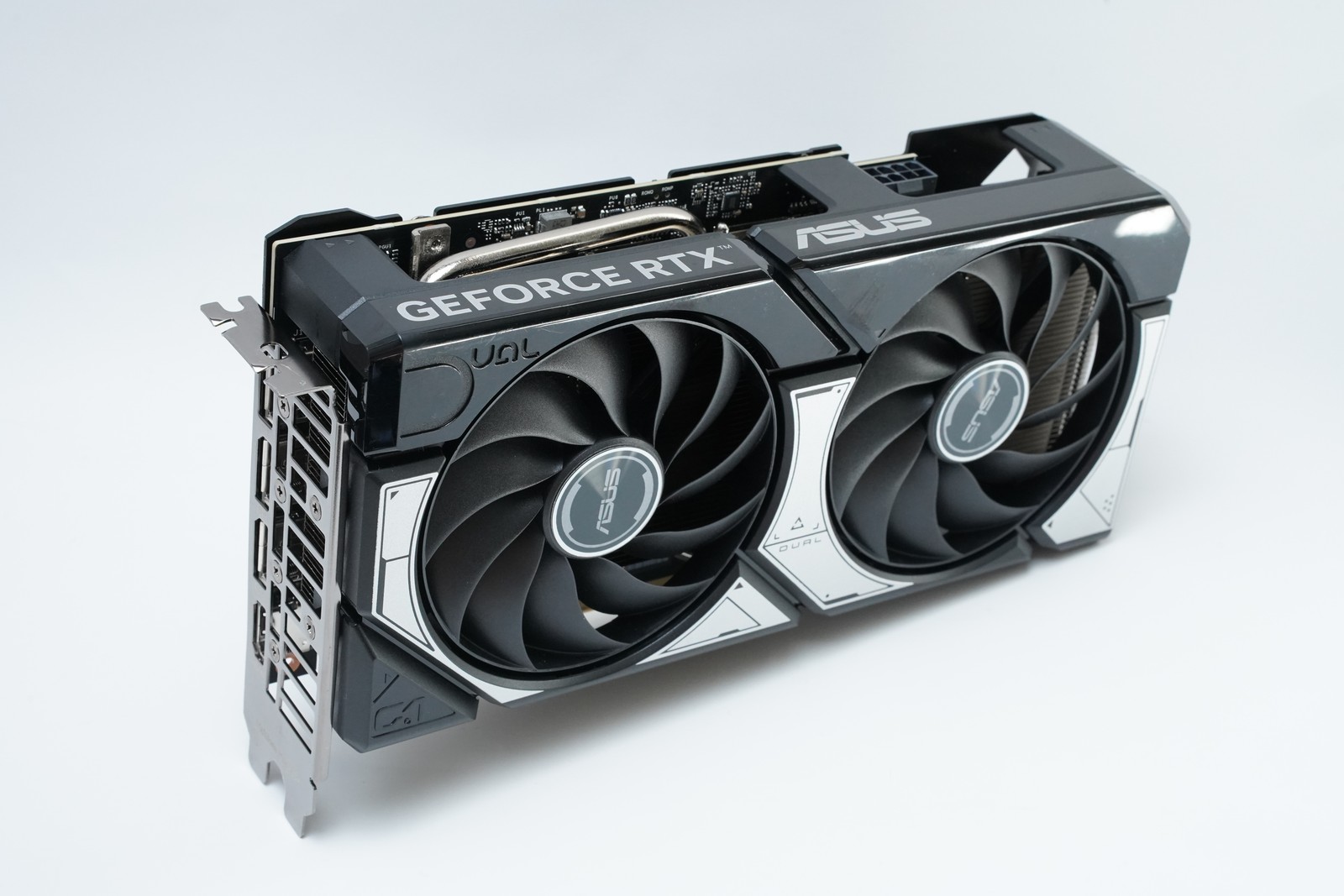

ASUS Dual GeForce RTX 5060 Ti OC
ASUS Dual GeForce RTX 5060 Ti OC desktop graphics card with NVIDIA GeForce RTX 5060 Ti and 16 GB dedicated video memory.
Graphics processorNVIDIA GeForce RTX 5060 TiDedicated video memory16 GBVideo memory typeGDDR7Card interfacePCI Express 5.0Product OverviewYour Displays. Your Desktop. Your Setup.Core SpecificationsCompatibility NotesShipping & SecurityReturns & SupportProduct OverviewGraphics at the heart of your desktop
Built around NVIDIA GeForce RTX 5060 Ti, this graphics card adds dedicated graphics resources to a compatible desktop. Match your games and creative applications to the GPU's supported drivers and features.
Memory devoted to the image
The card has 16 GB of dedicated video memory for textures, scene data and supported graphics workloads. This is GPU memory, separate from your computer's system RAM.
A direct connection inside the PC
Card interface: PCI Express 5.0. Check the motherboard slot, firmware support and case clearance before installation; interface generation alone does not establish the card's lane width.
Your Displays. Your Desktop. Your Setup.Connect the screens you use
Display connections: 1 x HDMI 2.1b; 3 x DisplayPort 2.1b; HDCP 2.3. Pair the selected output with a compatible monitor and cable; available display modes depend on the complete connection.
Cooling built around the card
Cooling design: Two Axial-tech fans with dual-ball bearings and 0dB fan-stop technology. Keep the card's airflow path clear and allow adequate ventilation in the case; noise and sustained clocks vary with workload and system conditions.
Plan the fit before installation
Card dimensions: 229 x 120 x 50 mm; 2.5-slot. Check clearance around the expansion slots, nearby components and power-cable routing before choosing the card for your desktop.
Match power to the complete system
Recommended system power supply: 550 W. Card power connectors: 1 x 8-pin. The PSU recommendation is for the complete computer, not the card's power draw; confirm suitable PSU cables and total system requirements.
Features depend on the application
Supported graphics features: NVIDIA Blackwell architecture; DLSS 4 with Multi Frame Generation; ray tracing; NVIDIA Studio; GPU Tweak III. Availability depends on compatible software, drivers and settings; feature support is not a frame-rate guarantee.
Core SpecificationsGraphics & Dedicated Video MemoryGraphics processorNVIDIA GeForce RTX 5060 TiDedicated video memory16 GBVideo memory typeGDDR7Video memory bus128-bitVideo memory data rate28 GbpsManufacturer-rated core clock2602 MHz boost (default); 2632 MHz OC modeCUDA cores4608Supported graphics featuresNVIDIA Blackwell architecture; DLSS 4 with Multi Frame Generation; ray tracing; NVIDIA Studio; GPU Tweak IIIDisplay Connections & Supported OutputDisplay outputs1 x HDMI 2.1b; 3 x DisplayPort 2.1b; HDCP 2.3Maximum supported displays4Maximum supported output resolution7680 x 4320Installation & System PowerCard interfacePCI Express 5.0Recommended system power supply550 WCard power connectors1 x 8-pinCard dimensions229 x 120 x 50 mm; 2.5-slotCooling & Card IdentityCooling systemTwo Axial-tech fans with dual-ball bearings and 0dB fan-stop technologyCard constructionVented protective backplate; stainless-steel bracket; Performance/Quiet Dual BIOSBrandASUSExact modelDual GeForce RTX 5060 Ti OCMPNDUAL-RTX5060TI-O16GCompatibility Notes
This is a desktop add-in graphics card, not a complete computer or an external graphics enclosure. Confirm motherboard, firmware, operating-system and driver support for the exact card.
A recommended system PSU wattage is not graphics-card board power or measured consumption. Account for the complete system and use the power supply manufacturer's compatible cables.
Maximum supported output resolution describes a supported display signal, not guaranteed gaming resolution or frame rate. Monitor, cable, output and selected mode must all be compatible.
The display-count limit does not promise every maximum resolution and refresh rate simultaneously. Check the exact supported output combination.
The stated core clock is the manufacturer's rating, not a measured result for an individual card. Actual operating clocks depend on workload, temperatures, power and settings.
