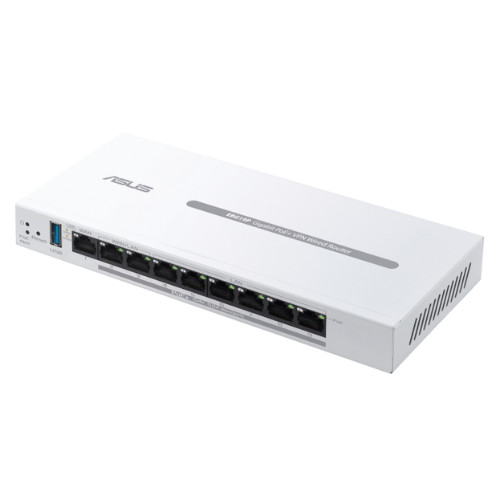

ASUS EBP19P EXPERT Wired Gigabit VPN Router WIFI LAN*8 WAN 90IG08C0-MO3B00
ModelASUS ExpertWiFi EBG19PModel nameEBG19PNetwork standardIEEE 802.1p
IEEE 802.1q
IEEE 802.3
IEEE 802.3ab
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IPv4
IPv6AntennasInternal Bluetooth antenna x 1ProcessorDual-core ARMv8 1.8 GHzMemory256 MB Flash
512 MB RAMOperating modesAiMesh Node ModePortsGigabit WAN port x 1
Gigabit LAN port x 8 (changeable WAN/LAN x 2)
USB 3.2 Gen 1 x 1ButtonsReset buttonLED indicatorPower x 1
USB x 1Power sourceAC input: 110V ~ 240V (50 ~ 60Hz)
DC output: 54V, max. current 2.278ADelivery setExpertWiFi EBG19P
RJ-45
cable Power supply
Warranty card
User manualWeight530 gProduct Dimensions212 x 95 x 26 mmRemarkEquipment and color may vary in different regions.AiMeshAiMesh
• AiMesh Core Router
• AiMesh NodeDevice access controlBlock access to unwanted websites and apps
Web and app filters
Time scheduling
Safe browsing
Personalized internet schedule
• Maximum Device Access Control profile: 12
• Maximum Device Access Control - Content Filtering Rule: 12Control panelControl panelSelf-defined networkYou can create additional networks for different purposes, these networks are separated from the main network domain to provide increased security and create a comprehensive network environment with individual settings
• Employee
• Guest portal
• Guest network
• Scheduled network
• IoT network
• VPN network
• Maximum self-defined network rule: 16
VLAN
Bandwidth limiter
AP isolate
DNS server Firewall Maximum Keyword Filter: 64
• Firewall Maximum Network Service Filter: 32
• Firewall Maximum URL Filter: 64AiProtectionAiProtection Pro
• Router Security Assessment
• Malicious Website Blocking
• Two-way IPS
• Prevent and Block Infected DevicesVPNVPN Client L2PT
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Surfshark SupportTraffic managementAdaptive QoS
• Bandwidth Monitoring
• Bandwidth Limiter
Traditional QoS
Traffic Monitoring
• Real-time Traffic Monitoring
• Wired Traffic Monitoring
Traffic Analyzer
• Website HistoryWANInternet Connection Type
• PPPoE
• PPTP
• L2TP
• Auto IP
• Static IP
• IPSec
Dual WAN
Multi WAN Group
WAN Aggregation
3G / 4G LTE Adapter
Auto Mobile Modem 4G / 5G
Port Forwarding
• Max. Port Forwarding Rules :64
Port Triggering
• Max. Port Triggering Rules :32
DMZ
DDNS
NAT Passthrough
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• PPPoE RelayLANDHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
Wake on LAN (WOL)
VLANUSB applicationAutomatic 4G/5G mobile modem
Safe disk removal
Media server
Samba server
FTP server
Shared folder access rightsUser interfaceWeb: ASUSWRT
App: ASUS ExpertWiFi APPManagementManaging multiple sitesAdministrationConfiguration backup and restore
Diagnostic tools
response system System
log
Notification of new device connection
Login Captcha
Connection diagnostics
Automatic update
