Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O back panel

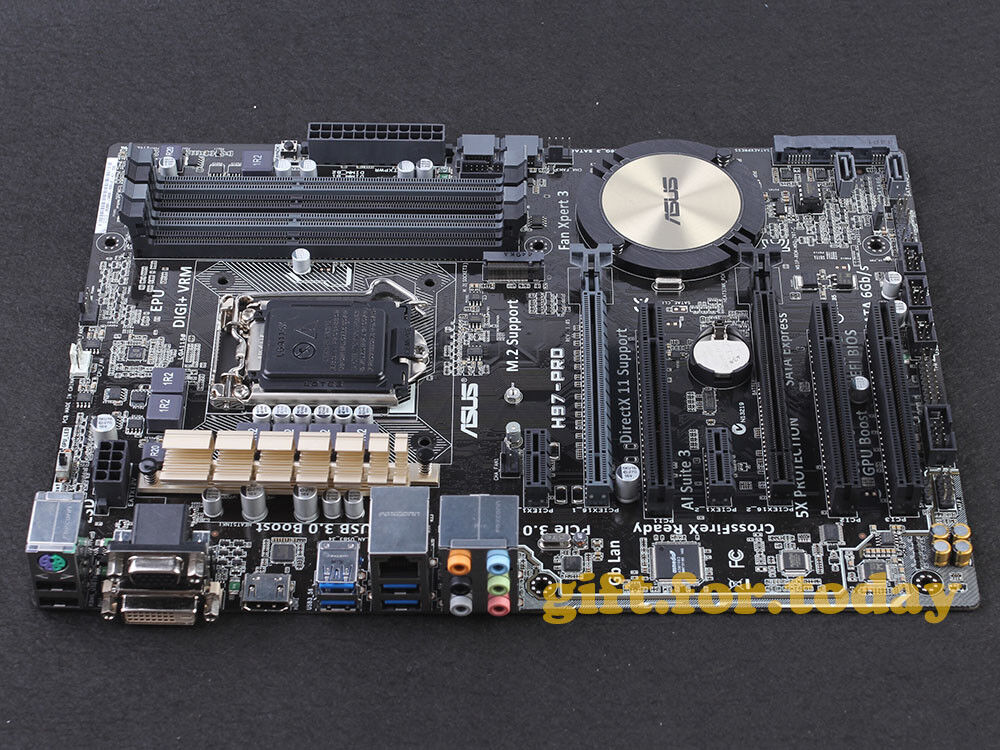

Motherboard Introduction

CPU

Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list

Chipset

Intel® H97

Memory

4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
2 x PCIe x1
3 x PCI

Storage

Intel® H97 chipset :
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3

LAN

Intel® I218V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)

Audio

Realtek® ALC892 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

USB Ports

Intel® H97 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® H97 chipset :
8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)

Special Features

ASUS 5X Protection :
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- MemOK!
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Interactive HomeCloud
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-Connector

Operating System Support

Windows® 8.1
Windows® 8
Windows® 7

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
6 x Audio jack(s)

Internal I/O Ports

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE

Form Factor

ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )

Management Solution

Intel® SBA support

Note

*1: The PCIe x1_1, PCIe x1_2 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
*2: M.2 Socket 3 shares bandwidth with SATA Express port.
*3: These functions will work depending on the CPU installed.

Shipping

Economy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
