Please note: This product does not include batteries as they are prohibited items.AMD AM4 uATX motherboard with 5X Protection III, DDR4 3200MHz, SATA 6Gbps and USB 3.1 Gen 1
- Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
- 5X Protection III: Multiple hardware safeguards for all-round protection
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

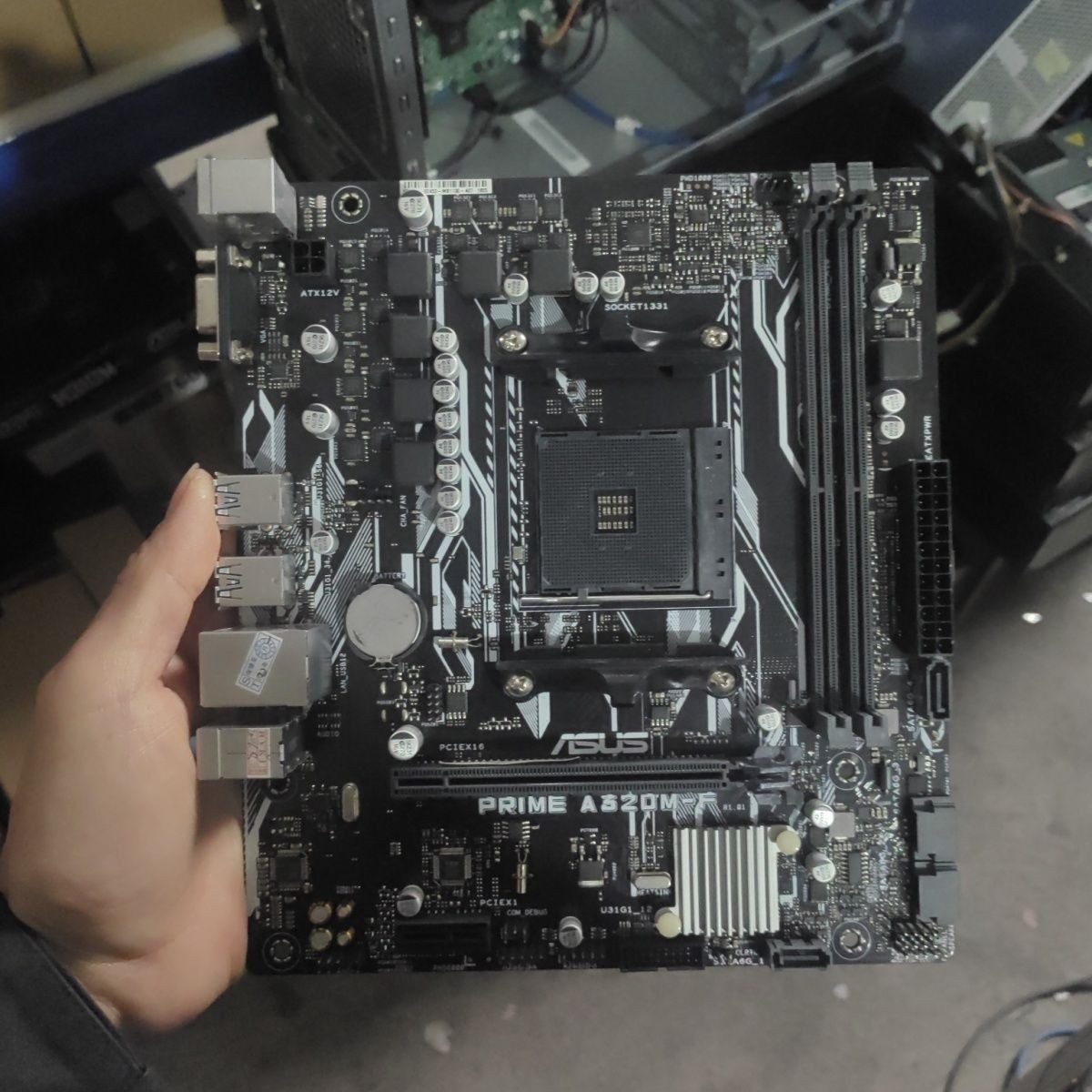

ModelPRIME A320M-FCPUAMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors
* Refer to [link removed by ] for CPU support listChipsetAMD A320Memory3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to [link removed by ] for the Memory QVL (Qualified Vendors Lists).GraphicIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
VGA output support : D-Sub port
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)Expansion Slots3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD A320 chipset
2 x PCIe 2.0 x1StorageAMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10LANRealtek® RTL8111H, 1 x Gigabit LAN Controller(s)AudioRealtek® ALC887 8-Channel High Definition Audio CODECUSB Ports3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD A320 chipset :
2 x USB 3.0 port(s) (2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)Special FeaturesASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMMBack I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)Internal I/O Ports1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector
Please note: This product does not include batteries as they are prohibited items.All motherboards in this store are used motherboards. Motherboards are updated rapidly, so the pictures displayed on the page may not match the actual ones. Please contact customer service to obtain the latest actual pictures.
