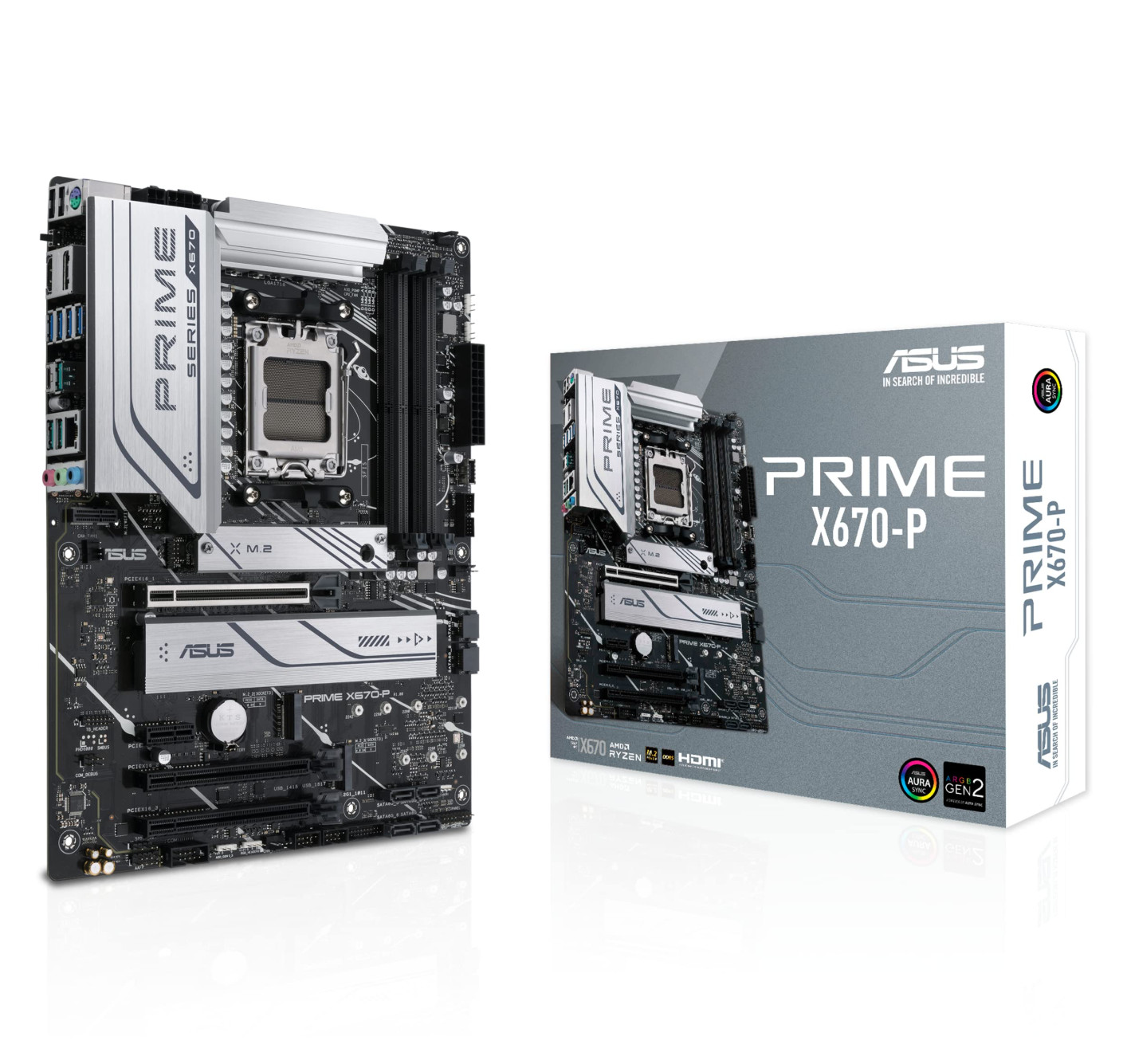

🔧 ASUS Prime X670-P ATX Motherboard (AM5, DDR5, USB4, 2.5Gb LAN)
Built for Ryzen 7000 Series | Future-Proof Power | Advanced Cooling

Key Features:

• ✅ AMD AM5 Socket – Compatible with AMD Ryzen 7000 Series desktop processors.

• ⚡ 12+2 DrMOS Power Stages – Enhanced power delivery for stable and efficient performance.

• 🚀 Next-Gen Connectivity – Supports M.2 PCIe 5.0, USB 3.2 Gen 2x2 Type-C, USB4 header, and Realtek 2.5Gb Ethernet.

• 🧊 Advanced Cooling – Features large VRM heatsinks, M.2 and chipset heatsinks, hybrid fan headers, and AI Cooling II via Fan Xpert 4.

• 🧠 DDR5 Memory Support – 4 DIMM slots for DDR5 6400+ (OC), dual-channel, with ASUS OptiMem II technology for better signal integrity and overclocking.

Expansion & Storage:

• PCIe Slots:

  • 1 × PCIe 4.0 x16 (SafeSlot Core+, x16 mode)

  • 2 × PCIe 4.0 x16 (x4 mode)

  • 1 × PCIe 3.0 x1

• M.2 Slots:

  • 1 × M.2 2280 (PCIe 5.0 x4)

  • 1 × M.2 22110 (PCIe 4.0 x4)

  • 1 × M.2 2280 (PCIe 4.0 x4)

• SATA Ports:

  • 6 × SATA 6Gb/s

USB & I/O:

• 1 × USB 3.2 Gen 2x2 Type-C

• 3 × USB 3.2 Gen 2 Type-A

• 4 × USB 3.2 Gen 1 Type-A

• USB4 Header, USB 3.2 Type-C front panel connector

• Multiple internal USB headers supporting expansion

Other Highlights:

• 🎮 RGB Ready – Addressable Gen 2 headers and Aura Sync RGB support.

• 🎧 Audio & Networking – Realtek 2.5Gb Ethernet, 3.5mm jacks, and HDMI + DisplayPort output.

• 🛠 BIOS FlashBack™ – Easily update BIOS without a CPU or memory installed.

Specifications Summary:

• Form Factor: ATX

• Memory Support: Up to 256GB DDR5, Non-ECC, Un-buffered

• Chipset: AMD X670

• Cooling: Passive & Active solutions with AI support

• Ideal For: High-performance builds, gaming, and future-ready PC setups
