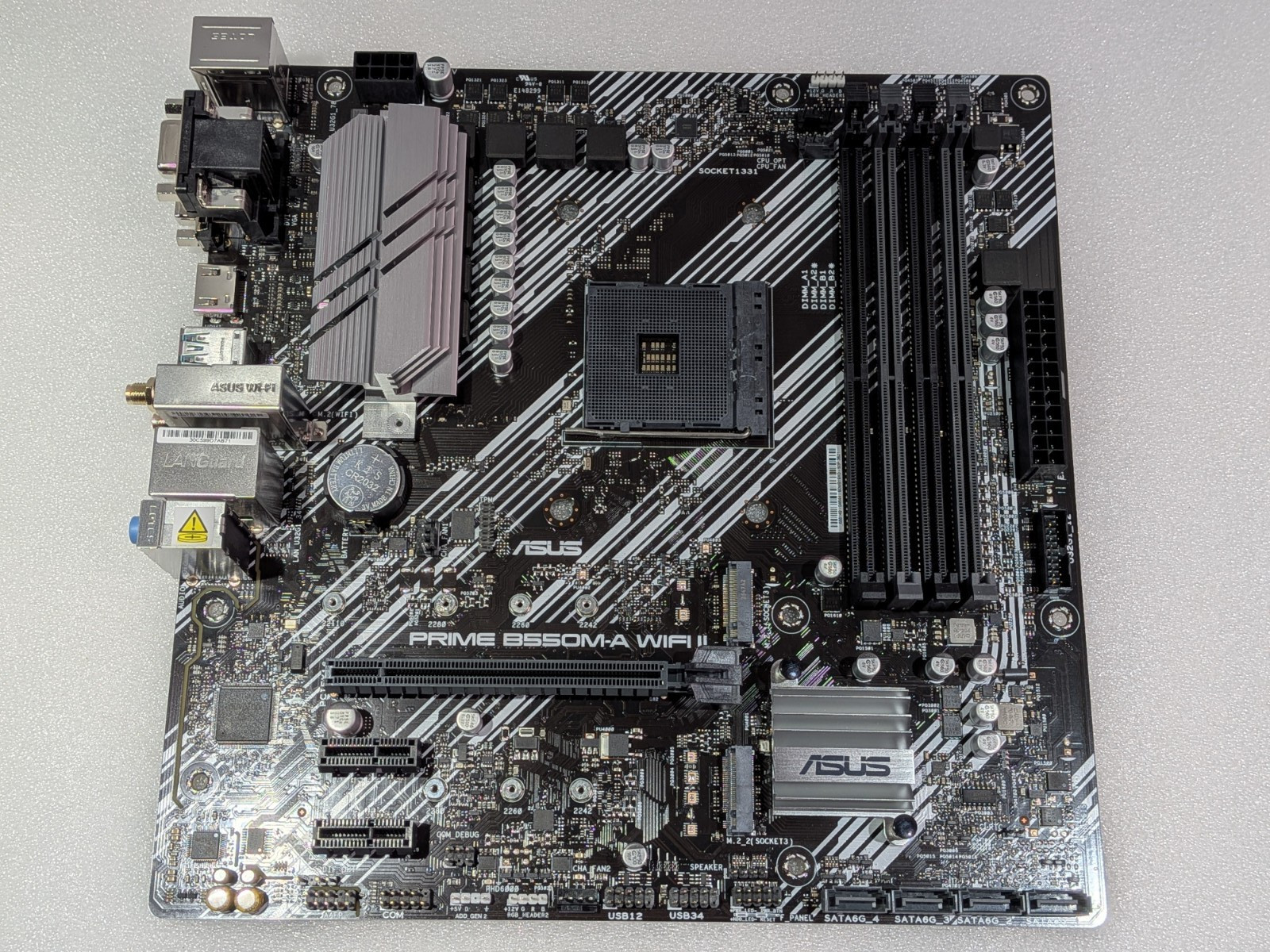

ASUS Prime B550M-A WiFi II Micro ATX motherboard built around the AMD B550 chipset and AM4 socket. Supports select AMD Ryzen 3000, 4000 G-Series, 5000, and 5000 G-Series desktop processors.
Features PCIe 4.0 support with compatible processors, dual M.2 storage, integrated WiFi 6, Bluetooth 5.2, Gigabit Ethernet, HDMI 2.1 output, and ASUS Aura Sync RGB support.
⚙️ Technical Specifications
Brand: ASUS
Model: Prime B550M-A WiFi II
Chipset: AMD B550
CPU Socket: AM4
Form Factor: Micro ATX
Dimensions: 9.6" x 9.6" / 24.4 x 24.4 cm
Memory: 4 x DDR4 DIMM Slots
Maximum Memory: 128GB
Memory Architecture: Dual Channel
ECC Support: Yes, CPU dependent
Primary Expansion Slot: PCIe 4.0 x16 with compatible Ryzen 3000 / 5000 processors
Additional Expansion: 2 x PCIe 3.0 x1
Storage: 2 x M.2 Slots
SATA: 4 x SATA 6Gb/s
RAID Support: RAID 0, 1, 10
Wireless: 2x2 WiFi 6 / 802.11ax
Wireless Bands: 2.4GHz / 5GHz
Bluetooth: 5.2
Ethernet: Realtek 1Gb Ethernet
Video Outputs: HDMI, DVI-D, D-Sub
HDMI Support: Up to 4K @ 60Hz per HDMI 2.1 specification
Rear USB: 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A
Audio: Realtek 7.1 Surround Sound HD Audio Codec
RGB Support: 2 x Aura RGB Headers + 1 x Addressable Gen 2 Header
BIOS: 256Mb UEFI AMI BIOS
📦 Box Contents
• ASUS Prime B550M-A WiFi II Motherboard
📊 Condition
New open box. Comes as shown. OEM box will be shipped without an additional outer box – as shown.
🚚 Shipping Info
Ships via USPS / FedEx / UPS (best option selected at time of fulfillment).
🤝 Seller Commitment
You’ll receive exactly what’s described and pictured. Photos are part of the description; please review them carefully and message with any specific questions before purchase. I value your trust and strive to deliver exactly what I promise. Positive response and 5-star ratings are important and always appreciated. Thank you for choosing Vegas E sales!
