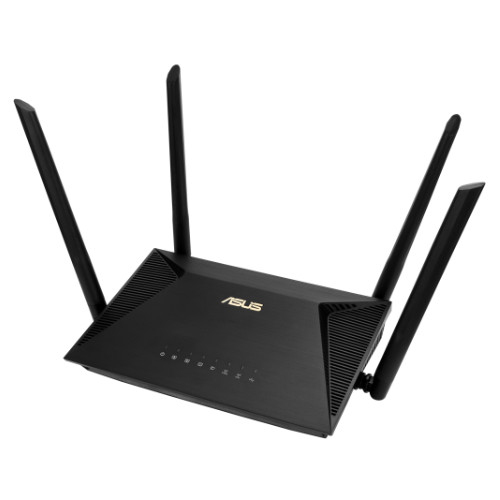

ASUS RT-AX53U AX1800 Dual-band Router 2.4GHZ/5GHZ WIFI6 4*ANT 90IG06P0-MO3510
ModelRT-AX53UNetwork standardsIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6Performance levelMaximum performance AX1800 AX: 1201 Mbps + 574 MbpsData transfer speed802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11ac: up to 867 Mbps
802.11ax (2.4 GHz): up to 574 Mbps
802.11ax (5 GHz): up to 1201 MbpsAntennasEx-antennas*4MIMO scheme2.4 GHz 2 x 2
5 GHz 2 x 2ProcessorDual-core (4 VPE)RAM128MB Flash
256MB RAMAcceleration toolsOFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidthOperating frequency2.4GHz / 5GHzOperating modesAccess Point, Media Bridge, Repeater, RouterPortsRJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3, USB Port x1
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3, USB 2.0 Port x1ButtonsWPS Button, Reset Button, Power SwitchLED indicatorPower x 1
2.4G x 1
5G x 1
LAN x 3
WAN x 1
USBX1Power supplyAC Input : 100V~240V(50~60Hz)
DC Output : 12 V with max. 1.5A currentEquipmentRT-AX53U
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1Weight346gDimensions190 x 126 x 45 mmAiMeshAiMesh
Primary AiMesh router
AiMesh nodeParental controlIndividual Internet access scheduleGuest networkGuest networkSecurityOpen system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal
WPS
Let's Encrypt
SSH
Network screenAiProtectionBlocking malicious sites
Detecting and blocking infected devicesVirtual Private Network (VPN)Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTPTraffic managementBandwidth Limiter
Traditional QoS
Traffic Manager
Real-time Traffic Monitoring
Wired Traffic Monitoring
Wireless Traffic MonitoringWAN- Internet Connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G/4G LTE Modem
Port Switching
DMZ
DDNSLANDHCP Server
IGMP Snooping
IPTV
Manual IP Address Assignment
Wake on LAN (WOL)Wireless networkUTF-8 SSID
Wi-Fi filtering by MAC address
Wireless scheduler
Airtime parity
RADIUS server
Universal beamforming
Explicit beamformingUSB applicationSafely disconnecting a disk
Download master
AiDisk
Media server
Samba server
FTP server
Shared folder access rightsAdministrationSaving and restoring settings
Diagnostic tools
response system
System log
