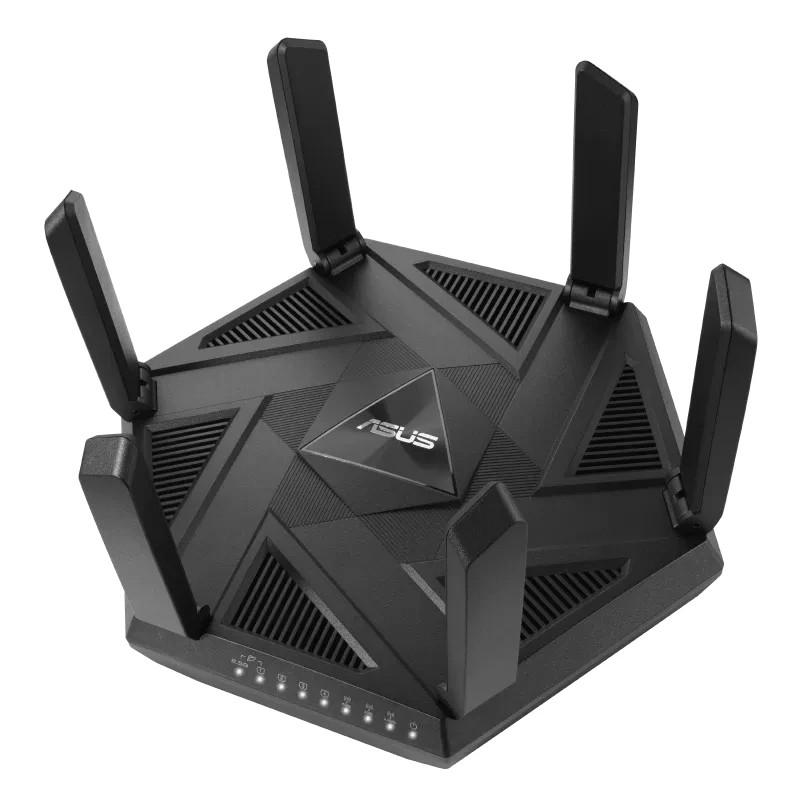

ASUS RT-AXE7800 AiMesh WLAN RouterAXE7800 ultimate AX performance : 574+4804+2402 MbpsNetwork Standard
IPv6
IPv4
WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment
AXE7800 ultimate AX performance : 574+4804+2402 Mbps
WiFi Data Rate
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
WiFi 5 (802.11ac) : up to 500 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps
External antenna x 6 (non-detachable)
6GHz 2x2
5GHz 4x4
2.4GHz 2x2
1.7GHz quad-core processor
256 MB Flash and 512 MB DDR4 RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
RJ45 for Gigabits BaseT for WAN/LAN x 1,
RJ45 for Gigabits BaseT for LAN x 3,
USB 3.2 Gen 1 Port x 1,
Power on/off switch
Reset Button
WPS Button
LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
6HGz x 1
2.5G WAN/LAN1 x 1
1G WAN/LAN1 x 1
1G LAN x 3
AC Input : 110V~240V(50~60Hz)
DC Output: 12 V with max. 3.0 A current
AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps.", Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network.", • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
Security
AiProtection, WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
AiProtection
• Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking
VPN
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Traffic Control
Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, WAN Aggregation, 3G / 4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
LAN
DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)
Wireless
MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Backup and Restore, Diagnosis tools, response System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
