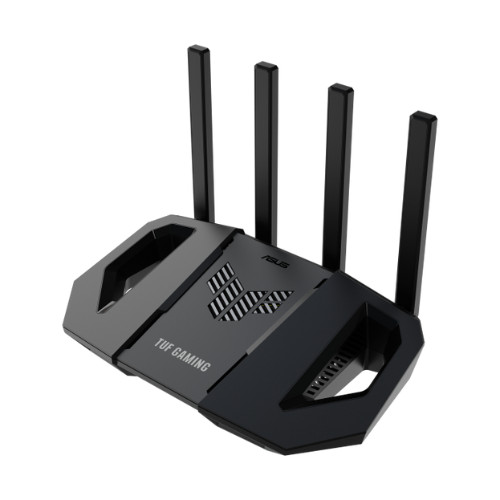

ASUS TUF-BE3600 Dual-Band Gaming Router 2.4GHz/5GHz WIFI7 4*ANT 90IG0900-MO9C00
ModelTUF Gaming BE3600 (TUF-BE3600)Network standardsIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6Performance levelMaximum performance BE3600: 688 + 2882 MbpsData transfer speed802.11ax (5 GHz): up to 2402 Mbps
WiFi 7 (802.11be) (2.4 GHz): up to 688 Mbps
WiFi 7 (802.11be) (5 GHz): up to 2882 MbpsAntennasExternal antenna x 4 pcsMIMO scheme2.4 GHz 2 x 2
5 GHz 2 x 2ProcessorQuad-core 2 GHz processorRAM256 MB Flash
1 GB RAMAcceleration toolsOFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: Standard and Universal
4096-QAM high data rate
Bandwidth 20/40/80/160 MHzOperating frequency2.4 GHz
5 GHzOperating modesWireless Router Mode
Access Point Mode
Media Bridge ModePorts1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1ButtonsWPS button, reset button, power buttonLED indicatorPower x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1Power supplyAC input: 100V ~ 240V (50 ~ 60Hz)
DC output: 12V max. current 2AEquipmentTUF Gaming BE3600 Dual Band WiFi 7 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty cardWeight561 gDimensions274 x 168 x 205 mmAiMeshAiMesh
Primary AiMesh router
AiMesh nodeGamesGame Boost / Acceleration
Mobile Game Mode
Game PortParental controlParental Controls
Time Scheduling
Safe Browsing
Individual Internet Access ScheduleGuest networkGuest Network
• Maximum number of guest network rules: 2.4 GHz x 3, 5 GHz x 3
Guest network connection time limitSecurityAiProtection
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Scan
Network Screen
• Number of keywords in firewall filter (max.) :64
• Network service firewall filter (max.) :32
• Firewall URL filter (max.) :64AiProtectionAiProtection
Blocking malicious sites
Two-way IPS
Detecting and blocking infected devicesVirtual Private Network (VPN)Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN FusionTraffic managementAdaptive QoS
Bandwidth Manager
Bandwidth Limiter
- Max. Bandwidth Limiter Rules: 32
Traditional QoS
- Max. Traditional QoS Rules: 32
Traffic Manager
Real-time Traffic Monitoring
Wired Traffic
Monitoring Wireless Traffic Monitoring
Traffic Analyzer
- Traffic Analysis Period: Daily, Weekly, Monthly
Website Browsing HistoryWAN- Internet Connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G/4G LTE Modem
Port Forwarding
- Max. Port Forwarding Rules:64
Port Switching
- Max. Port Switching Rules:32
DMZ
DDNS
- NAT Pass-Through:PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relayLANDHCP Server
IGMP Snooping
IPTV
Manual IP Address Assignment
- Max. number of IP Address Assignment Rules: 64
Wake on LAN (WOL)Wireless networkUTF-8 SSID
Wi-Fi MAC Address Filtering
- Max. MAC Address Filters: 64
Wireless Scheduler
Airtime Parity
RADIUS Server
Universal Beamforming
Explicit BeamformingUSB application- File system: HFS+, NTFS, vFAT, ext2, ext3, ext4
Safe disk removal
Download masterTime Machine
media serverSamba serverFTP serverShared folder access rightsAdministrationSave and restore settings
Diagnostic tools
response system
System log
Notification of new device connection
Login Captcha
Connection diagnostics
Automatic firmware update
