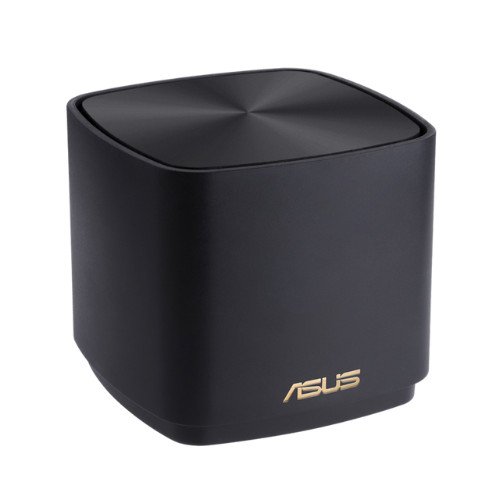

ASUS ZenWiFi XD4 PLUS 3-PK BLACK 2.4GHz/5GHz WIFI6 2*ANT 90IG07M0-MO3C50
Network standardsIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6Product segmentMaximum performance of the AX1800 AX system: 1201 Mbps + 574 MbpsData transfer speed802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n: up to 400 Mbps 802.11n
with TurboQAM: up to 1148 Mbps
802.11ac: up to 1733 Mbps
802.11ax (2.4 GHz): up to 1300 Mbps
WiFi 6 (802.11ax) (5 GHz): up to 1201 MbpsAntennas2 internal dual-band antennasMIMO schemeMIMO technology
2.4 GHz 2 × 2
5 GHz 2 × 2RAM128 MB Flash, 256 MB RAM
128 MB Flash
256 MB RAMAcceleration toolsMIMO technologyOperating frequency2.4 GHz / 5 GHzPortsRJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1ButtonsWPS button, reset buttonLED indicatorPower x 1FeedingAC input: 110V ~ 240V (50 ~ 60Hz)
DC output: 12V with max. current 1.5A
AC input: 110V ~ 240V (50 ~ 60Hz)
DC output: 12V with max. current 1.5AEquipmentXD4 Plus
‧RJ45 Ethernet cable
‧Power adapter
‧Quick start guide
‧Warranty card
‧Screw packMass, g307 gDimensions with antennas (L*W*H) mm90 x 90 x 85 mmAiMeshAiMesh
Primary AiMesh router
AiMesh nodeParental controlParental Controls
Individual Internet Access ScheduleMobile appASUS Router APPGuest networkGuest Network
- Max Guest Network Rules: 6
Guest Network Connection Time LimitSecurityWPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let's Encrypt
SSH
Network screenAiProtectionAiProtection Classic
Block malicious websites
Detect and block infected devicesVirtual Private Network (VPN)VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTPTraffic management• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
- Max. number of traditional QoS rules: 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic MonitorWAN- Internet connection type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port forwarding
Port triggering
DMZ
DDNSLANDHCP Server
IGMP snooping
IPTV
Manually assign IP address
- Max. number of IP address assignment rules: 64
Wake on LAN (WOL)Wireless networkUTF-8 SSIDAdministrationConfiguration backup and restore
Diagnosis tools
response system
System log
