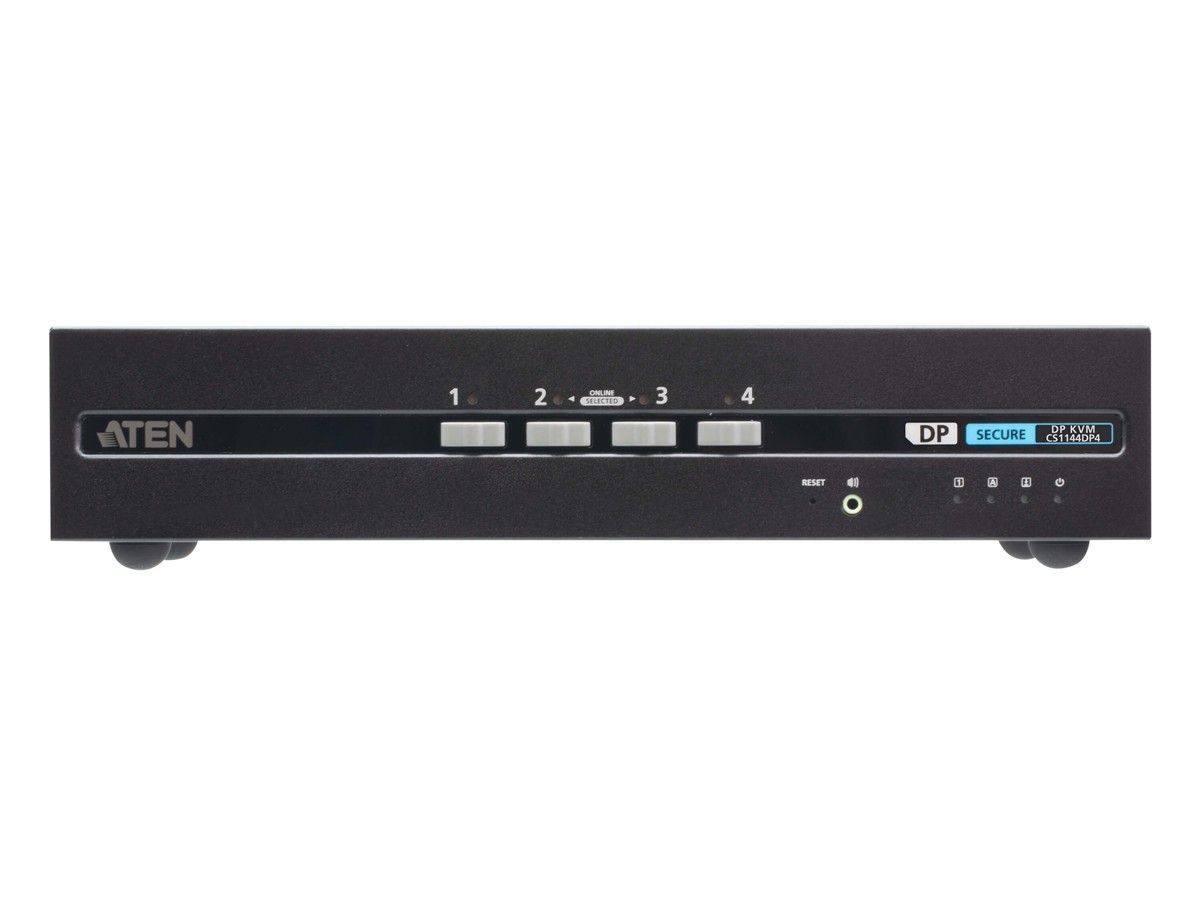

for All Products Aten CS1144DP4 4-Port USB DisplayPort Dual Display Secure KVM Switch PSD PP v4.0 TAA Manufacturer:Aten SKU:CS1144DP4 Condition:New Warranty:2 Years
The CS1144DP4 is a NIAP Common Criteria compliant PSD PP v4.0 secure KVM switch designed to share a single keyboard, mouse, dual DisplayPort monitor pair and speaker between up to four computers while enforcing strict data isolation. It prevents direct data transfer between connected systems by using unidirectional data paths and administrative device filtering. The unit is produced in Taiwan and built for sensitive multi-class network environments.
Key security features include always-on chassis intrusion detection that renders the unit inoperable if tampering is detected, tamper-evident labels, and non-reprogrammable firmware to prevent unauthorized modification. Peripheral access is restricted through configurable USB HID filtering and strict audio filtration that supports speaker-only analog audio. Port selection is deliberately limited to local pushbuttons or a Remote Port Selector to minimize remote attack surfaces.
On the video and performance side the switch supports dual DisplayPort console outputs and up to 3840 x 2160 at 30 Hz resolutions. Video DynaSync optimizes display timing and eliminates boot-up display issues when switching sources. The KVM automatically purges keyboard and mouse data after transmission and when port focus is changed to protect user data and prevent leakage between security domains.
Connectivity includes two DisplayPort console outputs, two USB Type-A console ports, a front-panel analog mini-stereo speaker jack, four USB Type-B KVM ports, eight DisplayPort KVM ports and four rear analog mini-stereo jacks. A rear RJ-11 port supports an optional Remote Port Selector which is sold separately. The device uses USB emulation for keyboard and mouse compatibility and supports common HID devices subject to administrative filtering rules.
Typical use cases include classified government desktops, military command centers, healthcare workstations handling separate networks, and financial trading or banking environments where strict data separation is required. The product is tuned for environments that require controlled switching and audit-capable administration rather than automatic switching or network-based control.
The CS1144DP4 installs on a desktop or in secure console setups with a rugged metal enclosure and compact footprint. Front panel status LEDs show power, selected port and security indicators for quick verification. The unit ships with a power cord and user instructions and is engineered for straightforward deployment while meeting demanding security and operational Common Criteria CompliantCompliantCompliant with PSD PP v4.0Protection Profile for Peripheral Sharing Device v4.0Always-on chassis intrusion detectionYesTamper-evident labelsYesNon-reprogrammable firmwareYesRestricted peripheral connectivityUSB HID filtering, video rejectionPort selectionPushbutton, Remote Port SelectorLED indicatorsPeripheral filtering, KVM security statusStrict audio filtrationAnalog speaker onlyRugged metal enclosureMetalComputer Connections4Port SelectionPushbutton, Remote Port SelectorConnectorsConsole Ports2 x DisplayPort Female (Black), 2 x USB Type-A Female (White), 1 x Mini Stereo Jack Female (Green) front panelKVM Ports4 x USB Type-B Female (White), 8 x DisplayPort Female (Black), 4 x Mini Stereo Jack Female (Green)Power1 x 3-prong AC SocketRemote Port Selector1 x RJ-11 (Black) rear panelSwitchesPort Selection 4 x Pushbuttons, Reset 1 x Semi-recessed Pushbutton, Power 1 x RockerLEDsPower 1 (Green), Online / Selected 4 (Orange), Video 2 (Green), Key Lock 3 (Green)EmulationKeyboard / Mouse USBVideoMax. 3840 x 2160 at 30 Hz (UHD)Maximum Input Power Rating100-240V~, 50-60 Hz, 1.5APower ConsumptionAC110V:13.9W:87BTU/h, AC220V:13.9W:87BTU/hNoteThe measurement in Watts indicates the typical power consumption of the device with no external loadingNoteThe measurement in BTU/h indicates the power consumption of the device when it is fully loadedOperating Temperature0-50°CStorage Temperature-20-60°CHumidity0 - 80% RH, Non-condensingHousingMetalWeight2.15 kg (4.74 lb)Dimensions (L x W x H)33.50 x 16.39 x 6.55 cm (13.19 x 6.45 x 2.58 in.)NoteFor some of rack mount products the standard physical dimensions of WxDxH are expressed using a LxWxH format OUR PERKS Great Prices and
