INCLUDING RACKEARS
EXCLUDING CABLES

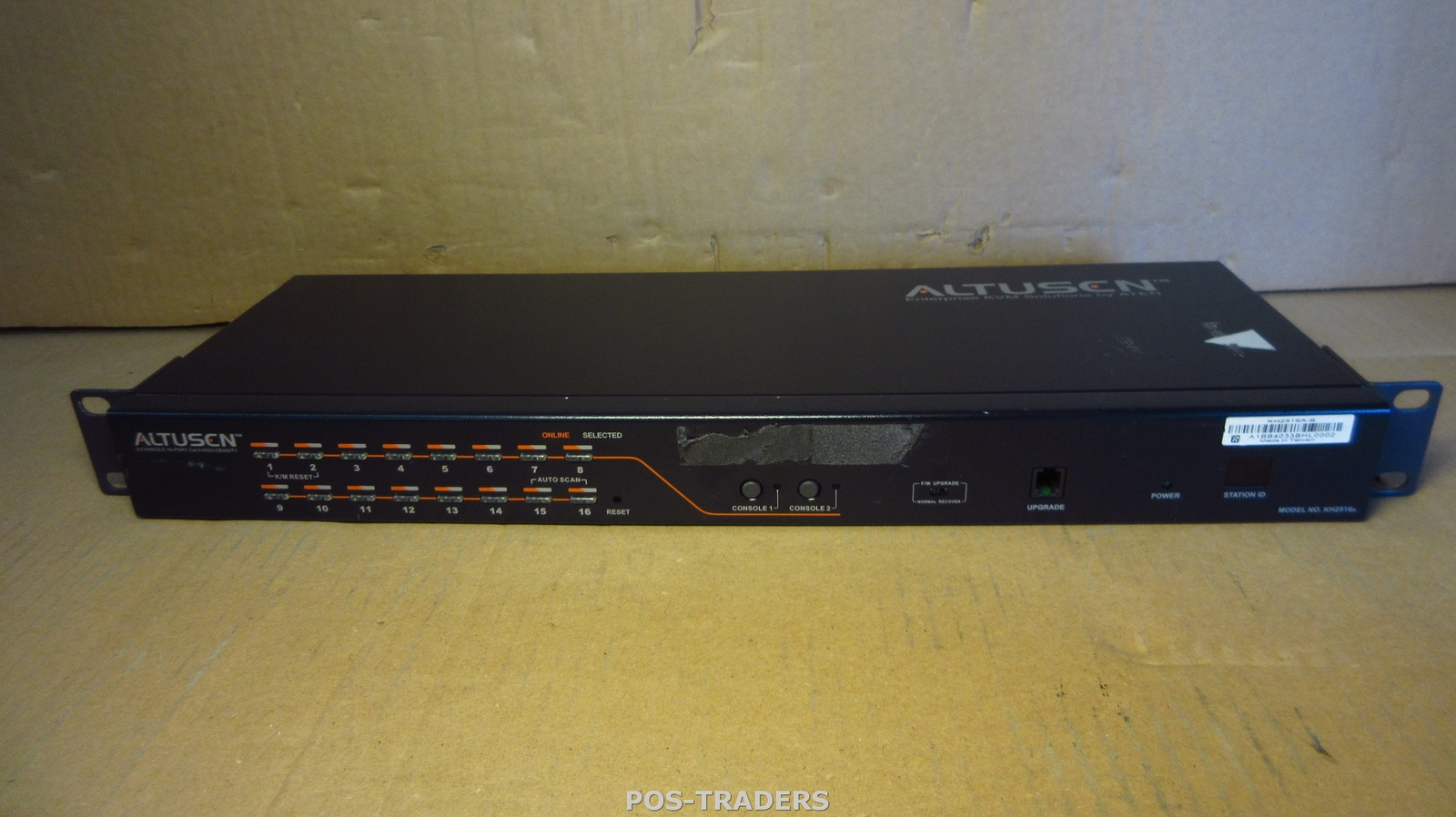

See photos for actual item!
Price is for 1 item.
Features of KH2516A:
- Two KVM consoles independently and simultaneously control up to 16 directly connected computers
- By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
- Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
- OSD Backup/Restore feature – enables the administrator to back up the switch’s configuration and user profile information
- Configure port access rights for users on a port – by – port basis
- Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiplatform support – PC, Mac, Sun, and serial
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
Computer ConnectionsDirect16Maximum256 (via Daisy-chain)Port SelectionOSD, Hotkey, PushbuttonConnectorsConsole Ports4 x USB Type A Female
2 x 6-pin Mini-DIN Female (Purple)
2 x 6-pin Mini-DIN Female (Green)
2 x HDB-15 Female (Blue)KVM Ports16 x RJ-45 FemaleDaisy Chain Ports1 x DB-25 Female (Black)
1 x DB-25 Male (Black)Firmware Upgrade1 x RJ-11 FemalePower1 x IEC 60320/C14SwitchesPort Selection16 x PushbuttonConsole Selection2 x PushbuttonReset1 x Semi-recessed PushbuttonFirmware Upgrade1 x SlidePower1 x RockerLEDsOnline16 (Green)Selected16 (Orange)Console2 (Orange)Power1 (Blue)Station ID1 x 7-segment LED display (Orange)EmulationKeyboard / MousePS/2; USBScan Interval1-255 SecondsVideo1920 x 1200 @ 60 Hz (30 m);
1600 x 1200 @ 60 Hz (40 m);
1280 x 1024 @ 75 Hz (50 m)Maximum Input Power Rating100–240 VAC; 50/60 Hz; 1APower ConsumptionAC110V:9.7W:63BTU
(17.21 x 6.13 x 1.73 in.)NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
