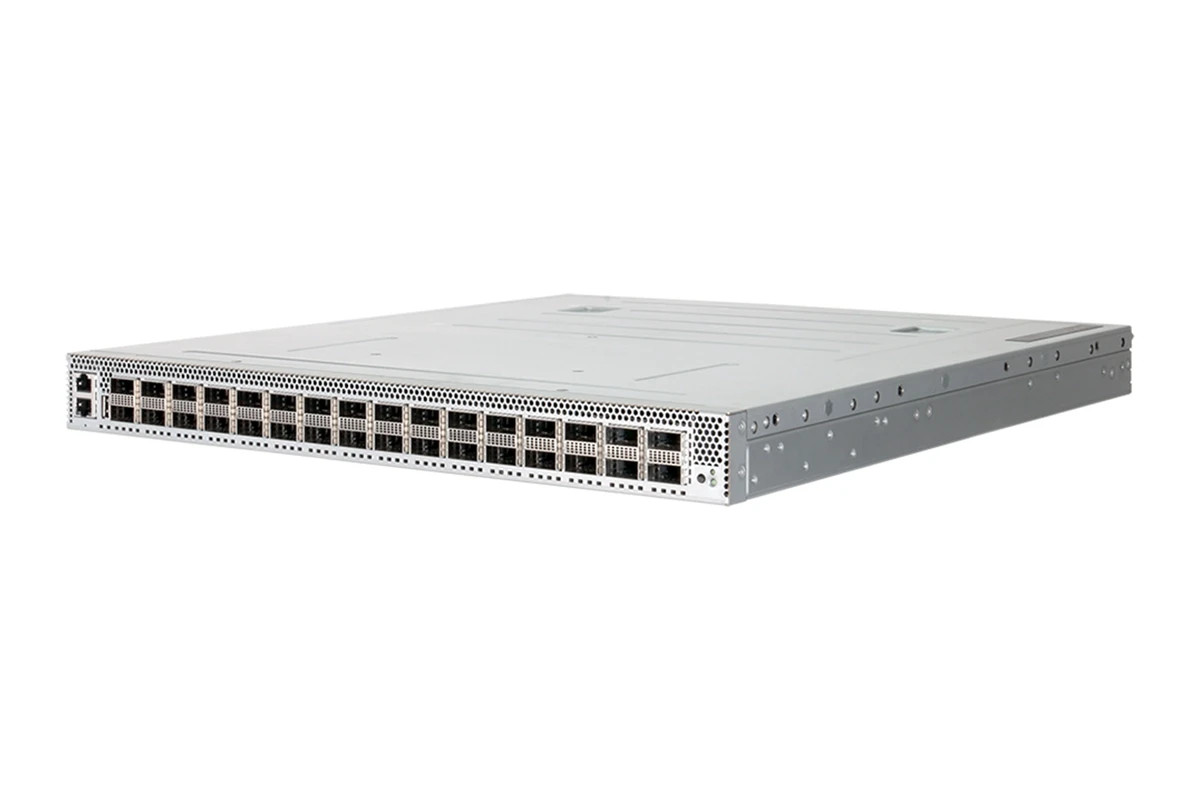

AU SELLEREdgecore SWITCH DCS810 AS9516-32D 32x400G QSFP-DD. FULLY WORKING PROTOTYPE SKIN ONLY, NEEDS FANS AND PSU/S. EOL WAS 1/1/26 MAKE FOR A VERY HANDY BACK UP SKIN AT SUPER CHEAP PRICING. ALL IN EXCELLENT CLEANROOM CONDITION.

1 SWITCH PER sale.

MOST OF OUR STOCK THAT ISBEING REDIRECTED AND REPORPOSED IS FROM THE EDUCATION DEPT SCHOOLS ANDUNIVERSITIES, LOCAL COUNCILS, DEFENSE DEPT AND PRIVATE INDUSTRY. WE THANK YOUALL FOR BEING PART OF THIS GREEN INITIATIVE.

Description

Edgecore DCS810 is a high-performance 400G QSFP-DD switch designed for advanced data center and cloud environments that require ultra-high bandwidth, programmable forwarding, and flexible open networking support. With 32 ports, it is well suited for spine, aggregation, and high-capacity interconnect deployments where dense 400G connectivity and adaptable packet processing are essential. Built on Intel Tofino II 128Q switching silicon and powered by an Intel® Pentium® D-1517 CPU with 8 GB SO-DIMM memory, 16MB flash memory, and 128GB M.2 optional storage, the platform provides a strong hardware foundation for demanding programmable network infrastructures.

With a switching capacity of 12.8 Tbps, a forwarding rate of 5.99 Bpps, a 64MB packet buffer, and programmable support for IPv4 routes, IPv6 routes, and MAC addresses, the 9516-32D is designed for efficient and highly flexible traffic handling in modern high-speed environments. It supports SONiC Distribution by Edgecore, while ONIE compatibility enables flexible deployment of supported network operating systems. For dependable operation, the switch features Front-to-Back airflow, a 1U form factor, 6 fan modules with 5+1 redundancy, and 2 x AC PSU with 1+1 power redundancy. With a maximum power consumption of 1035W, an operating temperature range of 0°C to 40°C, and a non-PoE design, Edgecore 9516-32D is a practical choice for scalable and programmable high-speed network deployments.

SpecificationGeneral SpecificationsBrand

Edgecore Networks

Data Rate

400G QSFP-DD

Ports

32 Ports

Internal HardwareCPU

Intel® Pentium® D-1517

DRAM

8 GB SO-DIM

Flash Memory

16MB

Option Storage

128GB m.2

Switch Silicon

Intel® Tofino™ II 128Q

BMC Chip

Not specified

PerformanceForwarding Rate

5.99 Bpps

IPv4 Routes

Programmable

IPv6 Routes

Programmable

Jumbo Frame

9K

MAC Address

Programmable

Packet Buffer

64MB

Switching Capacity

12.8 Tbps

Physical CharacteristicsAirflow

F – Front-to-Back

Chassis Height

1U

Dimensions (HxWxD)

44 x 440 x 507 mm (1.73 x 17.32 x 19.97 in)

Fan Module

6 (5 + 1 Redundancy)

Weight

10 kg (20.05 lb)

Software & CompatibilityCompatible Operating System

SONiC Distribution by Edgecore

ONIE

Yes

Power CharacteristicsMax Power Consumption

1035W

Power Supply

2 x AC PSU

Power Module

2 (1+1 Redundancy)

EnvironmentalOperating Temperature

0°C to 40°C (32°F to 104°F)

PoE InformationPoE

Non-PoE

·
