🤖Multi-Mode Flexibility: Offers a range of modes, including Mesh, AP, Router, Repeater, and AP+Repeater, to cater to diverse needs and
outdoor connection scenarios, ensuring a tailored solution for every user.

🌐Long-Range Wireless Connectivity: Reach unprecedented distances with our outdoor router's 3km/1.9mile wireless data
transmission capability, perfect for long-range applications such as wireless backhaul, surveillance, and remote monitoring
(supports paired PtP or PtMP transmission).

Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.

In the Box

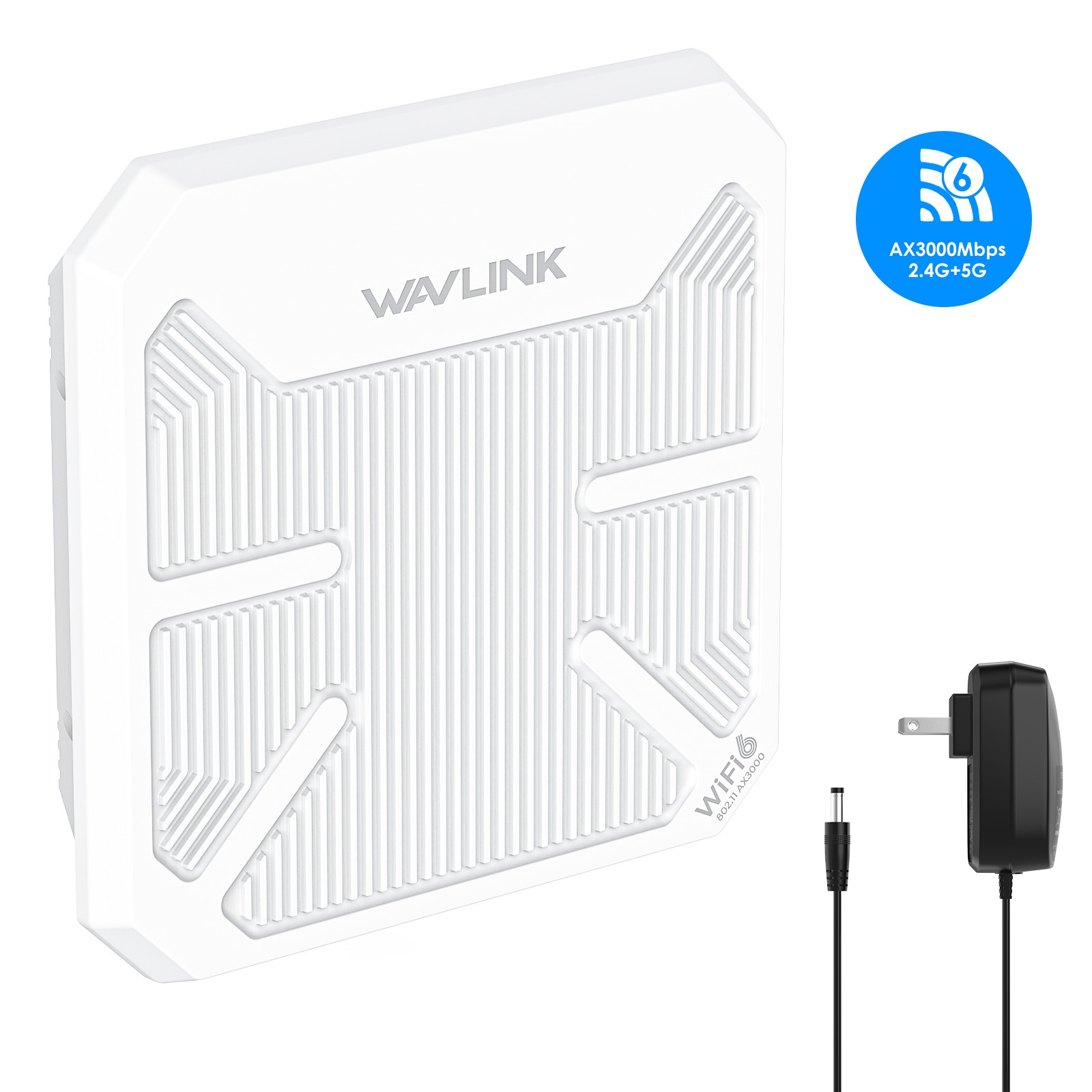

- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs

AX3000/8dBi Omni Antennas

Built for the Great Outdoors

Weather-resistant and durable, our outdoor WiFi router repeater features an IP67 waterproof enclosure, 15kV ESD protection,
and 6kV lightning protection. The fiberglass tube high-gain antennas boost WiFi coverage, making it perfect for outdoor use.

Unbeatable WiFi 6 Speed

Experience the latest in WiFi technology with our router, supporting dual-band speeds of up to 5GHz 2402Mbps and 2.4GHz 573Mbps.
Say goodbye to wireless interference and congestion, and enjoy lightning-fast internet speed for smooth gaming, HD videos, and more.

Easy Installation, No Power Outlet Required

Our router supports 802.3AF/AT active PoE and passive PoE, allowing you to transfer data and charge the device with a single Ethernet cable.
Perfect for outdoor installations where power outlets are not available. （Note: The PoE converter is not waterproof.
Please use CAT5E or above cable and the length should not exceed 100m/328ft. ）

Seamless WiFi Roaming, No Dead Zones

Our 4x8dBi omnidirectional antennas and high-power amplifiers provide extreme WiFi coverage and penetration.
With Mesh technology, you can enjoy seamless WiFi with a single network name and password, and expand your
WiFi coverage to every corner of your outdoor space.

Multiple Modes, Flexible Use

Our router supports various modes, including Mesh, AP, Router, Repeater, AP+Repeater, and more. Whether you need to convert
wired connections to wireless networks or enjoy seamless WiFi with a single network name and password, our router has got you covered.

Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.

In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable

AX3000/7dBi Omni Antennas/6 Antennas

Designed for Harsh Outdoor Conditions- IP67-rated waterproof housing that ensures continued operation on harsh
outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatheproof
design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.

Blazing-Fast WiFi 6 Speeds - Next-Gen Connectivity- The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards.
Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference
& congestion and offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos,
smooth gaming, etc. even outdoors.

Seamless WiFi Roaming - Eliminate Dead Zones for Good- The 6x7dBi omni-directional antennas and high-power amplifiers
provide extreme WiFi coverageand penetration. Also supports Everything Mesh technology,
one-click brings more device connections, greatly expanding theWiFi coverage, and eliminating every network dead zone.

Versatile 5-in-1 Modes and More for Every Need- Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different
needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless
networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Powered by PoE and Flexible Installation- Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter,
this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.

Specification
- Model: WL-WN588HX3
- Product Size: 17x17.3x5.1cm/6.7x6.8x2in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g/19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6x 7dBi omni-directional antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- 3x7dBi 5GHz, 3x7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④The real performance of the product may vary in accordance with different environmental conditions.

In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 x 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide
