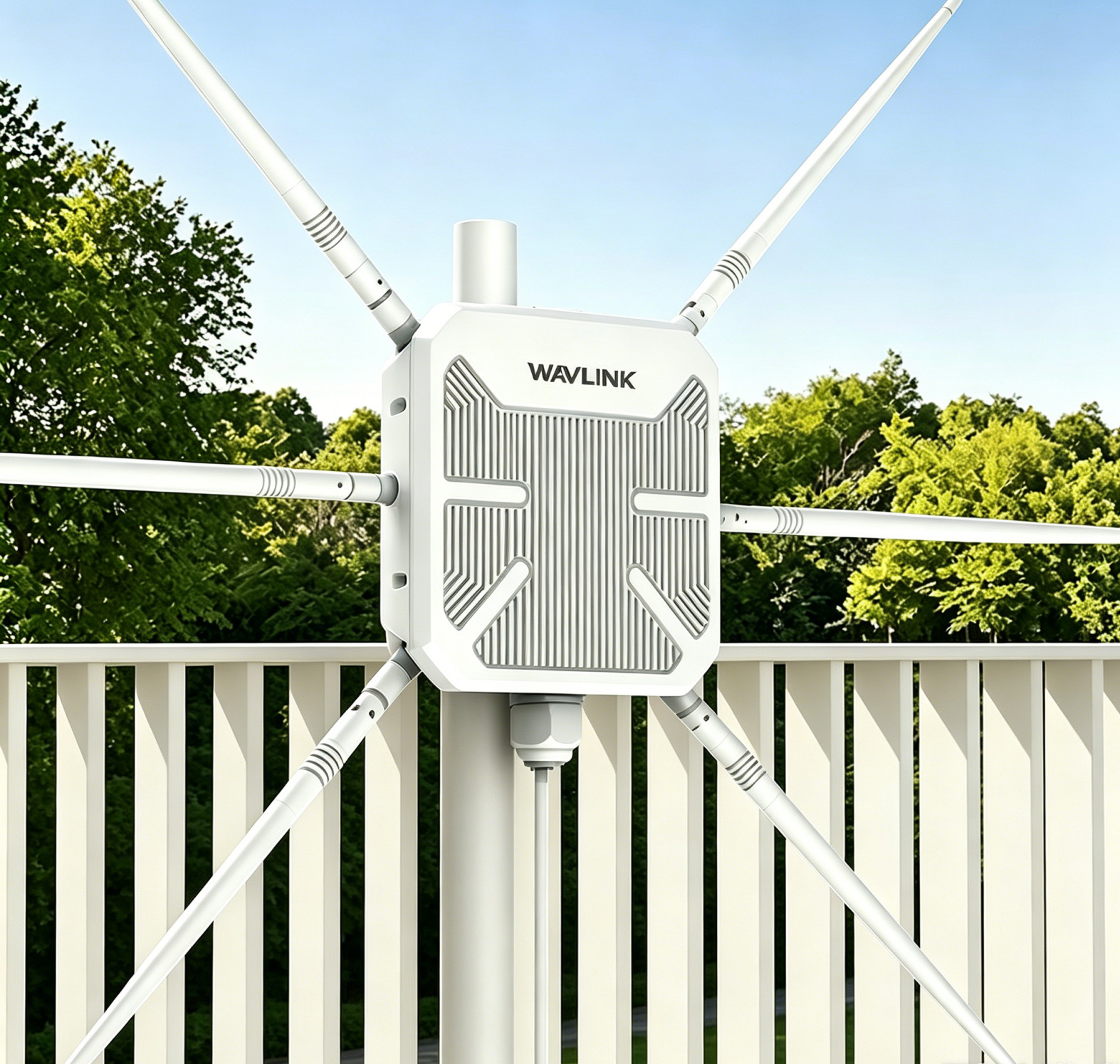

AX3000 Outdoor WiFi 6 Extender - Featuring 6x7dBi omnidirectional antennas and 2 built-in amplifiers.
Supports dual-band max speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps (3000Mbps).
This device enhances WiFi coverage and penetration outdoors. It also supports Mesh technology,
enabling one-click connection of more devices to effectively expand WiFi coverage

Massive Whole-Property Coverage & Zero-Lag Seamless Roaming- Equipped with six high-gain 7dBi antennas
and powerful amplifiers, this router delivers exceptional signal strength that pushes WiFi well beyond your walls
and across your backyard, patio, pool area, workshop, or farm outbuildings.
For thick concrete or brick walls, strategic placement near a window or exterior wall is recommended for
optimal performance. Advanced seamless roaming automatically hands off your connection as you move from
house to garage or garden shed – no manual switching, no dropped video calls.
Need more coverage? One-click Mesh pairing lets you add units to tackle larger properties or
dense obstacles – no IT skills required. Scale as your needs grow.

4 Modes in 1 Device – One Router Fits Every Outdoor Need - No more guessing which device to buy.
This outdoor router supports Mesh, AP, Router, and Repeater modes –giving you the flexibility to adapt to any situation:
Mesh Mode – Seamless whole-yard WiFi with one network name. Walk from your house to the backyard, garage,
or workshop without dropping the connection or switching networks. Router/AP Mode – Turn a wired Ethernet
connection into a powerful WiFi signal. Perfect for extending internet to outdoor areas where WiFi doesn’t reach.
Repeater Mode – Boost and rebroadcast an existing wireless signal to cover dead zones in large properties,
farms, or warehouses. Buy once, use everywhere – whether you’re setting up WiFi for a backyard patio, a construction site,
an RV park, or a remote workshop, this single device does it all. Switch modes in minutes via
the web interface – no extra hardware needed.

PoE Powered & Tool-Free Installation – No Electrician Required - Supports 802.3af/802.3at/48V PoE (Power over Ethernet) –
power and data transmit through a single Ethernet cable, eliminating the need for a nearby power outlet.
Comes with a sturdy mounting bracket for quick pole or wall mounting. Perfect for backyards, garages, farms,
warehouses, or any outdoor area where running power is difficult or expensive. Get your network up and running in minutes –
just connect one cable, mount, and go.

How to Install the Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable
is CAT5E or above certified and shorter than 100m/328ft.

573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability.
2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

Access More Devices
Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories,
communities, streets, and more.

Worry-Free WiFi Coverage
Enhanced by built-in high-power amplifiers and 6x7dBi omni-directional antennas to extend outdoor signal coverage up to 300m(984ft).

Specification
- Model: WL-WN588HX3
- Product Size: 17x17.3x5.1cm/6.7x6.8x2in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g/19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6 x 7dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④The real performance of the product may vary in accordance with different environmental conditions.

In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 x 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide
