Ableconn IIDE-MSAT mSATA to 2.5-Inch IDE Adapter Converter with Aluminum Fram...
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Ableconn IIDE-MSAT mSATA to 2.5-Inch IDE Adapter Converter with Aluminum Fram...
Price: US $69.80

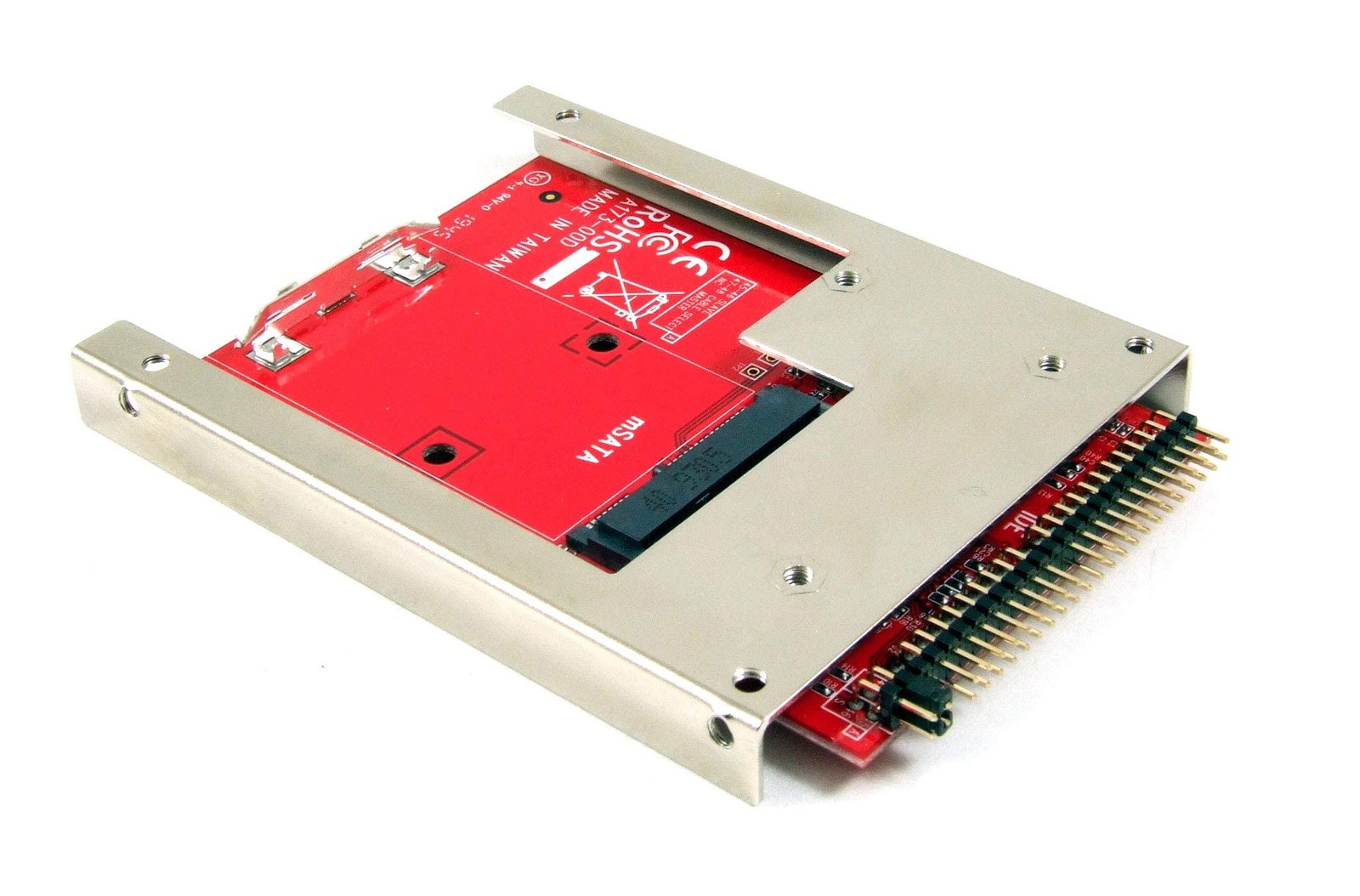

Ableconn IIDE-MSAT mSATA to 2.5-Inch IDE Adapter Converter with Aluminum Frame Bracket - Latch and Retain mSATA SSD as 9.5mm 2.5" IDE SSD Drive
  • Convert a full size mSATA SSD into a standard 9.5mm high 44-pin 2.5" IDE SSD drive.
  • Open frame aluminum housing dessign provides excellent heat dissipation for mSATA SSD
  • Compatible with most mSATA solid state drives such as the SAMSUNG 840/850 EVO
  • OS independent; No driver installation required. Native support in Windows, Mac and Linux.
  • Fully RoHS compliant. High quality product. Made in Taiwan.

The Ableconn IIDE-MSAT let you convert an mSATA SSD into a standard 9.5mm high 2.5” IDE SSD drive. It provides excellent heat dissipation for mSATA SSD drive with the open aluminum frame design.

Specification
* Connector:
- 1 x mSATA (52-pin, Mini SATA) Receptale
- 1 x IDE (44-pin, PATA) Male

* Chipset: Marvell 88SA8052
* Data transfer rate:
- Up to 150 MB/s

* Jumper Selection:
- 1 x jumper for selection of Master/Slave/Cable Select modes

* Software:
- OS independent; No driver installation required
- Support Windows, Macs, and Linux

* Convert Full Size mSATA SSD to High Performance, No Noise, Low Power 44Pin 2.5” IDE SSD
* Supports SATA I, SATA II and SATA III (6Gbps) mSATA SSD
* Latch type mSATA connector on board, no need the screw to retain mSATA SSD
* 100% Compatible with 2.5” IDE drive mechanical spec
* 48 bits LBA can Break Capacity-Limit to Support mSATA SSD max 144,115,188GB
* Compliant with Serial ATA 2.6
* Jumper setting support IDE Master, Slave and Cable Select Modes
* Tag Command Queuing (Max 32 entries)
* ATA/ATAPI PIO mode data transfer
* ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
* ATA/ATAPI-7 Streaming feature set
* Includes 9.5mm height 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
* Dimension of PCBA with 2.5” frame : 98mm x 69.85mm x 9.5mm
* Fully RoHS compliant
* Made in Taiwan

Package Contents
* Ableconn IIDE-MSAT mSATA SSD to 2.5in SATA Drive Converter
* Mounting screw set (4x drive mount screws)
