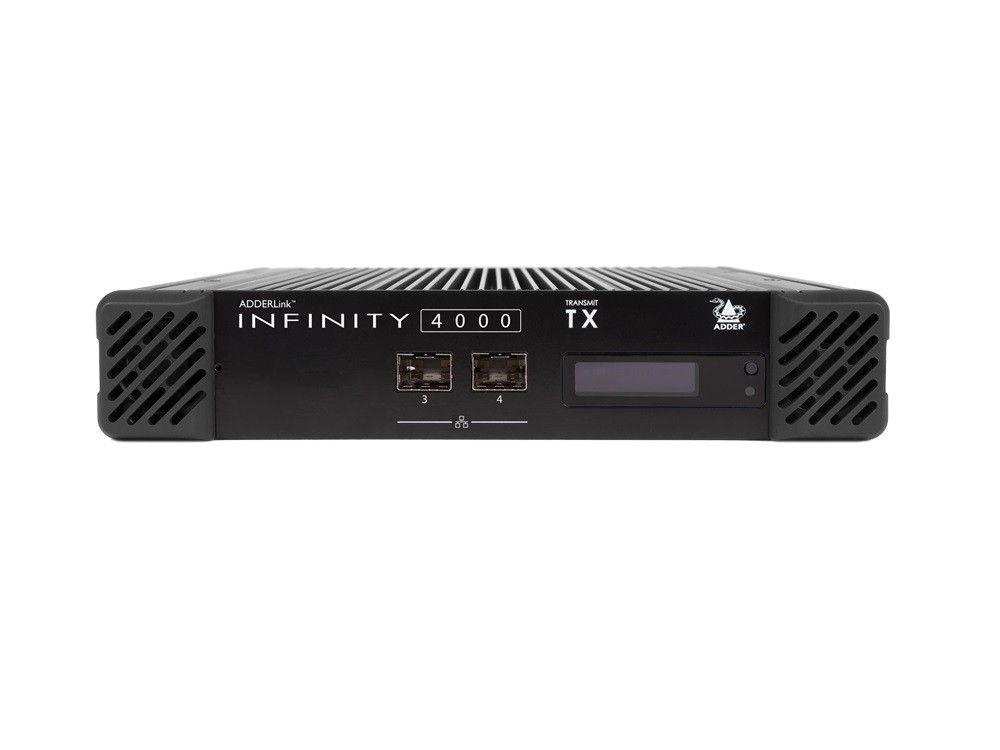

for All Products Adder ALIF4001T-US ADDERLink INFINITY Dual Head 4K 10GbE Transmitter Manufacturer:Adder SKU:ALIF4001T-US Condition:New Warranty:2 Years
The ADDERLink INFINITY 4000 Series (ALIF4000) is the world’s first dual-head, 5K high performance IP KVM matrix over a single fiber. Fully compatible with the existing ADDERLink INFINITY (ALIF) range, and supported by the ADDERLink INFINITY Manager (AIM), the ALIF4001 can be used as a point-to-point extender or easily integrated into a wider matrix system.
Features:
Dual-head 5K screens over a single link
The ADDERLink INFINITY 4001 (ALIF4001)can deliver two 5K screens over a single link.
10-bit per colour and HDR10
Allows greater color depth, supports both SDR10 and HDR10
Multigigabit Ethernet support
Multirate (1/2.5/5/10) GbE support enables premium video performance over standard CAT6 cable up to 100m
Enhanced resiliency
Dual-multirate ports can be teamed together for enhanced resiliency or improved video capability.?
Support for 5K resolutions
5K video resolutions supported for high resolution and ultra-wide video applications (5120x1440 at 60Hz or 5120x2880 at 30Hz).
High frame rate support
Refresh rates up to 240Hz supported for HD video resolutions.
High speed USB2.0
Supports transparent USB communication up to 480Mbps for those using mass storage devices, mouse and keyboard, graphics tablets, jog shuttles, joysticks and 3D explorers.
Perfect digital video
Using‑the same encoding system as the other products in the ADDERLink INFINITY (ALIF) range, the digital video is spatially lossless, with 1:1 pixel mapping, ensuring that the digital video you receive is the same as the one leaving your remote computer.
Backwards compatibility
The ALIF4001 can integrate seamlessly into your existing ADDERLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints.
Isochronous Communication
Plug and play support for USB devices and third-party tools, such as Blackmagic®Design DaVinci Resolve® Color Grading Panels.
Audio capability
Multi-channel digital audio, via DisplayPort™, provides a high-quality immersive sound experience.
Onboard diagnostics tool?
Diagnostics tool maximizes uptime and assists with technical support enquiries by allowing the customer to troubleshoot network issues directly from the unit.
Flexible and scalable
Each ALIF4001 unit can be configured as a simple extender or distributed KVM switch. Each receiver can see up to 16 sources or can be connected to the ADDERLink INFINITY Manager (AIM) to create a larger and more fully featured resolution
- Supports resolutions up to 5120x2880 including UHD or DCI and refresh rates up to 240Hz
- Up to 10-bit per color SDR and HDR10
Audio
- Analog Line in/out 2 channel 16bit at 48KHz 1V RMS in/1V RMS out
- 2x DP Audio in either 2, 6 or 8 channels linear PCM
USB
- 4 ports of USB2.0 with Adder’s USB True Emulation to support keyboard, mouse and touch
- One port of transparent Hi-Speed USB2.0
- USB device seen as: 7 or 13 port hub
Ethernet
- 2x 10GbE or 2x 1GbE (no 10/100 support) via SFP or:
- 2x 10,5,2.5GbE and when using SFP-CATX-MR SFP
Connections
Local Unit - Transmitter (TX)
- Computer: 2x DisplayPort™, 2x USB type B, 2x 3.5mm audio jack sockets, 1x DB9 socket
- Ethernet: 2x SFP+ cages
- Power: 3 pin Kycon socket
Remote Unit - Receiver (RX)
- Desk: 2x DisplayPort™, 5x USB type A, 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket
- Ethernet: 2x SFP+ cages
- Power: 3 pin Kycon socket
Physical Dimensions
- (L)210mm /8.3” x (W)215mm/8.5” x (D)40mm/1.6”
- Weight: 1.8kg/4lbs
Materials
- Aluminum and steel construction
Power
- External power: 12VDC, 5A
- Typical power consumption: 20W
Operating temperature
- Operating temperature: 0 to 40°C/32 to 104°F
- Storage temperature: 0 to 40°C/32 to 104°F
- Storage and operating relative humidity: 10-90% non-condensing
- Altitude: < 2000m
Packing Box
- Dimensions: (L)285mm/11.2” x (W)245mm/9.6” x (D)145mm/5.7”
- Weight: 2.5kg/5.5lb
Approvals
- UKCA, CE and FCC: See the compliance web page for the full list
Mean Time Between Failure
- ALIF4001T 159,000 hrs
- ALIF4001R 165,000 hrs
- Telcordia SR332 Issue 4 March 2016. Calculated at 55°C
Cable types recommendations
See manual
Cable length rules
See manual
