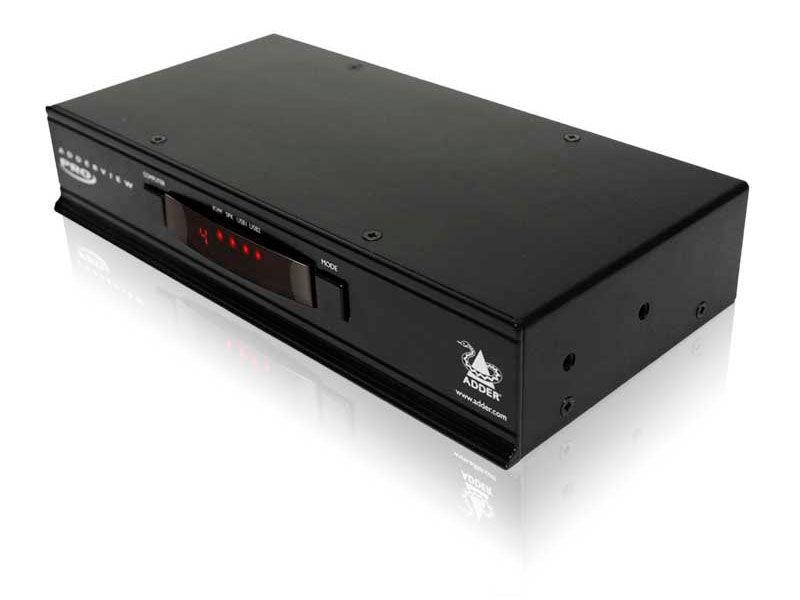

for All Products Adder AV4PRO-DVI-US 4-Port DVI KVM Switcher / USB True Emulation / Dual-Link DVI-I / 5MP 60Hz Manufacturer:Adder SKU:AV4PRO-DVI-US Condition:New Warranty:2 Years
The AV4PRO-DVI is a professional 4-port DVI KVM switcher that enables a single KVM console to control up to four computers. It provides high-resolution dual-link DVI-I video support and continuous USB HID emulation for instant, reliable switching. The unit is designed for environments that require precise video and full USB peripheral support.
Key features include Adder True Emulation USB 2.0 technology, two independently switchable USB 2.0 channels, and an integrated audio channel. The switch supports dual-link DVI-I connections for both digital and analogue video sources and maintains extended DDC EDID to keep graphics cards optimized. Channel selection is possible by keyboard hotkeys, three-button mice, front panel controls, or the optional RC4 remote.
Performance supports resolutions up to 5 megapixels per head and video refresh suitable for 4MP at 60Hz, including common formats such as 2048 x 1080 and 2560 x 1600. The dual-link DVI-I interface supports very high-resolution workflows and the extended DDC EDID preserves display timing and capabilities. USB True Emulation preserves the native features of keyboards and mice so extra keys and advanced HID devices remain available to connected systems.
Connectivity includes USB2.0 type B computer ports, dual-link DVI-I video connections, two switched USB type A ports for local keyboard/mouse, two additional USB2.0 type A ports, a 3.5mm stereo jack for audio, and an Options port for ASCII control, synchronization and firmware upgrades. The Options port supports modular 10P10C cabling for flash upgrades and sync with other units or RS232 triggered power switches. Broad software and hardware compatibility covers major platforms and operating systems.
Typical applications include post production, medical imaging, CAD and architecture, animation workstations and multi-system control rooms where high-resolution video and advanced USB devices are required. The AV4PRO-DVI enables workflows where a console is used for one system while peripherals or audio remain connected to other systems. The device supports specialised input devices such as tablets, 3D controllers and non-standard HID hardware.
Installation and maintenance are straightforward thanks to a 1U metal chassis, universal power adapter and simple front-panel controls. Firmware can be updated via the Options port to extend the product lifespan and keep compatibility current. The unit is CE and FCC approved and is engineered for continuous professional use.
Specifications:
Hardware compatibilityPC, RS/6000, Alpha, SGI, Sun, Apple, USB keyboard and mouse, VGA or DVI video interfacesSoftware compatibilityWindows, DOS, Linux, Unix, BSD, Sun OS, Mac OS, NetWareComputer connections at switchUSB2.0 type B, Dual-link DVI-I, 3.5mm stereo jackResolutionUp to 5MP per head, example 2560x1920Local KVM console connection VideoDual-link DVI-IKeyboard/Mouse2 x USB type A switchedUSB2 x USB2.0 type ASwitched USBUSB 2.0 low speed, full speed, high speedUSB True EmulationEmulates keyboard and mouse on each port, supports low speed HIDAudio3.5mm stereo jackOther ConnectionsOptions port modular 10P10CPhysical design1U metal case, 233mm W, 115mm D, 44mm HPower2.5mm DC jack, power adapter included, 100-240VAC 50/60Hz input, 5VDC 2A outputOperating temperature0 to 40 deg C, 32 to 104 deg FApprovalsCE, FCCOrder codesAV4PRO-DVI-XX, XX=UK, US, EURO, AUS OUR PERKS Great Prices and
