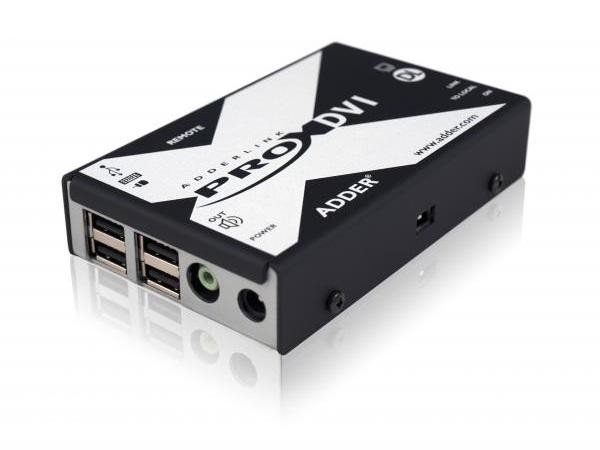

for All Products Adder X-DVIPRO-DL-US Dual link DVI/USB Extender (Transmitter/Receiver) Set over a Single CATx Cable Manufacturer:Adder SKU:X-DVIPRO-DL-US Condition:New Warranty:2 Years
ADDERLink X-DVI PRO DL is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, whilst maintaining the same user experience. It can transmit a dual link video stream, USB 2.0 and analog audio over a single CATx cable.
Features
- Plug and play,
- 50 meter extension distance,
- 2560 x 1600 at 60Hz maximum resolution,
- USB 2.0 Low and Full speed,
- Keyboard, mouse, tablet and touch screen.
Dual Link resolutions, Real Time Control
The X-DVI PRO DL allows you to remote your monitor with resolutions up to 2560x1600 at 60Hz up to 50 meters away from your computer. Using a visually lossless technique, no visible artefacts or latency are introduced allowing you to be certain of quality and control.
50 meters over a single CATx cable
Video, USB 2.0 (low and full speed) and audio pass along a single cable, providing up to 50 meters of extension.Distance is dependent upon video resolution, CATx cable type and the number of connection breaks for patch panels and wall plates. See datasheet for details.
USB 2.0
Enables connection of any human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12 Mbps) isochronous devices are also supported.
Power efficiency
The X-DVI PRO DL extender is designed to be highly power efficient and consumes <6 watts per point.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
The AdderLink X-DVI PRO DL extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.
Analog Audio
Stereo CD quality (stereo channel 16 bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well. The AdderLink X-DVI PRO DL is no exception and features tough, yet lightweight metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their high performance characteristics.
Specifications:
Hardware compatibility
All computers with DVI-D, USB and Audio - requirement dependent.
DVI-D Interface - digital only
The system supports resolutions to a maximum of 2560x1600 at 60Hz.
USB 2.0 Low and full Speed
Transparent USB 2.0 (full and low speed) that supports HID, isochronous and mass storage devices to a maximum of 50 meters. Reduce maximum cable length by 5 meters if a USB hub in connected to the receiver unit.
Audio
The system delivers analog stereo audio (Line Out).
Software compatibility
All known operating systems.
Computer connections Transmitter (TX)
DVI-D, Audio 3.5mm in, USB type B.
Computer connections Receiver (RX)
DVI-D, Audio 3.5mm out, USB type A x 4.
Physical design
Compact case, robust metal construction 120mm/4.7" (w) x 75mm/3" (d) x 26mm/1" (h) 320g/0.7lb.
Power
2.5mm DC jack (power adaptor included), 100-240VAC 50/60Hz, 0.4A, input to power adaptor, 5VDC 12.5W output from power adaptor.
Operating temperature
0 to 40°C / 32 to 104°F.
Approvals
CE, FCC.
Important extension distance details
Recommended cables are CAT7 shielded foiled twisted pairs:
Daetwyler 7702Flexible patch cable Daetwyler 7120Bulk cable
Category 5e (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
