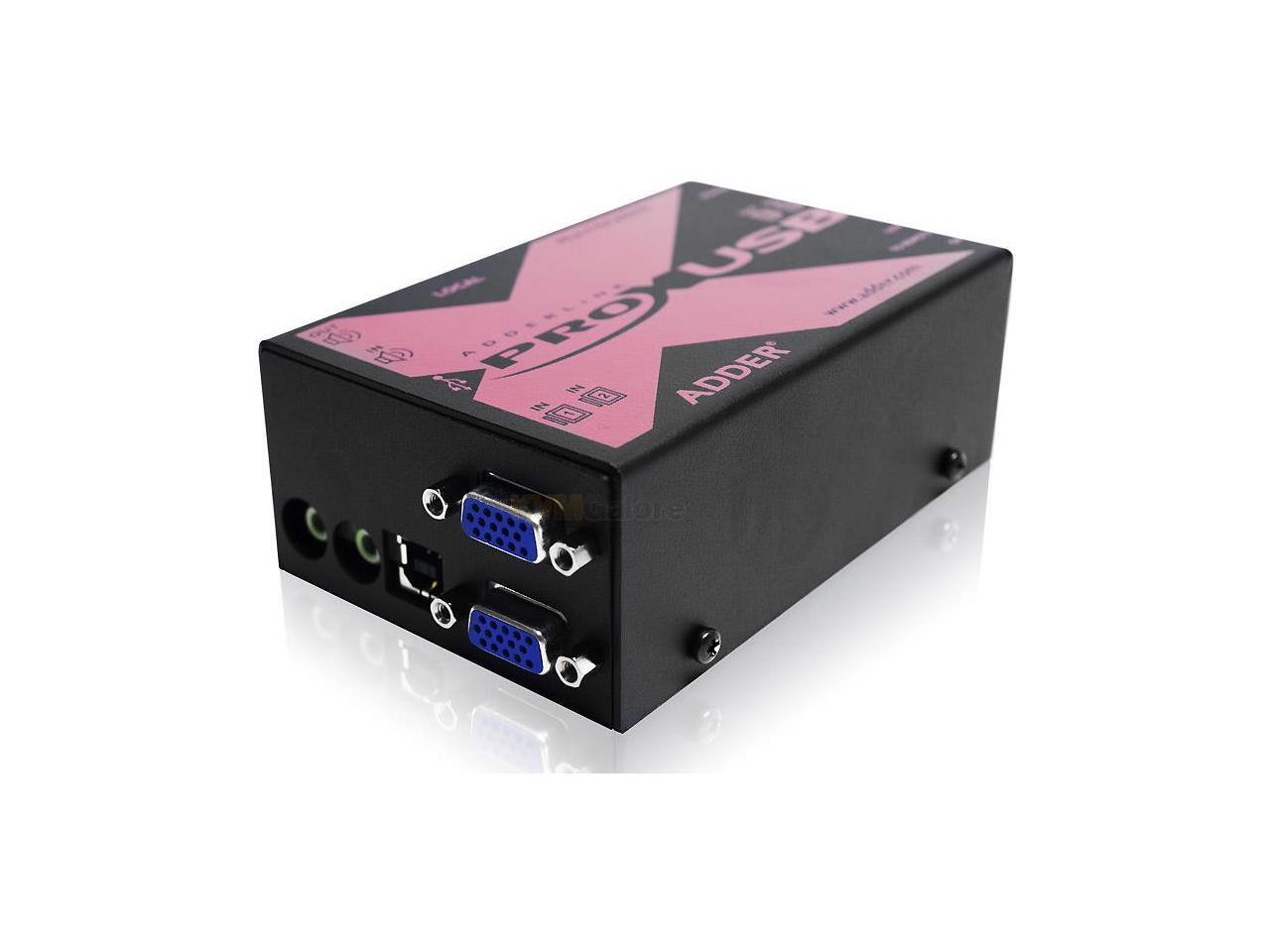

Second generation analogue KVMA extender for multi monitor desktops. Adder's next generation USB, video and audio extender delivers sharp, bright and high resolution video images and high quality audio for multi screen desktops at distances up to 300m (1000ft) over CATx cables. The AdderLink X-USB PRO MS has been designed to provide industry leading video clarity, compatibility and high rack densities. Features: Dual Head VGA, Audio and 4-port USB hub (full speed) extender to 300 meters over two CATx cables. Precision Video: VGA resolutions of 1920 x 1200 are achievable at 300 meters (1000ft).This is achieved by including a variable noise filter which overcomes issues introduced by increased gain as the length of the cable increases over 200 meters. Video Compensation: A Multi-pole compensation technique is used to enable superb video quality at maximum distance over a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the receivers keyboard. Local Feed Through Port: A local feed through port is provided for audio and video so a local console can be used. Emulated Two Page DDC EDID: This extender supports full two page DDC EDID. Some high performance video cards require the two page data or they will not deliver optimal performance. USB Support: The X-USB extends USB 2.0 (low and full speed) allowing all USB compatible accessories (including isochronous devices) to be extended. The receiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other device that would normally be plugged into your computers USB port. CD Quality Audio Extension: 2 channel 16 bit audio sampled at 44.1KHz (CD quality) is transferred from local to remote for a line out / speakers use case Dual User Configuration: Two X-USB PRO units can be linked to a single computer so two users can access the system. When using two sets of X-USB PRO modules to allow two users to access a single computer the arbitration between the users is handled by the USB sub-system of the computer. This means that both users can control the computer at exactly the same time and the resulting keyboard and mouse influences will be an amalgam of the two inputs. Rack Options: Both transmitter and receiver units can be used stand-alone or up to 8 units can be mounted into a 2U chassis. Specifications: Video Resolution: up to1920x 1200at 60Hz Skew Compensation: 62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200) Extension Distance - 200 meters using CAT5 Trunk cable - 250 meters using CAT5e Trunk cable - 300 meters using CAT6 Trunk cable - 300 meters using CAT7 Trunk cable - 200 meters using CAT7a Patch cable Audio (end to end): 2 channel 16 bit Audio @ 44.1 KHz THD+N typically -80dB at 1kHz SNR typically 85dB at 1kHz O/S Compatibility: Operating system independent Connectors (local / remote) - Local: 4 x 15 Pin D Type VGA, 1 x USB B, power jack, 2 x 3.5 mm jack socket and 2 x RJ45 - Remote: 2 x 15 Pin D Type VGA, 4 x USB A, power jack, 3.5mm jack socket and 2 x RJ45 Physical Design: Local: All metal case, 122mm / 4.7 (w) x 75mm / 3(d) x 48mm / 2 (h) 500g / 1.1 lb. Remote: All metal case, 162mm / 6.4 (w) x 75mm / 3(d) x 48mm / 2 (h) 650g / 1.4 lb. Power: 100 - 240VAC, 50/60Hz input - 5V, -12W output for both local and remote Operating Temperature: 0C to 40 / 32F to 104F Approvals: CE, FCC Item Includes: X-USBPRO-MS2 local unit, X-USBPRO-MS2 remote unit, USB (A to B) lead, 2 x video leads (15 way, male to male), 2 x power adapters and power leads, audio lead (3.5mm jacks) fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.
