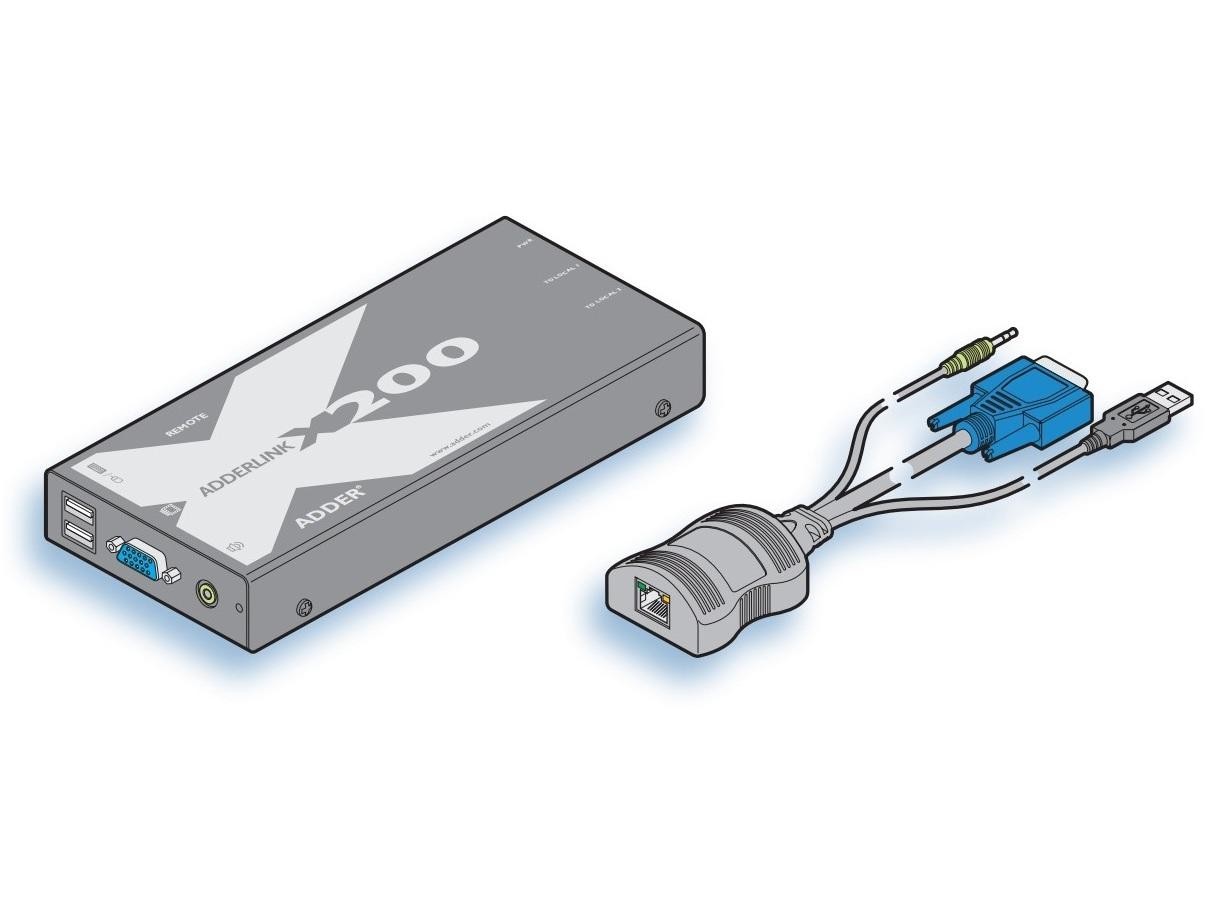

for All Products Adder X200A-USB/P-US KVM/USB Extender (Receiver/Transmitter)Kit with Audio/USB CAM Manufacturer:Adder SKU:X200A-USB/P-US Condition:New Warranty:2 Years
This listing is for X200A-USB/P-US Extender kit only. Use description below as a general reference
ADDERLink X200s have been designed for use in applications where up to two computers can have their keyboard, video, audio and mouse control extended up to 300 m (1000 ft.) across CAT5 or higher UTP cable.
The ADDERLink X200 provides absolute real time keyboard and mouse performance along with hi-definition, hi-resolution video over a VGA interface. The ADDERLink X200 receiver can also be used as a remote user station for the ADDERView CATx range ofKVM switches
Features
Video performance
Industry leading resolutions of: 1920 x 1200 to 50 m (165 ft.) 1600 x 1200 to 200 m (650 ft.) 1280 x 1024 to 300 m (1000 ft.)
Video compensation
The ADDERLink X200 applies 128 steps of signalcompensation enabling fine picture adjustments.
Brightness control
The ADDERLink X200 offers its own brightnesscorrection to ensure images are crisp, clear andbright.
Integrated De-Skew
The ADDERLink X200 AS/R model has integrated skewcorrection with a 300MHz bandwidth (1/4of a pixel movement at 1600 x 1200 resolution). Thisremoves the video skew issues that can be caused by longer CATx cables.
Two port integrated KVM switch
Each receiver is fitted with two ports to enable connectionto a local and remote computer, or two remotecomputers. The user can quickly select between theseports using keyboard hotkeys or mouse control. Individualvideo brightness, compensation and skew settings can beapplied to each connection.
Flexible system configuration
Each receiver may be connected to one or two USB, PS/2or Sun style computer access modules. Furthermore, theX200 receiver unit may be used as the remote user stationfor any ADDER CATx KVM switch.
Emulated DDC
Unless an extender actively supports DDC some wellknownhigh performance video cards cannot be used athigh resolutions. The ADDERLink X200 fully supports DDC.
Digital audio
44.1kHz digital stereo audio delivers high fidelity audio forspeakers.
Specifications:
Video Resolution
1920 x 1200 at distances up to 50 m/165 ft,1600 x 1200 at distances up to 200 m/650 ft,1280 x 1024 at distances up to 300 m/1000 ft.
Extension Distance
Up to 300 m/1000 ft. using CATx cable (x=5,5e,6)
Devices Supported
Supports computers with USB style keyboard and mice, flat-screen andCRT style monitors with standard HDD-15 video connectors and optionalaudio through 3.5 mm audio jack.
O/S Compatability
All known software and operating systems including Windows (all), DOS,Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Connectors (USB CAM)
Video: HDD-15 Optional audio: 3.5 mm jack Keyboard, Mouse: USB type A CATx: RJ45 connector
Connectors (X200 remote unit)
Video: HDD-15 Optional audio: 3.5 mm jack Keyboard, Mouse: USB Type A CATx: 2 x RJ45 connector Power:2.5 mm DC jack
Physical (USB CAM)
Combination of plastic enclosure and cables. Enclosure: 64 mm/2.5 in. x 45 mm/1.8 in. x 25 mm/1 in. Cables: 340 mm/13.4 in. long
Physical (X200 remote unit)
All metal case, 172 mm/6.8 in. x 26 mm/1 in. x 75 mm/3 in. 430 g/1 lb.
Power Supply
100 - 240VAC 50/60Hz (X200 remote unit only)
Order Codes Remote unit only (X200)
X200/R-XX (100 m/330 ft, no audio/de-skew) X200A/R-XX (100 m/330 ft, audio, no de-skew) X200AS/R-XX (300 m/1000 ft, audio/de-skew)
Remote unit (X200) with CAM (computer access module)
X200-USB/P-XX (X200 USB receiver with CATX-USB computer access module) X200A-USB/P-XX (X200A USB receiver with CATX-USBA computer access module) X200AS-USB/P-XX (X200AS USB receiver with CATX-USBA computer access module)
XX= Mains Lead Country Code: UK = United Kingdom US = United States EURO = Europe AUS = Australia
