Two (2) identical units are available. Each computer is individually inspected, tested, documented, and shipped with its own inspection report.

These computers are new old stock (open box). They were opened only for inspection, BIOS update, hardware configuration, Windows installation, and functional testing prior to sale.

Each computer includes a printed inspection report documenting:

• Hardware configuration
• BIOS version
• Storage information
• Windows activation status
• Functional verification

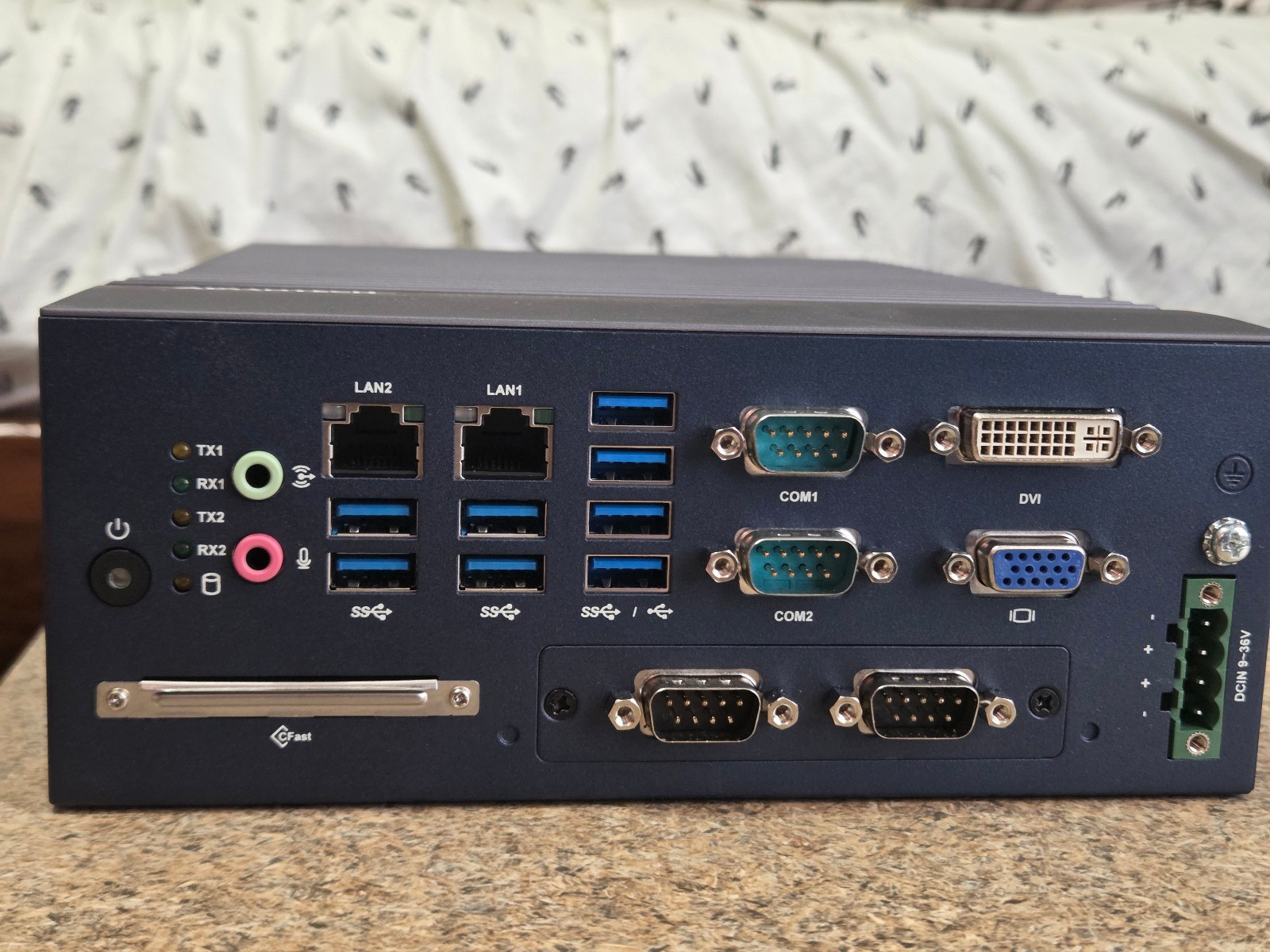

• Model: Advantech MIC-7700Q Fanless Industrial Computer
• Processor: Intel® Core™ i5-7500 (4 Cores, 3.40 GHz)
• Memory: 16 GB Advantech Industrial DDR4 RAM
• Storage:512 GB SATA Solid State Drive (SSD)
• Operating System: Windows 10 IoT Enterprise LTSC (Activated)
• Graphics: Intel® HD Graphics 630
• Video Outputs: VGA and DVI-D (DVI-to-HDMI adapter included)
• Networking:
  • Dual Intel Gigabit Ethernet
  • Intel Dual Band Wireless-AC 7260 (Wi-Fi 5)
  • USB: 8 × USB 3.0
  • Serial Ports:
    • 2 × RS-232/422/485
    • 4 × RS-232
  • Storage Expansion:
    • 1 × 2.5" SATA drive bay
    • 1 × mSATA slot
    • 1 × CFast slot
  • Expansion: Supports Advantech i-Modules
  • Power Input: 9–36 VDC industrial input
  • Included Power Supply: FSP Group FSP150-ABAN2, 150 W (19 V, 7.89 A)
  • Operating Temperature:Specified operating temperature: -10°C to +50°C
  • Protection Rating: IP40 dust-resistant enclosure
  • Cooling: Fanless aluminum heatsink chassis
  • BIOS: Version 4

  Industrial Features

  Designed for demanding industrial applications:

  • Fanless cooling
  • Wide 9–36 VDC power input
  • -10°C to +50°C operating temperature
  • IP40 dust-resistant enclosure
  • Dual Gigabit Ethernet
  • Six serial ports
  • CFast and mSATA storage support
  • Supports Advantech i-Modules

  Operating System

  This system comes with:

  Windows 10 IoT Enterprise LTSC

  • Fresh installation
  • Activated on this individual computer
  • Activation verified
  • Activation status included in the inspection report
  Included

  Each computer includes:

  • Original Advantech box
  • Original Advantech/FSP power supply
  • Original mounting brackets
  • Original mounting screws
  • Two dual-band Wi-Fi antennas
  • DVI-to-HDMI adapter
  • Inspection report
  Power Supply

  Included genuine industrial power supply:

  FSP Group Inc. FSP150-ABAN2

  • Input: 100-240 VAC, 50-60 Hz
  • Output: 19 V DC, 7.89 A
  • 150 Watts

  The inspection report records the serial number of the included power supply.

  Fanless Cooling & Operating Temperature

  The MIC-7700Q is a fanless industrial computer. Unlike a conventional desktop PC, it does not use a CPU cooling fan. Heat from the processor is transferred into the large finned aluminum chassis, which functions as the heatsink.

  Because of this design, the aluminum chassis may become noticeably warm or hot during normal operation, particularly during sustained CPU-intensive workloads. This is normal and expected behavior.The warm heatsink is evidence that heat is being transferred away from the processor exactly as the fanless cooling system is designed to operate.

  The BIOS provides hardware thermal monitoring and protection. Default settings are:

  • CPU warning temperature: 80°C (176°F)
  • CPU throttling point: 100°C (212°F)
  • Automatic ACPI shutdown: 105°C (221°F)

  These values refer to the internal CPU temperature (PECI) rather than the external surface temperature of the chassis.

  For best cooling performance, allow adequate airflow around the cooling fins and do not obstruct the heatsink.

  Windows 11 Compatibility

  This computer does not officially meet Microsoft's Windows 11 hardware requirements.

  • No TPM module installed
  • Intel Core i5-7500 (7th Generation) is not on Microsoft's officially supported Windows 11 processor list

  Windows 11 can be installed...




  Condition

  This unit is new old stock (open box).

  • BIOS update
  • Hardware configuration
  • Windows installation (where applicable)
  • Inspection
  • Functional testing

  It has not been deployed in industrial service.

  Each unit has been individually inspected to verify:

  • Hardware configuration
  • BIOS version
  • SSD health
  • Wireless and Bluetooth operation
  • Windows activation (Windows models)
  • Complete functional operation

  Every unit receives its own inspection report before shipment.
  Unlike many surplus industrial computers, each unit is individually inspected, BIOS updated, documented, and fully tested prior to shipment.Returns:
  30-day returns accepted.
